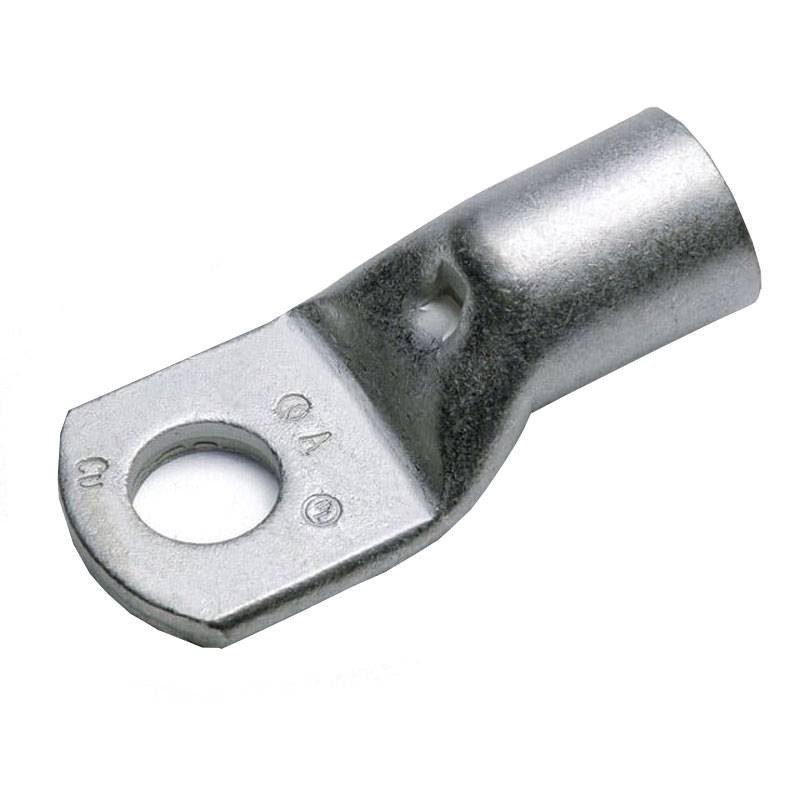

Cembre copper cable terminal lugs 16 mmq diameter 10 mm A3-M10
CEM A3-M10
8016692038162
Cembre copper cable terminal lugs with the following characteristics:
- Nominal cross-section: 16 sq. mm
- Diameter: 10 mm
- Material: copper
- Conductor class: cl. 5 = fine wire
- Angle of connection: Straight
- With viewing hole
- Shape: Annular
Cembre copper cable terminal lugs 16 mmq diameter 10 mm A3-M10
€0.43
€0.43
Tax included
Tax included
Items Available: 3175
: 145
A-M series cable lugs are made from electrolytic copper tubing of a cross-section that provides both a good electrical connection and adequate tensile strength. They are annealed and surface protected by electrolytic tinning. They are made from Cu-OF CW008A electrolytic copper tube according to UNI EN 13600.
The annealing process optimizes the structural characteristics of the material, thus allowing easier compression and guaranteeing the use of the lug under mechanical stresses of various kinds. The collar is provided with a chamfer and inspection hole for easy and correct introduction of the conductor; its length is also such that it can be easily and accurately positioned inside the tool dies.
There are no reviews
Data sheet
- Diameter:
- 10mm
- Type:
- Terminal lugs
- Cross-Section:
- 16mmq
