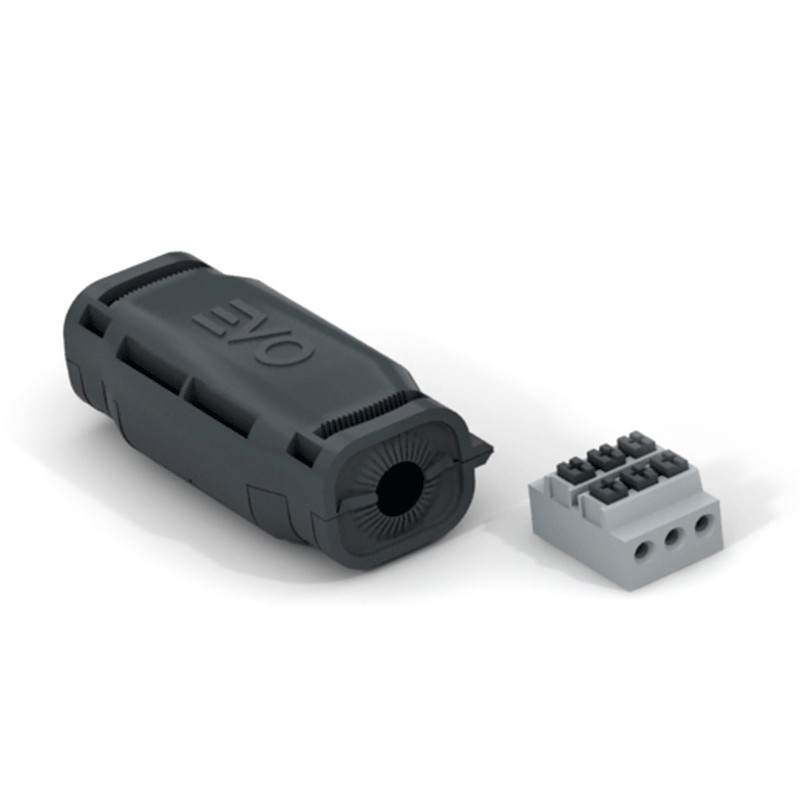

Etelec Evo insulated in-line gel joint IP68 1.5-2.5 EV102
ETL EV102
8053323905486
Etelec Evo insulated in-line gel splice joint IP68 3-pole 1.5-2.5mmq2 for low voltage 0.6/1 kV cables up to three poles.
Laying directly underground, overhead, in conduits.
Even faster and easier installation due to new (improved) fracturable bulkheads and prefilled: no resin or gel to pour.
Etelec Evo insulated in-line gel joint IP68 1.5-2.5 EV102
€10.18
€10.18
Tax included
Tax included
Items Available: 46
: 3
Characteristics:
- Conductor cross-section (min-max): 1.5 2.5 mm2
- Wire diameter (min-max): 10 13 mm
- Kit contents: Pre-filled gel joint, SP series three-pole terminal block, Instructions
- Dimensions Length (L) mm 80 - Width (W) mm 35 - Height (H) mm 28
- In-Line Connection Yes
- Execution In Gel Pre-filled
- Installation conditions Free air, in conduit, buried, underground protected, temporary and permanent immersion
- Number of conductors through cable max 3
- Cable cross-section (min max) (Flexible) mm2 1.5 2.5
- Through cable diameter (min max) mm 10 13
- Connector included Yes
- Connector type included Spring clamp
- Connector Material Steel Chrome plated
- Pre-insulated connector Yes
- Insulation material PA connector
- Insulation voltage kV 0.6/1
- Number of poles 3
- Clamping type Spring clamped
- Copper conductor Yes
- Aluminum conductor Yes
- Copper/aluminum connection Yes
There are no reviews
Data sheet
- Diameter:
- 10/13mm
- Type:
- Connections
- Cross-Section:
- 1.5-2.5mmq
