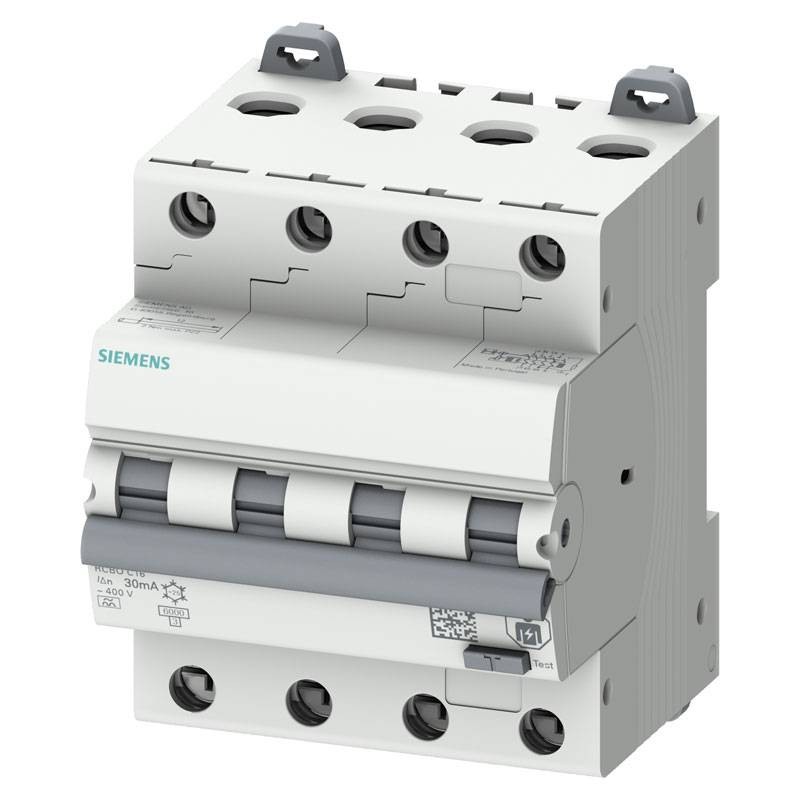

Siemens Residual Current Circuit Breaker 4P 32A 30mA 6kA 4M type A 5SU13467FP32
SIE 5SU13467FP32
4001869578217
Siemens RCBO 5SU13467FP32 residual current circuit breaker with the following characteristics:
- Number of poles: 4P
- Rated current: 32 Amps
- Voltage: 400V AC
- Rated residual current: 30mA
- Rated short-circuit capacity: 6kA
- Type of differential A
- Number of modules: 4
This type of circuit breaker provides comprehensive and reliable protection, suitable for both residential and commercial installations.
Siemens Residual Current Circuit Breaker 4P 32A 30mA 6kA 4M type A 5SU13467FP32
€172.53
€172.53
Tax included
Tax included
Items Available: 107
: 27
The residual current circuit breaker is a device that combines thermal-magnetic protection against overloads and short circuits with differential protection against earth leakage currents.
Type A is specifically designed to detect alternating currents and unidirectional pulsating currents, making it ideal for use with modern electronic equipment such as home appliances, computers, and devices with inverters.
This type of breaker provides comprehensive and reliable protection, suitable for both residential and commercial installations.
Features:
- Number of poles: 4P
- Overvoltage category: III
- Pollution degree: 3
- Voltage type of operating voltage: AC
- Degree of protection: IP20, if the distribution board is installed, with conductors connected

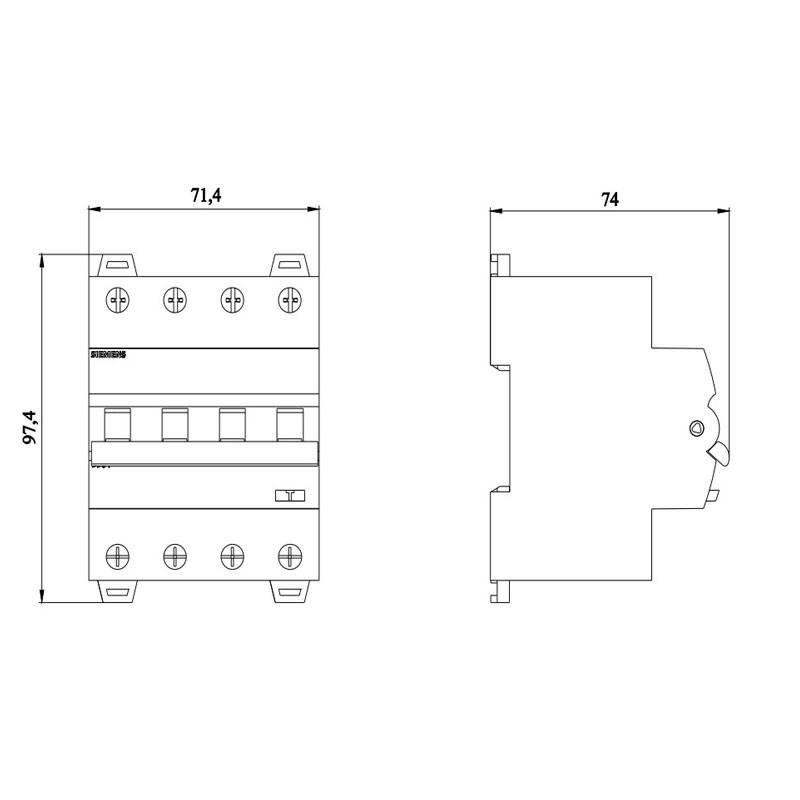

- Height: 85 mm
- Width: 72 mm
- Depth: 72 mm
- Number of modular width units: 4
- Ambient temperature during operation: -25/+40 degrees
- Ambient temperature during storage: -40/+70 degrees
There are no reviews
Data sheet
- Modules: 4
- Poles: 4P
- Breaking capacity: 6KA
- RCD Type: A
- Differential current : 0.03A
- Amps: 32A
- Circuit Protections: RCBO
