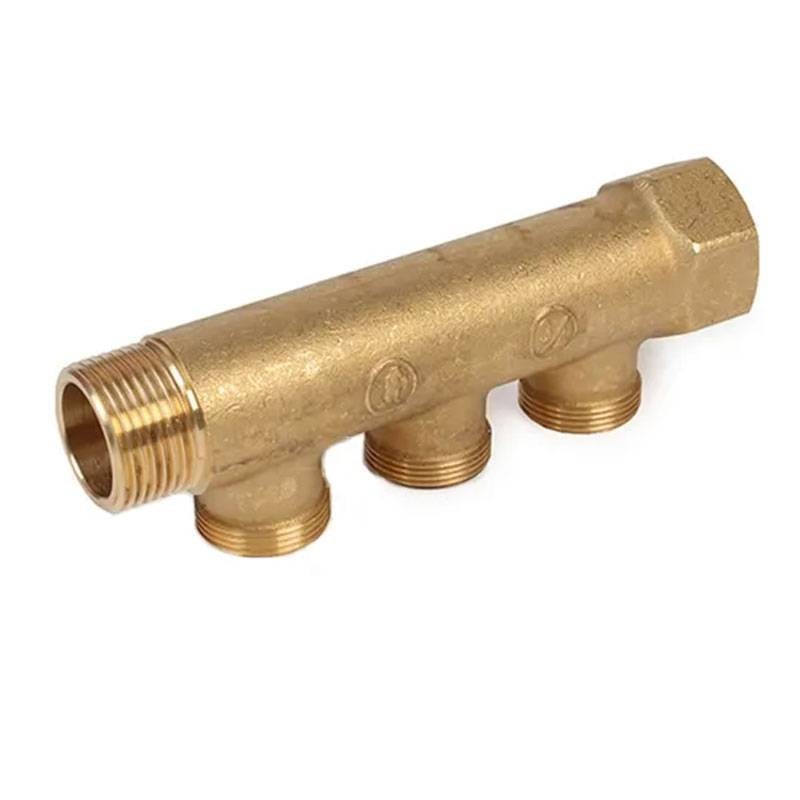

Giacomini modular manifold without taps brass 3/4 x 1/2 M/F R580CY063
GIA R580CY063
8009902289218
Giacomini simple modular manifold for sanitary systems, without shut-off taps with the following features:
- Connection: Male/Female
- Fittings: 3/4 x 1/2
- Adapter seat diameter: 16 mm
- Number of detachments: 3
€6.65
€6.65
Tax included
Tax included
Items Available: 230
: 40
Frequently bought together
The manifolds are manufactured using a stamped body, a feature that gives them extreme strength as well as reduced roughness, achieved by machining, on all internal surfaces.
Looking at a cutaway of the manifold, it can be seen that the fitting sections are designed to achieve the widest possible passage. Reliability in closing the plug, moreover, is ensured by the presence of an EPDM gasket for front sealing.
The operating handwheels, connected to the shut-off valve with a screw, are equipped with two plates: one plate indicates the corresponding utility; the other plate overlaps the previous one and is colored one side blue and the other red, to immediately display whether hot water or domestic cold water is circulating in that manifold. This also makes it possible to optimize the quantity of products in stock.
Technical data:
- Temperature range: 5÷100 °C
- Maximum operating pressure: 10 bar
- Interaxis distance between 3/4MF x 1/2 manifolds: 35 mm
- Center distance between 1MF x 3/4E manifold gaps: 40 mm
There are no reviews
Data sheet
- Type: Modular Manifolds
- Connection: M/F
- Connections: 1/2 inches
3/4 inches
