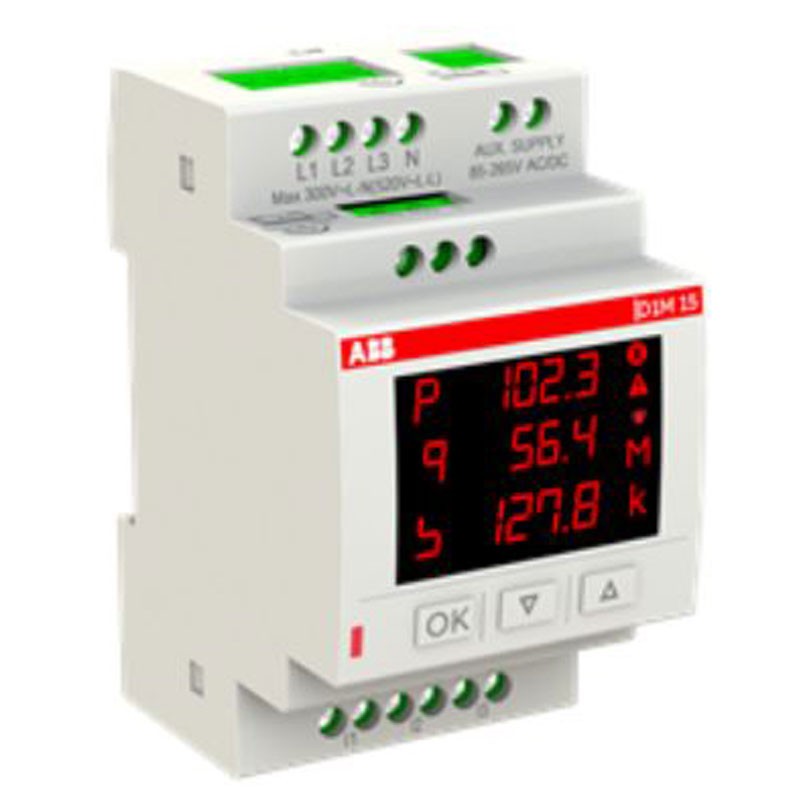

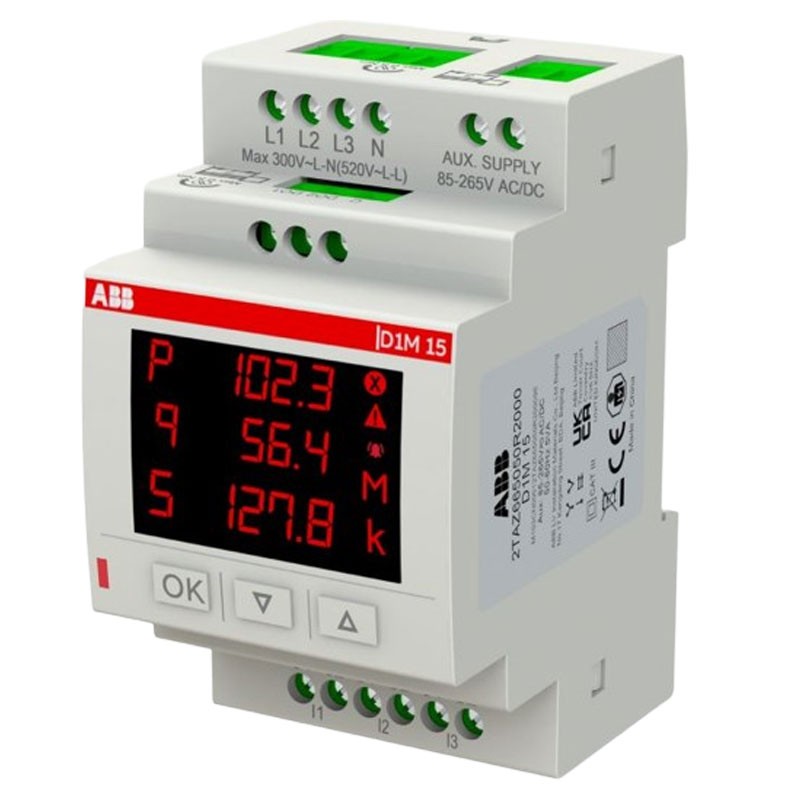

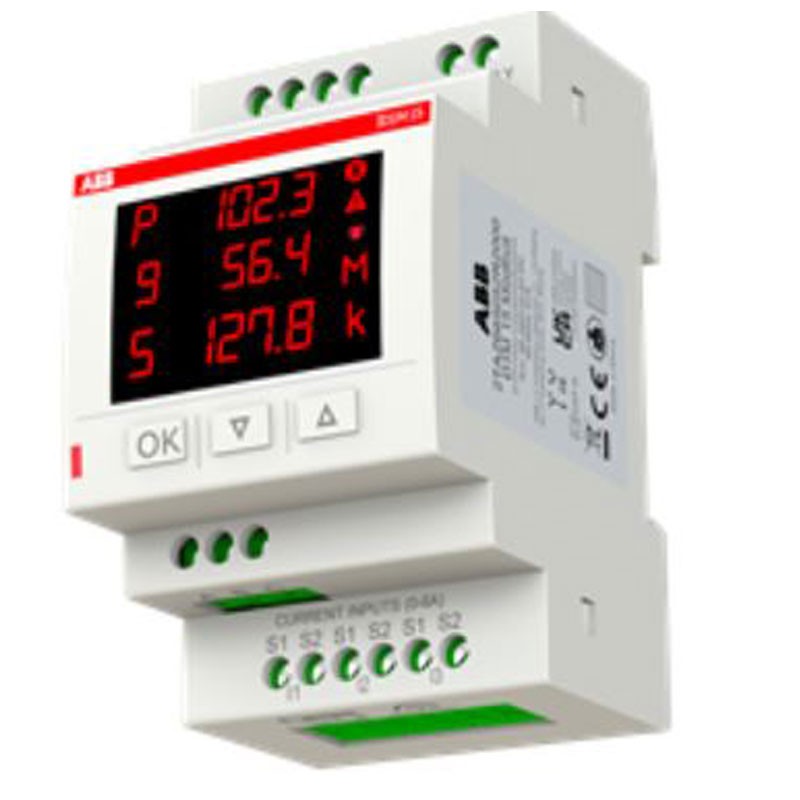

Abb D1M 15 ModBus digital multimeter D1M15RS485

Abb
ABB D1M15RS485 6941593481163

Abb Digital multimeter D1 M15 with the following features:



  • Standard: IEC 61557-12 - IEC 62053-21
  • Type of current: Mains
  • Rated voltage (Ur ): 80-300 (LN) V AC
  • Rated current ( I n ): 1 UN - 5 A
  • Frequency ( f ): Sampling frequency: 50 ... 60 Hz
  • Power consumption (@P cons ): Maximum 5 V-A
  • Accuracy: Active energy ±1%.
  • Measuring range: Maximum AC voltage 300 V - Maximum AC current 6 A - Maximum frequency 60 kHz
  • Number of phases: Single-phase/Three-phase
  • Mounting type: DIN rail
  • Indicator type: Analogue/digital
Do you have questions about this product or did you not find what you were looking for? Ask us!

Abb D1M 15 ModBus digital multimeter D1M15RS485

€359.80
€359.80

Abb D1M 15 ModBus digital multimeter D1M15RS485

€359.80
Tax included
Items Available: 16
Further availability of the manufacturer

Abb D1M 15 ModBus digital multimeter D1M15RS485

€359.80

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

D1M 15 Modbus is a multimeter with auxiliary power supply 85-265 V AC/DC, Modbus RTU RS485, 2 digital outputs, accuracy class 1 for active energy according to IEC 61557-12 PMD, LED display.



Other technical features:

  • I/O option: 2 digital outputs
  • Communication: Modbus-RTU
  • Number of batteries: 0
  • Ambient air temperature: Operating -5 ... 55 °C - Storage -25 ... 70 °C
  • Degree of protection: IP51 grade
  • Pollution degree: 2

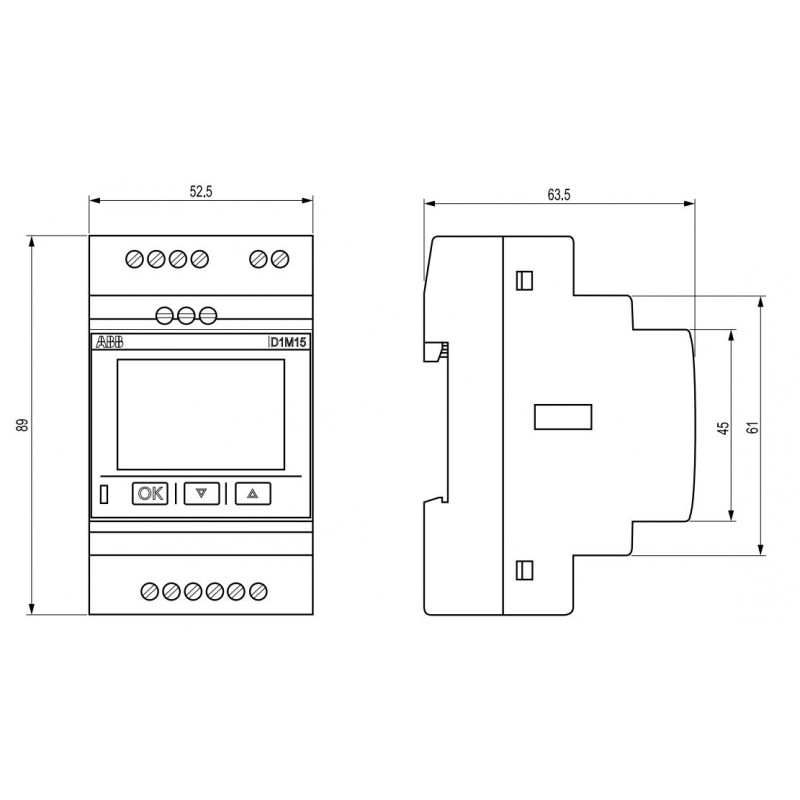

  • Net product width: 52.5 millimetres
  • Net product height: 89 millimetres
  • Net product depth/length: 63.5 millimetres
  • Net product weight: 0.252 kg
