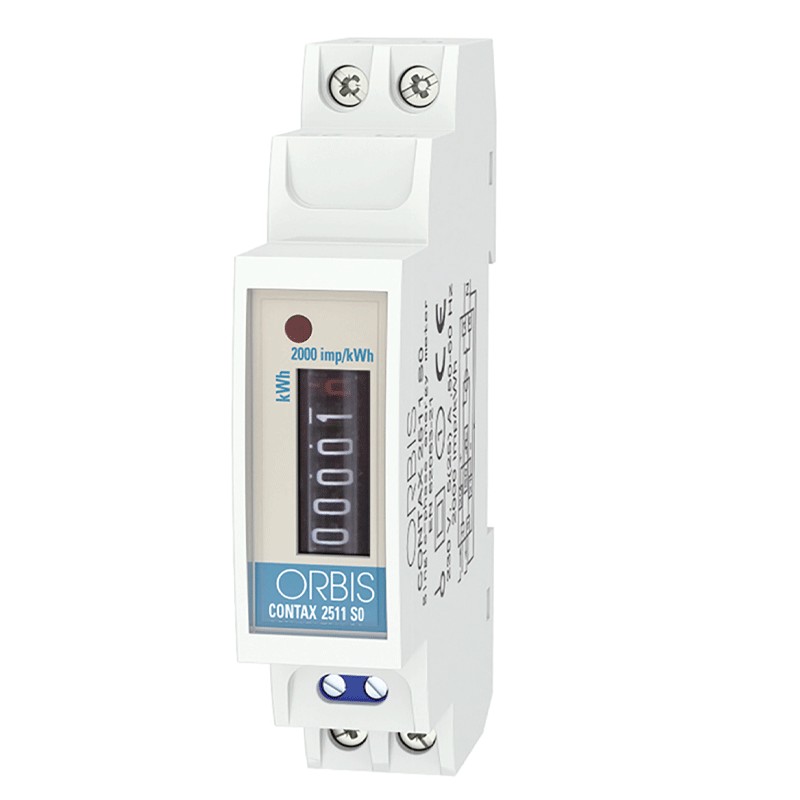

Orbis CONTAX 2511 electricity meter 25A single-phase 1 module OB701000
ORB OB701000
8426709104160
CONTAX 2511 SO single-phase active energy meter with the following features:
- Rated voltage: 230 V
- Operating limit voltages: AC 125 V to AC 265 V
- Rated frequency: 50 / 60 Hz
- Intensity Ib (Imax): 5 (25) A
- Operating current: 0.025 A up to 25 A
- 1 module
Orbis CONTAX 2511 electricity meter 25A single-phase 1 module OB701000
€28.52
€28.52
Tax included
Tax included
Items Available: 98
: 25
Single-phase modular meter that allows to control the active energy consumption in a given installation.
Features:
- Orbis series
- Direct insertion
- Electromechanical display
- LED flashing 0.5Wh/imp
- Complies with EC directives and EN 61036
- Starting current with phase shift 1: Typical 20 mA
- Self-consumption: Voltmeter circuit 0.7 W / 7.5 VA (CAP.) and ammeter circuit 0.2 W (resistive shunt type)
- Accuracy class: 1 according to EN 62053-21
- Numerator (non-resettable): Electromechanical = 5 digits + 1 decimal place
- Pulse output: Interface: optical coupler pulse duration > 30 ms, voltage 18÷27 V DC, limit values 60 V DC max 30 mA
- Operating temperature: -20 °C to +50 °C
- Installation: 35 mm DIN rail according to EN 60715
- 6-digit numerator 5 units (kWh) + 1 decimal (0.1 kWh) non-resettable
- LED indication of active energy consumption
- Pulse output for PC visualization, through appropriate software and relative concentrator module
