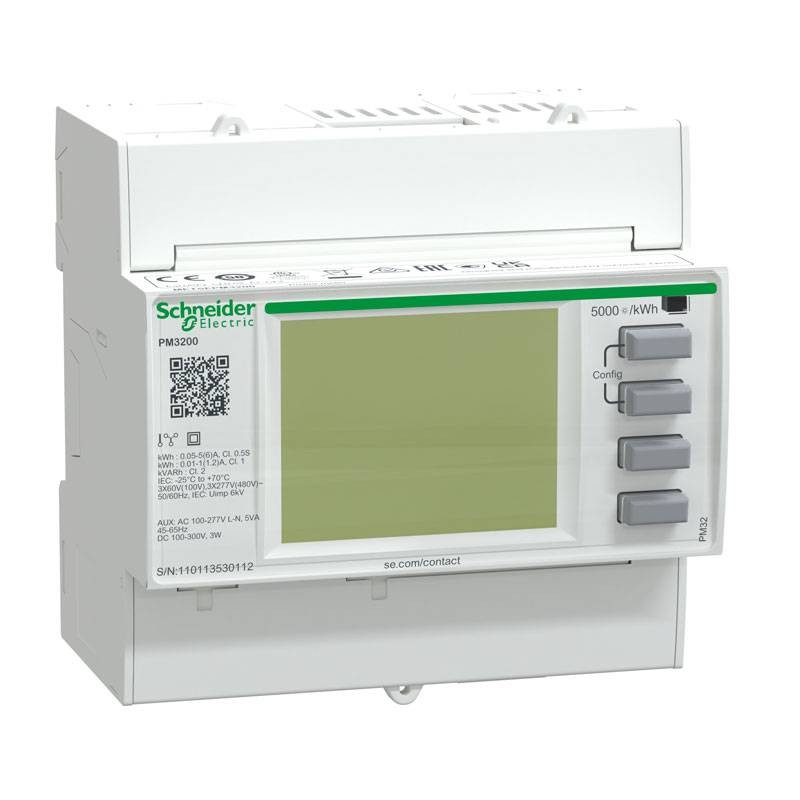

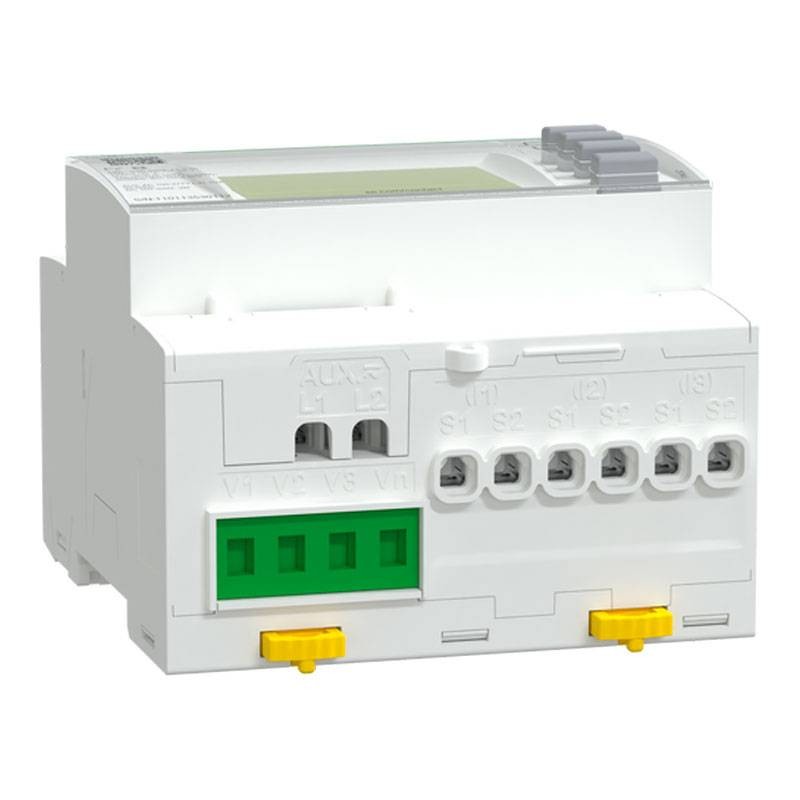

Schneider PM3200 multimeter power meter 1/5A 5M METSEPM3200

Schneider
SNR METSEPM3200 3606480481581

Schneider PM3200 multimeter power meter with the following features:

  • Supply voltage: 100/277 V AC 45-65 Hz - 173/480 V AC 45-65 Hz - 100/300 V DC
  • Mains frequency: 50 - 60 Hz
  • Rated current: 1/5A
  • Mains type: 3P + N - 3P - 1P + N
  • Power consumption in VA: 5 VA
  • Backlit LCD
  • Display resolution: 128 x 96 pixels
  • Sampling frequency: 32 samples/cycle
Do you have questions about this product or did you not find what you were looking for? Ask us!

Schneider PM3200 multimeter power meter 1/5A 5M METSEPM3200

€310.40
€310.40

Schneider PM3200 multimeter power meter 1/5A 5M METSEPM3200

€310.40
Tax included
Items Available: 27
Further availability of the manufacturer

Schneider PM3200 multimeter power meter 1/5A 5M METSEPM3200

€310.40

Buy it within and receive it from Wednesday, 13 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical information:

  • PM3200 DIN-mounted energy meter with 128 x 96-pixel backlit LCD display
  • The meter provides Class 0.5S accuracy according to IEC 62053-22 standard and 32 samples per cycle
  • The meter will measure energy, active and reactive power, voltage, current, frequency, power factor, apparent power, and up to the 15th harmonic
  • The meter will operate in a 50 Hz or 60 Hz grid and accepts supply voltages from 100 to 277 V AC, 173 to 480 V AC and 100 to 300 V DC
  • The nominal line current for this meter is 1 A or 5 A input and will support Single Phase, Single Phase and Neutral or Three Phase configurations
  • The direct measurement range is from 50 to 570 V AC, with an external VT from 570 to 999000 V AC
  • The voltage measurement range between phases is from 80 to 570 V AC at 45 and 65 Hz
  • The measurement range between Phase and Neutral is 50 to 330 V AC at 45 to 65 Hz
  • This instrument has no communication input or output capability
  • Product dimensions are as follows: width 90 mm (3.54 inches), depth 70 mm (2.76 inches), height 95 mm (3.74 inches)
  • Product weight 260 g (9.17 ounces)
  • Feature-rich power and energy meters
  • Identifies opportunities for savings
  • Compact size of 18 mm * 5 modules wide
  • Aggregation of energy consumption, including SALARIES, and cost allocation
  • Identifies energy saving opportunities with 0.5S class accuracy

Measurement voltage:

  • 50330 V AC 45...65 Hz direct
  • 50330 V AC 45...65 Hz phase to neutral
  • 80570 V AC 45...65 Hz direct
  • 80570 V AC 45...65 Hz phase to phase
  • 570999000 V AC 45...65 Hz with external TV

Measurement accuracy:

  • Current 0.3 % 0.5...6 A
  • Current 0.5 % 0.1...1.2 A
  • Voltage 0.3 % 50...330 V
  • Voltage 0.3 % 80...570 V

Class accuracy:

  • Class 0.5S active energy complying with IEC 62053-22
  • Class 1 active energy in accordance with IEC 62053-21
  • Class 2 reactive energy complying with IEC 62053-23
  • Class C active energy in accordance with EN 50470-3

Characteristics:

  • Overvoltage category: III
  • IP degree of protection: IP40 front panel: complies with IEC 60529 - IP20 body: complies with IEC 60529
  • Relative humidity: 595 % at 50 °C
  • Pollution degree: 2
  • Ambient air temperature for operation: -2555°C
  • Ambient air temperature for storage: -4085°C
  • Dimensions and weight: height 95 mm width 90 mm depth 70 mm weight: 260 grams
