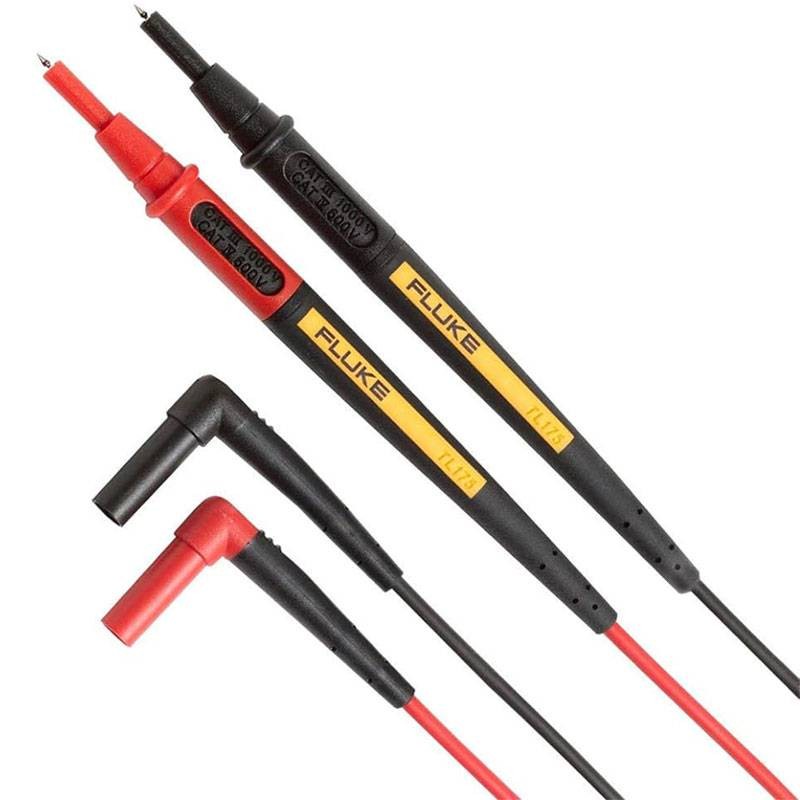

Key Features:

• Patented extendable tip sheath complies with new electrical safety requirements for reducing tip exposure while providing the flexibility needed for most measurements
• Exposed probe tip length can be changed from 19 to 4 mm
• New Wear Guard tip wear indicator, each tip is covered with two layers of silicone insulation; internal contrast color highlights nicks, scratches or any damage to the tips that need to be replaced
• Double-insulated silicone tips. TL175 ferrule withstands high temperatures, and its flexibility remains unchanged at low temperatures
• Ultra-durable grommet can be bent more than 30,000 times over the probe and connector ends without any problems
• Universal input connectors compatible with all instruments that support standard 4 mm shielded banana plugs
• Classification: CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A max., pollution degree 2
• For added flexibility, TL175E test lead includes 4 mm spring tips
• Probes always show the correct tip classification category to be used
• Environmental classification: -20 °C to 55 °C, altitude: 2000 m
• Compliance EN61010-031



Technical data: TL175 TwistGuard tips:

• Classifications: CAT II 1,000 V, CAT III 1,000 V, CAT IV 600 V, 10 A max.
• Pollution degree 2
• Exposed probe tip length: 19 to 4 mm (0.75 to 0.16 in.)
• Environmental ratings: -20°C to 55° C (-4°F to 131°F), altitude: 2,000 m (6,562 ft)
