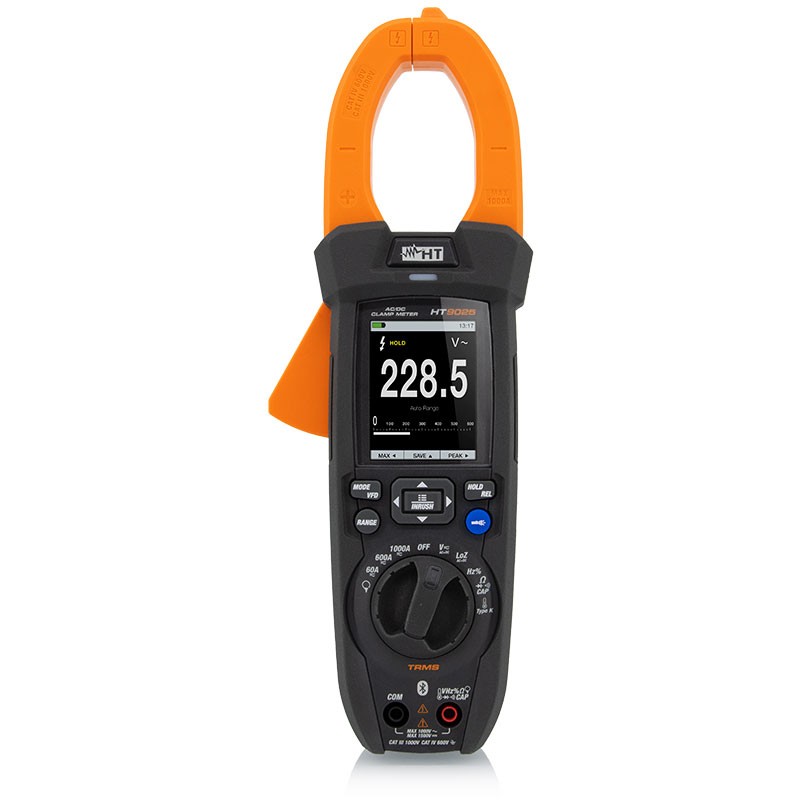

HT9025 AC/DC Current Clamp with DATA LOGGER Function HP009025
HTI HP009025
8052870673336
HT9025 AC/DC current clamp with DATA LOGGER function:
- Designed to measure AC/DC Current up to 1000A
- DC Voltage up to 1500V and AC Voltage up to 1500V in TRMS
- With low impedance input LoZ in achieving CAT IV 600V and CAT III 1000V in accordance with IEC/EN61010-1 safety standard
- The clamp features a 6000-point measurement display with backlight and bargraph so that easy readings can be taken even in dimly lit environments
- HT9025 also performs resistance, frequency, capacitance and temperature measurements with K probe
HT9025 AC/DC Current Clamp with DATA LOGGER Function HP009025
€412.63
€412.63
Tax included
Tax included
Pay in installments with Klarna
Items Available: 2
Features:
- Current measuring range 1000A
- AC/DC Current AC+DC
- AC/DC voltage 1000VAC/1500VDC
- Leakage current with optional current clamp External clamp
- Current AC/DC External clamp transducer
- Measurement category CAT IV 600V CAT III 1000V
- Maximum clampable diameter 40mm
- Measurement points 6000
- Power supply LI-ION battery
- Dimensions (WxLaxH) (mm) 280x100x50
- Weight in grams (including batteries) 505
- IEC/EN61010-1 Standards
- Color display
- Inrush current measurement
- LoZ low impedance voltage input
- Resistance and continuity
- Capacitance and diode test
- Temperature with K probe
- External transducer input for measurements up to 3000A
VFD and AC+DC modes, allow Voltage and Current to be measured correctly even in the presence of highly distorted waveforms with overlapping DC components such as those found at the output of an inverter.
There are no reviews
Data sheet
- Type:
- Current Clamps
