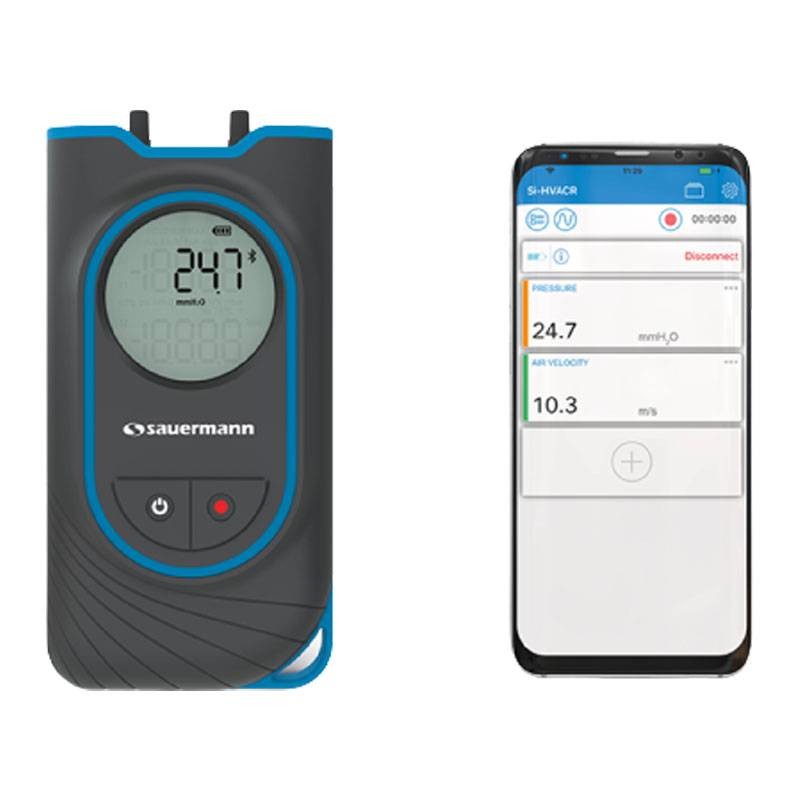

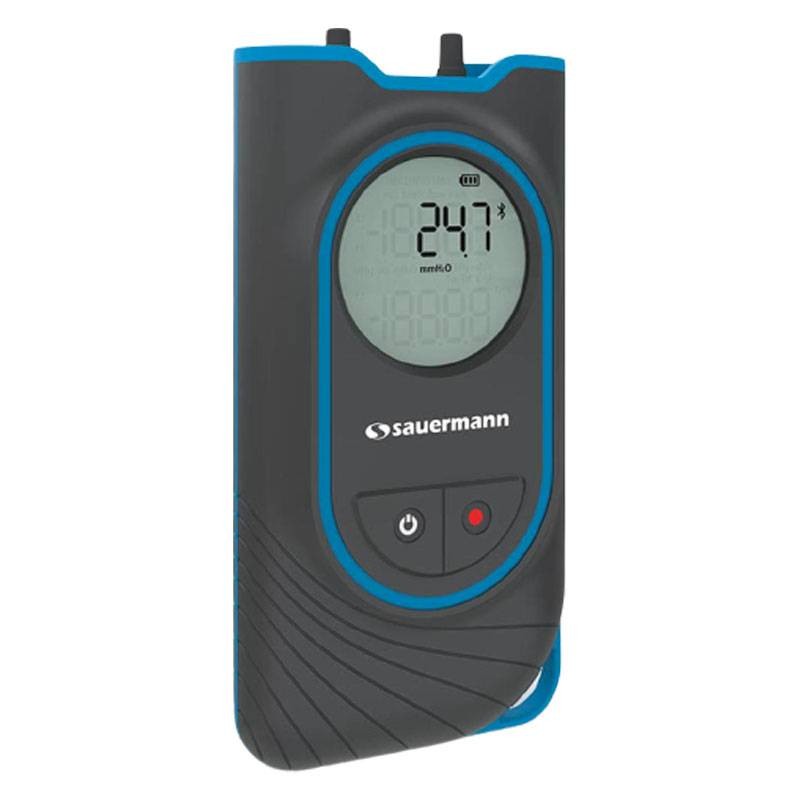

Sauermann Si-PM3 Digital Differential Pressure Manometer SIPM3
SAU SIPM3
3700543256786
Sauermann Si-PM3 Digital Differential Pressure Manometer consisting of:
- 2 transparent tubes Ø4x6 mm, length 1 meter (39.37)
- Certificate of Conformity
- Quick Start Guide
- 3 LR03 AAA 1.5 V alkaline batteries
- Carrying bag
With the size of a handheld, the Sauermann Si-PM3 differential pressure gauge makes it easy to measure differential pressure.
Features:
- Measuring Range: -150 to +150 hPa (-60 to 60 inH2O)
- Backlit LCD screen
- Air velocity and flow rate with pitot tube

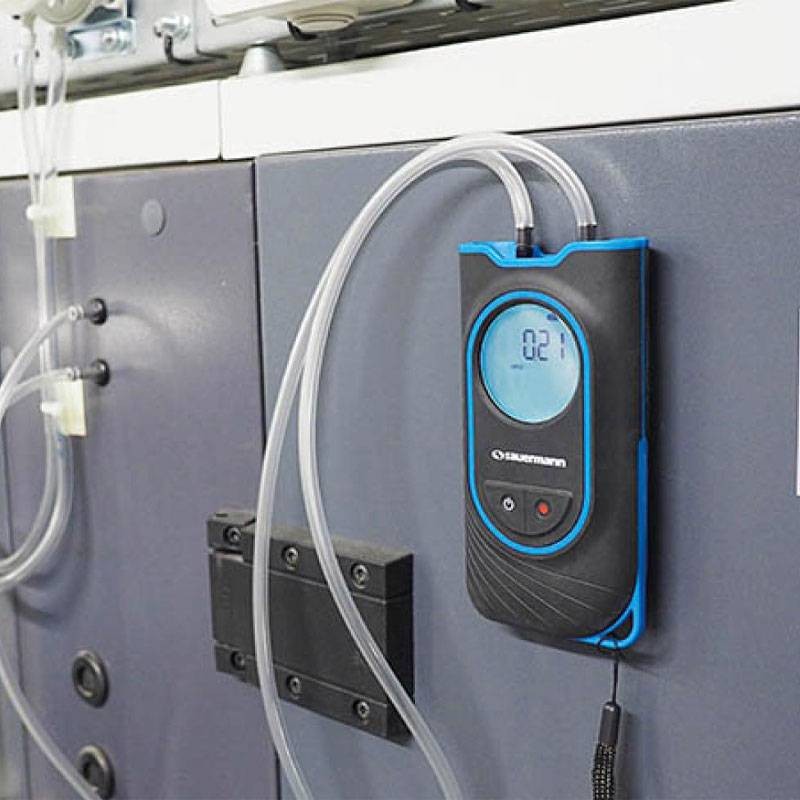

- Magnetic holder for easy attachment
- Si-HVACR Measurement Application: FREE smartphone application
Sauermann Si-PM3 Digital Differential Pressure Manometer SIPM3
€158.33
€158.33
Tax included
Tax included
Items Available: 3
: 2
Features:
- Measuring Element Piezoresistive Sensor
- Allowable Overpressure 750 mbar (301 inH2O)
- Connector graduated from Ø 5.1 to 6.2 mm
- Built-in 7-segment 2-line monochrome LCD display with backlighting
- ABS-PC and TPE enclosure, IP40
- Keypad: 1 key ON/OFF & backlight - 1 key Hold/Min/Max/Live & Auto reset
- Power supply 3 LR03 AAA 1.5 V alkaline batteries
- Battery life 170 hours (without backlight and wireless communication)
- Frequency range 2,402 MHz to 2,480 MHz with a transmission power of 0 dBm
- Range up to 15 m (98 feet), depending on the radio signal strength of the smartphone
- Environment: Air and neutral gases
- Operating conditions: -10 to +60°C (14 to 140°F)
- Condensation-free conditions: Altitude: 0 to 2000 m (6561)
- Storage temperature -20 to +70°C (-4 to 158°F)
- Auto power off 10 minutes (can be turned off)
The Si-HVACR measurement mobile app allows you to view and record measurements in real time:
- Easily view different parameters
- Browse saved measurement history and data graphs (average values, min and max, etc.)
- Create reports (PDF, CSV or XML) and add up to four (4) photos
There are no reviews
Data sheet
- Type:
- Manometers
