Best seller
Sauermann Si-RM3 wireless manifold for pressure and temperature measurements 25555
SAU 25555

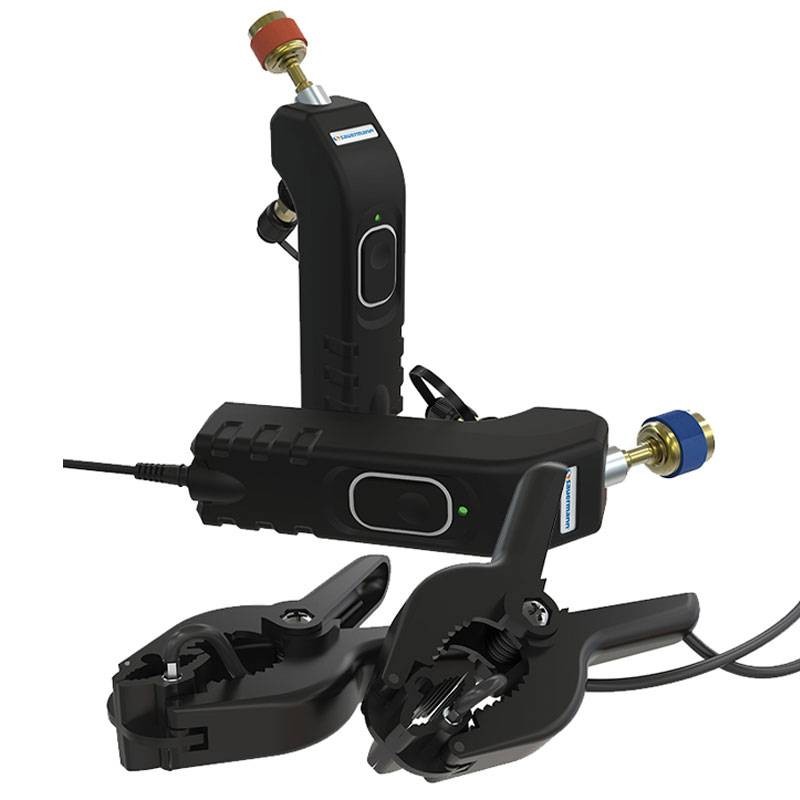

Sauermann Si-RM3 manifold with wireless smart probes for pressure and temperature measurements in a refrigeration system with the following features:
- Lightweight and ergonomic for easy connection to the system
- Dual valve system for simultaneous measurements and refrigerant filling/emptying
- Valve with Schrader-type connection for easy refrigerant filling
- Range up to 60 bar
- Reduces use of bulky tubing
- Elastomer overmolding for easy grip and protection
- Two temperature clamp probes
- Low-power wireless connection with range up to 30 meters
Sauermann Si-RM3 wireless manifold for pressure and temperature measurements 25555
€363.42
€363.42
Tax included
Tax included
Items Available: 2
: 1

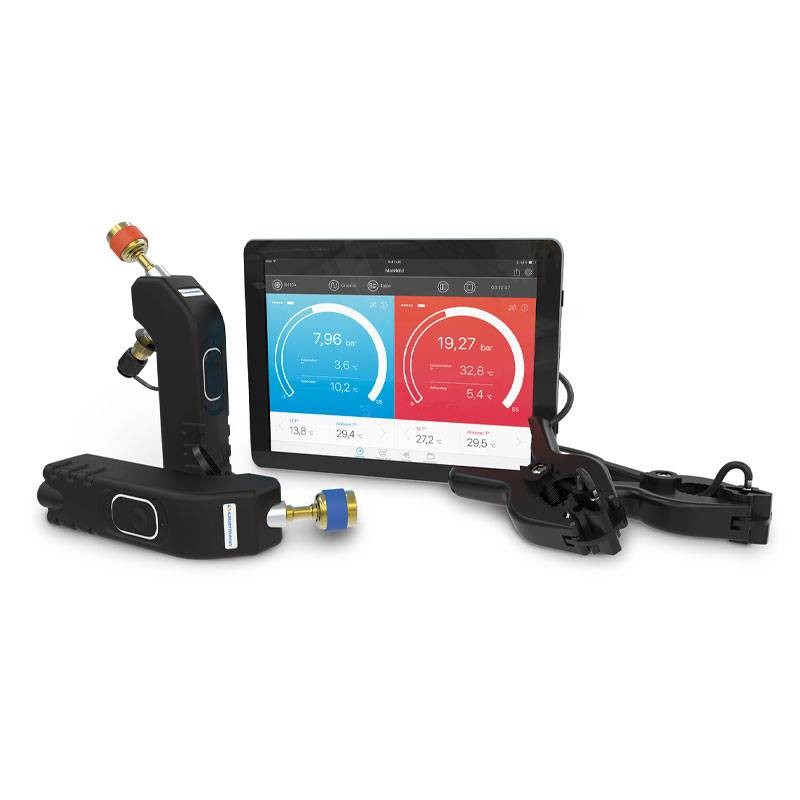

Kit consisting of two pressure probes and two temperature probes. ABS-PC pressure probe with elastomer overmolding. Installation side connection: female 1/4" FFL with depressor. Manifold side connection: male 1/4" MFL with Shrader type valve. Pressure measuring range from -1 to 60 bar. Wide Bleutooth 4.2 radius with low consumption. NTC-type clamp-on temperature probe - measuring range from -40°C to +150°C. 2 m long cable with reinforced jack connector. Probes supplied in soft case with red and blue recognition bands, AAA batteries and calibration report. Data readout with Si-Manifold APP.
General features:
- Easy interface for immediate reading in any condition
- Graphical, tabular or analog displays
- Creation of measurement reports with the ability to add logos
- Data export in PDF, CSV and XML formats
- Data logging
- Stopwatch function
- Free application for iOS and Android devices
- Minimum version required: Android 4.4, IOS 8.0, BLE 4.0
Manifold Features:
- Real-time overheating/undercooling calculation
- Overheating/undercooling target values configuration
- Heating and cooling functions
- 126 refrigerant gases with favorite list
Vacuum Meter Features:
- Vacuum measurement function
- Configuration of vacuum target values
- Water evaporation temperature
Features:
- 2-way pressure valves
- Measuring range -1 to 60 bar
- Pressure sensing accuracy ±0.5% of full scale
- Available units psi, MPa, kPa, bar, Foot of head
- Resolution 0.1 psi, 0.001 MPa, 1 kPa, 0.01 bar, 1 foot of head
- Overpressure 65 bar
- Rupture pressure 150 bar
- Operating temperature -20 to 50°C
- Storage temperature -20 to 60°C
- Number of probes 2 clamp probes
- Temperature probes High-precision NTC thermistors
- Max operating temperatures Clamps: 150°C / Cable: 105°C / Handles 90°C
- Available units °C, °F, K
- Resolution 0.1°C, 0.1°F, 0.1 K
- Pipe diameters 6 to 42 mm
- Cable 2 m long with reinforced jack connector
- Operating temperature From -20 to 50°C
- Storage temperature From -20 to 60°C
- Humidity: non-condensing (<80% RH)
- Maximum altitude: 2000 m
- Battery life 250 h (for one measurement every second at 20°C)
- Wireless connection Class 1 BLE 4.2
- Wireless connection range Up to 30 m (Depends on the wireless connection range of the smartphone and tablet)
Supplied with:
- 2 pressure probes. Ref: Si-RM1
- 2 temperature probes. Ref: Si-RM2
- Certificate of compliance
- Simplified instruction manual
- 6 AAA batteries
- Soft carrying case. Ref: Si-RM4
There are no reviews
Data sheet
- Type:
- Manometers
