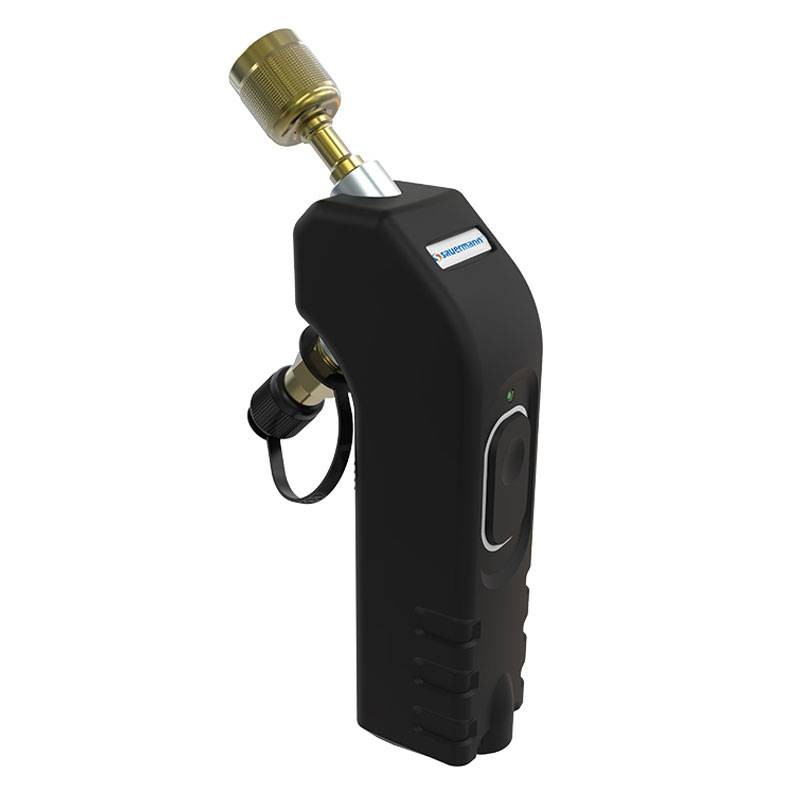

Sauermann Si-RV3 wireless smart vacuum meter for vacuum measurement 25554
SAU 25554
Sauermann smart wireless vacuum meter for vacuum measurement in a refrigeration system with the following features:
- Lightweight and ergonomic for easy connection to the system
- High precision of the vacuum sensor
- Dual valve system capable of simultaneous vacuum measurement and refrigerant draining
- Valve with Schrader-type connection for easy coolant filling
- Range from 5 to 25,000 microns
- Reduces the use of bulky tubing
- Elastomer overmolding for easy grip and protection
- Low-power wireless connection with range up to 30 meters
Sauermann Si-RV3 wireless smart vacuum meter for vacuum measurement 25554
€234.54
€234.54
Tax included
Tax included
Items Available: 3
: 2

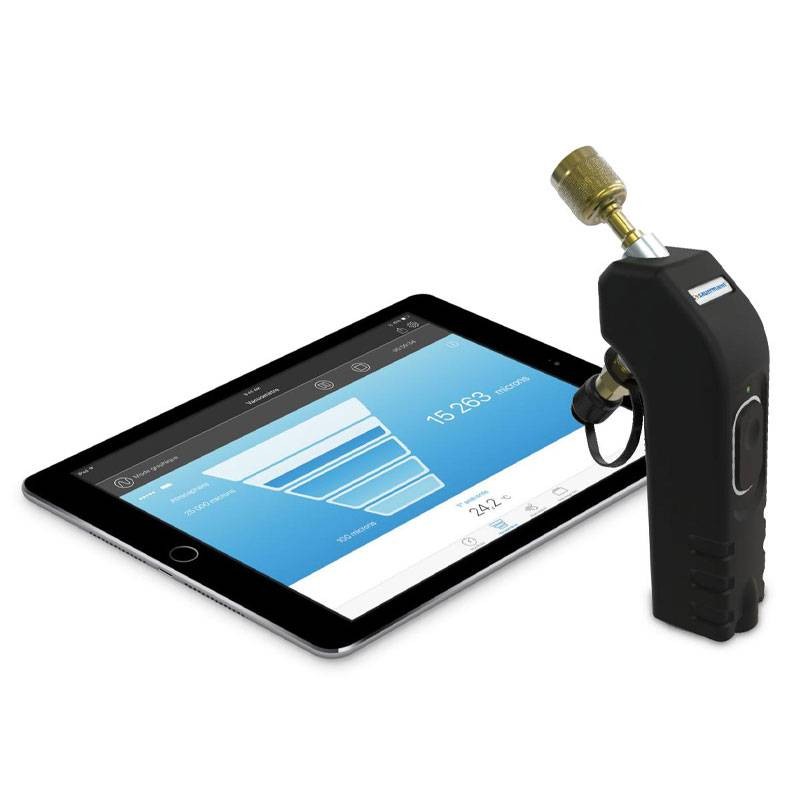

Vacuum gauge for vacuum measurement model Si-RV3 ABS-PC housing with elastomer overmolding. Manifold side connection: female 1/4" FFL with depressor. Flexible side connection: male 1/4" MFL with shrader type valve. Measuring range from 25000 to 5 microns. Communication via low-power wireless connection. Supplied in blister pack with 3 AAA batteries and a calibration report. Data reading with Si-Manifold APP.
General features:
- Easy interface for immediate reading in any condition
- Graphical, tabular or analog displays
- Creation of measurement reports with the ability to add logos
- Data export in PDF, CSV and XML formats
- Data logging
- Stopwatch function
- Free application for iOS and Android devices
- Minimum version required: Android 4.4, IOS 8.0, BLE 4.0
Manifold Features:
- Real-time overheating/undercooling calculation
- Overheating/undercooling target values configuration
- Heating and cooling functions
- 126 refrigerant gases with favorite list
Vacuum Meter Features:
- Vacuum measurement function
- Configuration of vacuum target values
- Water evaporation temperature
Features:
- 2-way measuring and emptying valves
- Measuring range 5 to 25000 microns
- Pressure sensing accuracy: ±10% of measured value ±10 microns
- Overpressure 10 bar
- Rupture pressure 27.5 bar
- Operating temperature From -10 to 50°C
- Storage temperature From -20 to 60°C
- Maximum altitude: 2000 m
- Battery life 250 h (for one measurement every second at 20°C)
- Wireless connection Class 1 BLE 4.2
- Wireless connection range Up to 30 m (Depends on the wireless connection range of the smartphone and tablet)
- Connections Installation side: female ¼ FFL with Schrader depressor
- Flexible side: male ¼ MFL with Schrader-type valve
