Uniks Circuit breaker finder and Sockets Test with RCD KT2
UNK KT2
8052461741857
Uniks Circuit breaker finder and Sockets Test with RCD 30mA is the right tool to locate the switch protecting an electrical outlet without performing line disconnection.
It includes a generator to be connected to the electrical outlet and a receiver to clear all electrical switches in the electrical panel until the outlet under test is located.

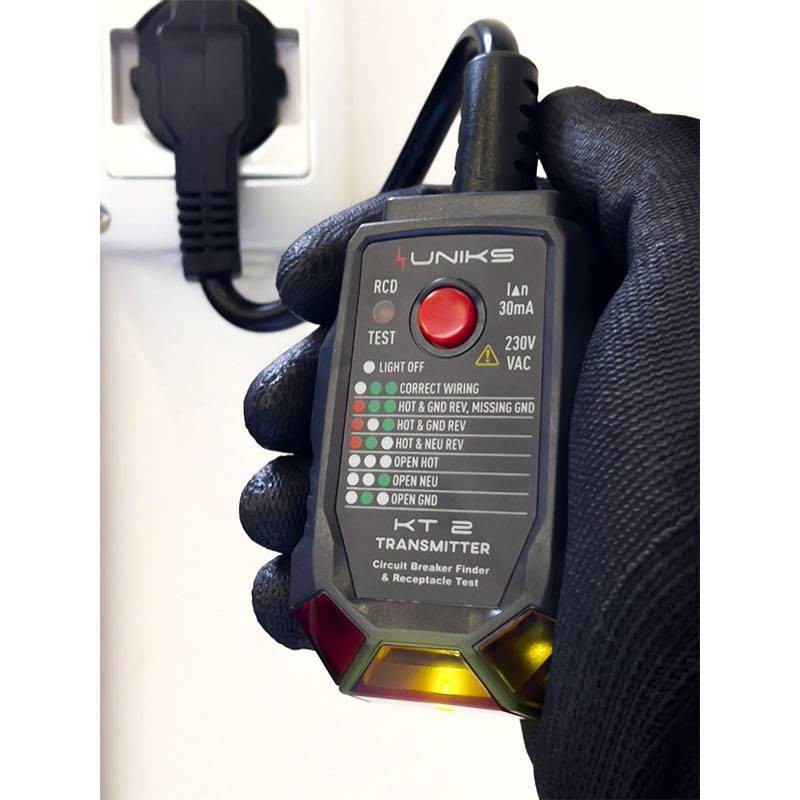

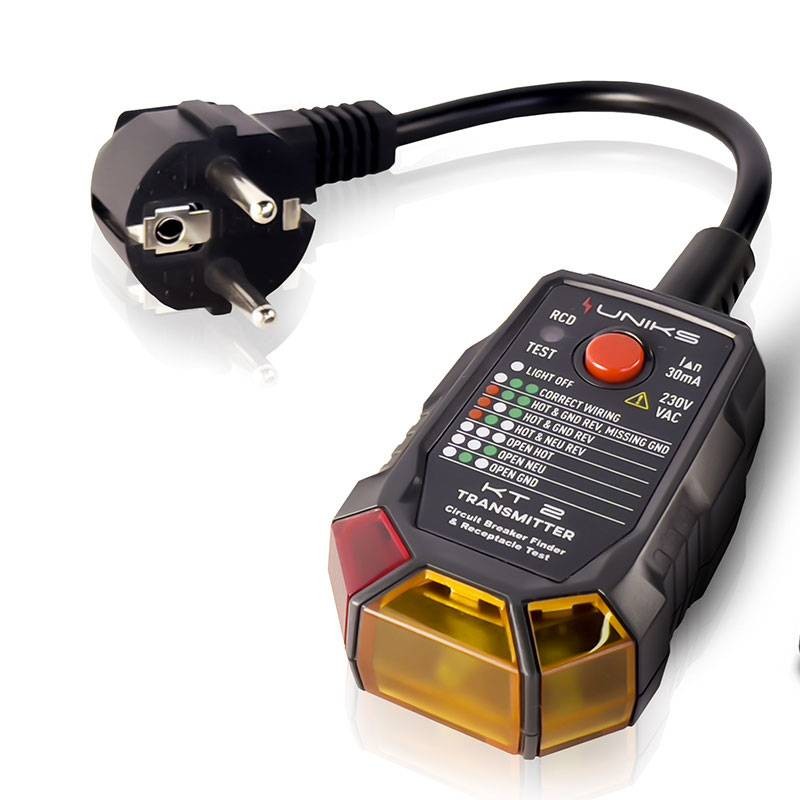

KT2 Transmitter can also function as a PRESS TEST and 30mA RCD test:
- Presence of ground connection in the plug
- Phase and Neutral reversed
- Phase and Earth reversed
- Phase, Neutral or Earth disconnected
- RCD test with 30mA
€155.55
€155.55
Tax included
Tax included
Items Available: 15
Product Overview:

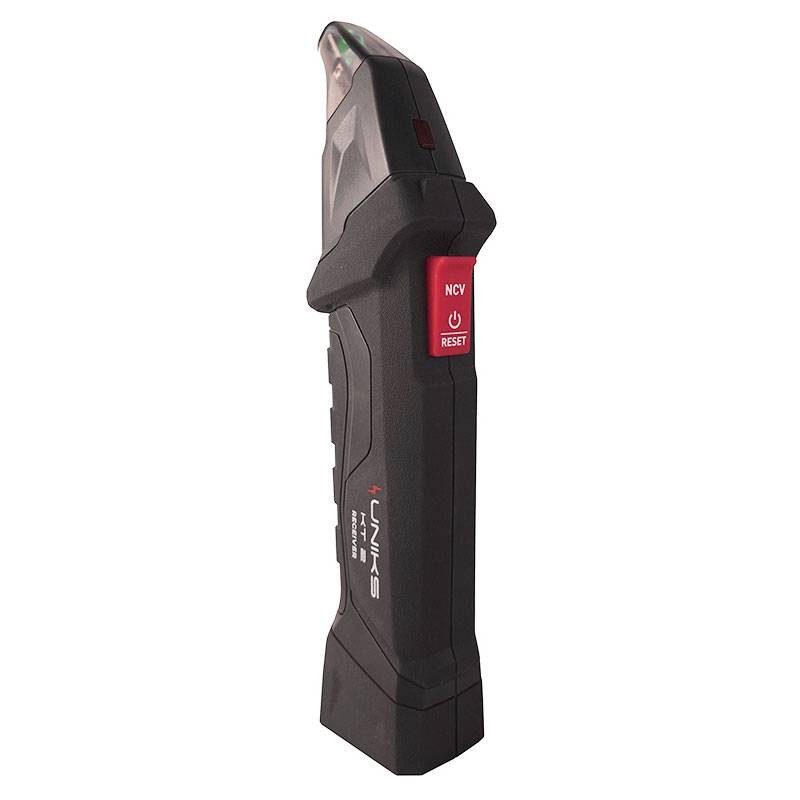

- KT2 Receiver makes it easy to identify which outlet corresponds to which switch installed in the electrical panel via LED indicators
- An NCV button also allows KT2 to be used as a regular phase finder
Functions:
- Digital switch finder
- Scanner function with RESET to resynchronize
- Socket test
- Differential trip test (RCD 30mA)
- Phase finder
- IP40 degree of protection
- Operating voltage 30V to 250V AC 50/60 Hz
- Reference standards EN: 61010-1 - EN: 61010-2-030

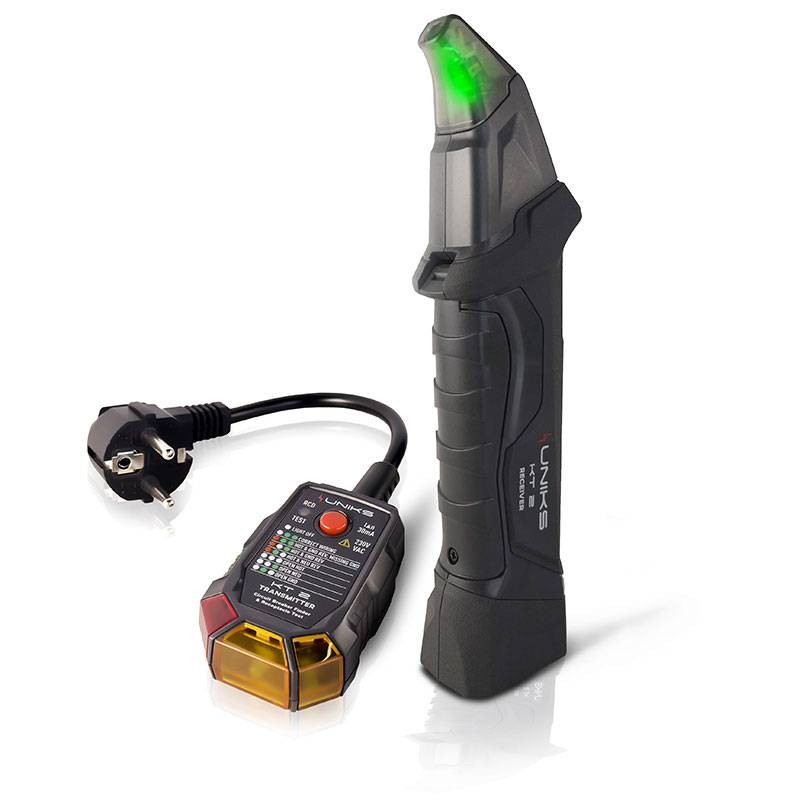

Uniks KT2 is an instrument consisting of two units a receiver and a transmitter:

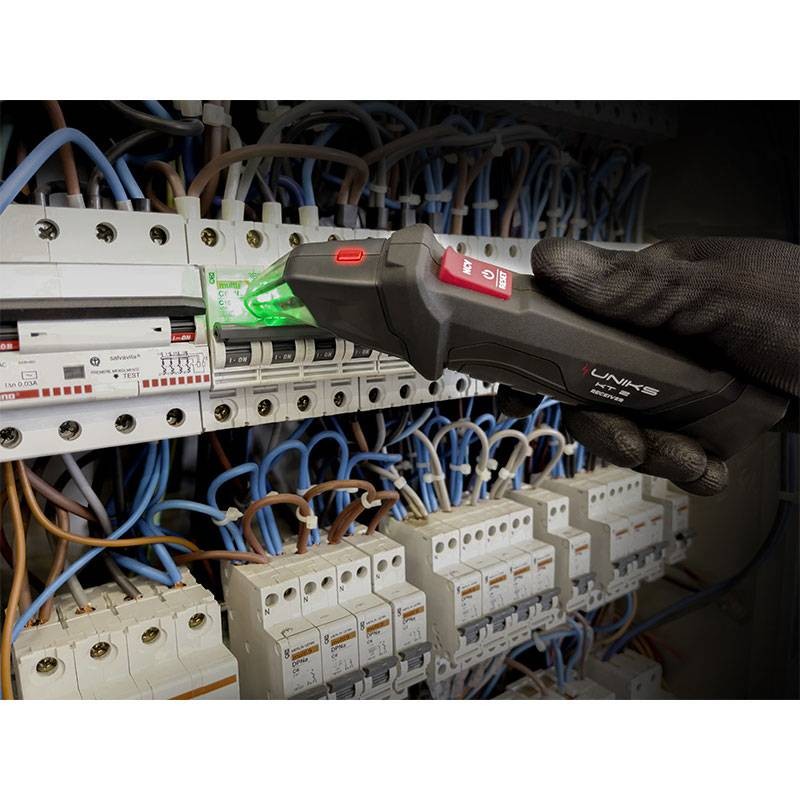

- The Transmitter is connected to the electrical outlet or equipment in the circuit while the Receiver is used to scan protective devices in electrical panels
- The Transmitter connected to an outlet generates a signal that will be searched by the receiver in the electrical panel so that a total mapping of the 'electrical system can be obtained
Specifications:
- Operating voltage 30 V to 250 V AC, 50/60 Hz
- Operating altitude 2000 m (6562 ft)
- Relative humidity <90
- Operating Temperature 0 to 50 °C (32 to 122 °F)
- Storage Temperature -20 to 50 °C (-4 to 122 °F
- Dimensions Transmitter: 340 x 53 x 32 mm (13.39 x 2.09 x 1.26 inches) Receiver: 189 x 49 x 34 mm (7.36 x 1.93 x 1.34 inches
- Weight Transmitter, receiver batteries: 254g
- Battery (receiver) 1x9V alkaline (included)
- Automatic power off (receiver)
- After 3 minutes of inactivity
- Drop protection 2 m (6.6 ft)
- Drop protection IP40
- Pollution degree 2
There are no reviews
Data sheet
- Type: Multifunctional Tools
