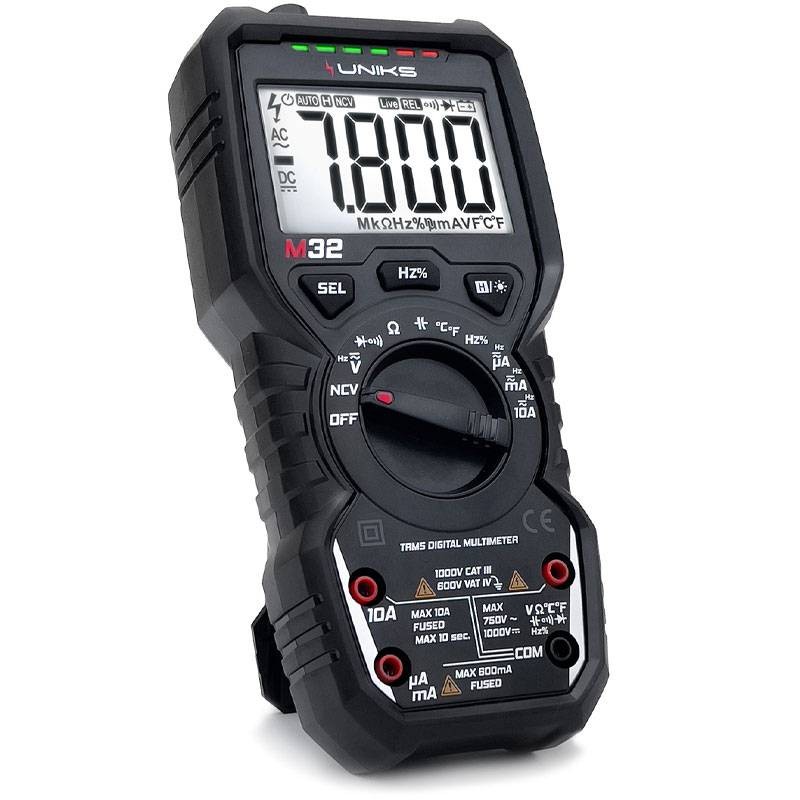

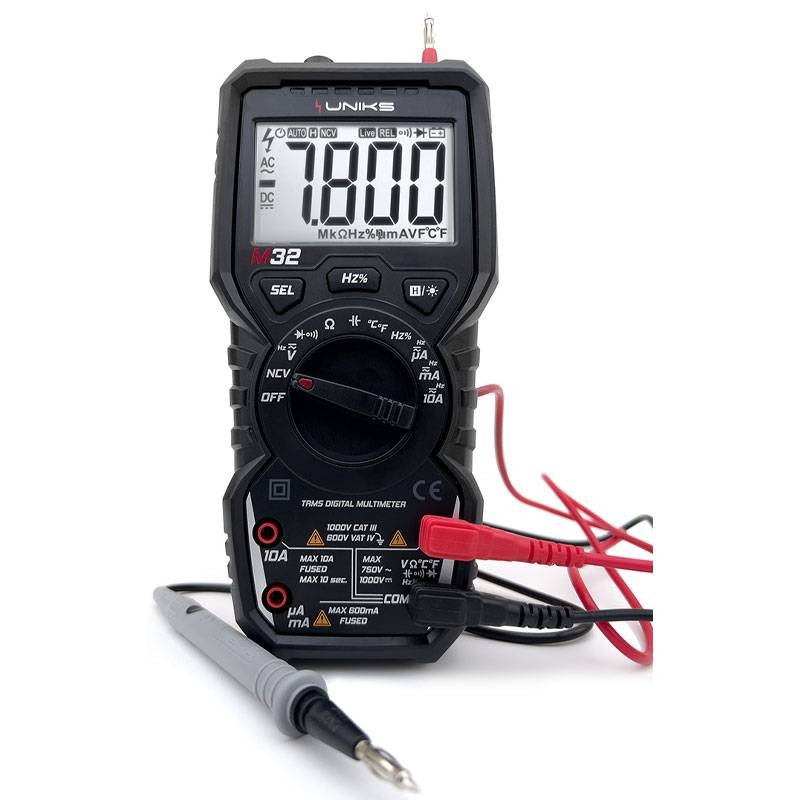

Uniks Digital Multimeter in TRMS AC/DC M32
UNK M32
8052461742311
Digital multimeter in TRMS Uniks in CAT IV 600V, which allows it to be used in both civil and industrial settings.
It performs measurements of: Resistance, Capacitance, Frequency, Temperature and Current up to 10A, and through the indicator LEDs you will be able to use the M32 multimeter as a non-contact Voltage Detector (NCV) in normal or LIVE mode through the measuring tip.
Uniks Digital Multimeter in TRMS AC/DC M32
€100.65
€100.65
Tax included
Tax included
Items Available: 10
Contained in the package:
- UNI99: 2 R and N Tips 4mm CAT III 1000V
- UNI616: Canvas carrying bag
- User's manual
- 2 x 1.5V AAA batteries
M32 is equipped with an LED light for dimly lit environments also the guine has the function of interlocking test leads to facilitate measurements in electrical panels.
The NCV (non-contact voltage detection) sensor located at the top allows you to detect the presence of voltage as if it were a phase finder also the function can be used in LIVE mode via test lead more accurate voltage detections.
Functions:
- TRMS
- Autorange
- HOLD
- LCD display
- CAT III 1000V CAT IV 600V
- Integrated flashlight
- Auto Power Off
- Low battery indicator
- Backlighting
Specifications Range:
- DC voltage 600mV 1000V
- AC voltage 6V 750V
- AC current 10A uA, mA (60uA 600mA)
- DC Current 10A uA, mA (600uA 600mA)
- Resistance 60M
- Frequency 10Hz 10MHz
- Duty Cycle 1% 99%
- Capacity 100.0mF
Features:
- 6,000 Measurement Points
- Input surge protection 600V AC/DC RMS
- 3s Sampling Frequency
- Bandwidth for TRMS measurements of 1KHz AC voltage up to 750V TRMS
- DC voltage up to 1000V
- AC/DC current up to 10A
- Resistance up to 60M?
- Capacitance up to 100mF
- Continuity Frequency and Hz% Diode test Temperature NCV (non-contact voltage detector)
There are no reviews
Data sheet
- Type:
- Multimeters
