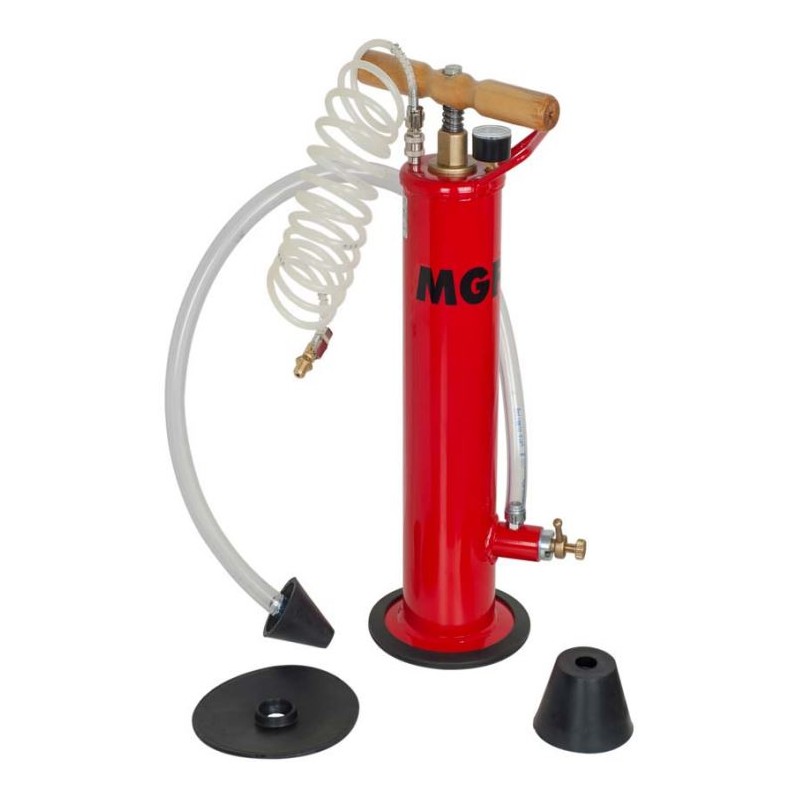

Mgf Manual drain cleaning pump 12 bar 1/4 Steel 904100

Brand: Mgf

Code: 15A 904100 EAN:

Mgf Manual drain cleaning pump with the following characteristics:

Dimensions: 260 x 120 x 570 mm
Maximum pressure: 9.5 bar
Maximum flow rate: 125 cc/cycle
Air connection: 1/4 inch
Tank: 3.1 litres
Robust, powder-coated steel tank

Complete kit, supplied with compressed air hose and pads of different sizes (diameters 65, 100, 170 and spiral). Equipped with handle, easily transportable and protected pressure gauge.

For drains from diameter 21 to 170, thanks to the included plugs it can test systems with compressed air up to 8 BAR, expansion vessels, preliminary tests of GAS systems.

The model is the Full Optional pump version equipped with all buffers in different sizes (diameters 65, 100, 170 and spiral), ideal for those who want to get the most out of their MGF pump.

Mgf Manual drain cleaning pump 12 bar 1/4 Steel 904100

€174.45

Mgf Manual drain cleaning pump 12 bar 1/4 Steel 904100

€174.45
Tax included

Items Available: 6

: 2

Further availability of the manufacturer

Two-year warranty

Easy return within 14 days

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Features:

Wide range, unclogs drains from Ø 21 mm up to Ø 170 mm
Can test systems with compressed air up to 8 bar
Performs preliminary testing of gas systems
Charges expansion vessels and autoclaves
Suitable for tire inflation
Unclogs drains
Does not require power supply, manual operation
Manometer made in accordance with EN 837 standard
Unclogs drains in an environmentally friendly manner from Ø 21 to Ø 170 mm thanks to the included pads
Suitable for tire inflation, thanks to the spiral tube with attachment to the tire valve

Instructions for use:

TO UNCLOG A DRAIN:

Close the quick-action stopcock and tighten the screw without using pliers or other tools. Also close the slide valve
Bring the pump to the desired pressure. We recommend trying with a pressure that is not too high (~ 3 bar) and increasing later if the pipe does not unclog
Insert the conical plug into the drain to be unclogged, possibly using the larger diameter plugs supplied for larger drains
After making sure that the drains connected to the drain to be unclogged are sealed with something so that the water necessarily present in the pipes does not escape (e.g. a wet rag), open the quick-action stopcock while holding the plug in the drain

TO TEST INSTALLATIONS:

Connect the pump to the system to be tested using the hose supplied. Ensure that the hose is securely attached to the quick-action stopcock
Close the quick-action stopcock and tighten the screw with the same precautions as above; open the slide valve and bring the pump to the desired pressure
For the period of time relative to the test to be carried out, remember to close the slide valve. To keep the system under pressure without leaving the pump on site, MGF recommends using the HELP tool (code 904400 not supplied with the pump).

TO LOAD BOILER EXPANSION POTS: Connect the pump to the expansion tank to be loaded and carry out the operations (see points 1 and 2 in the text ‘to test systems’).
