Mitsubishi Smart Dual Split Air Conditioner 12000+12000btu 3.5+3.5KW R32 A++/A+
The Mitsubishi Smart Dual Split 12000+12000 BTU air conditioner is the ideal solution for efficiently and quietly cooling and heating two rooms, providing maximum comfort and significant energy savings. The price includes:

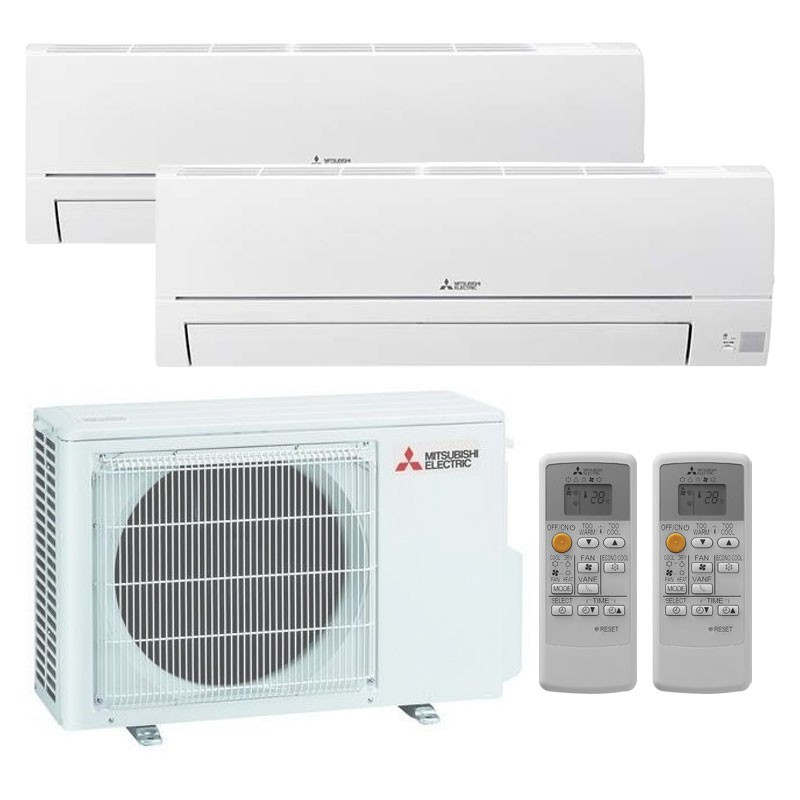

1 Dual outdoor unit 2 connections 5.0 kW (MXZ-2HA50VF2-E1 675723)

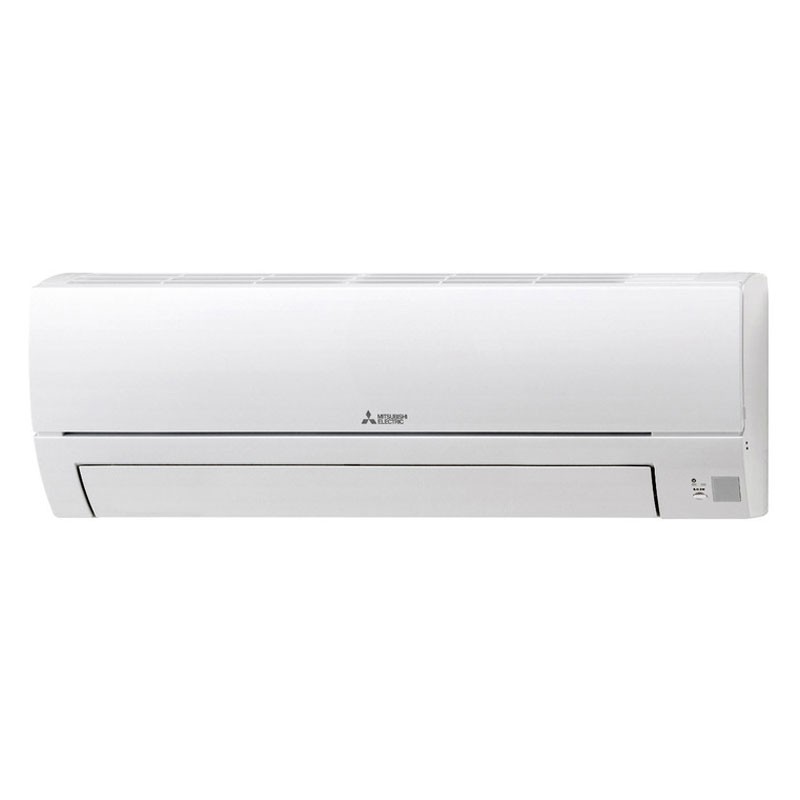

2 Indoor units 3.5 kW 12000 Btu (MSZ-HR35VF-E8 688341)

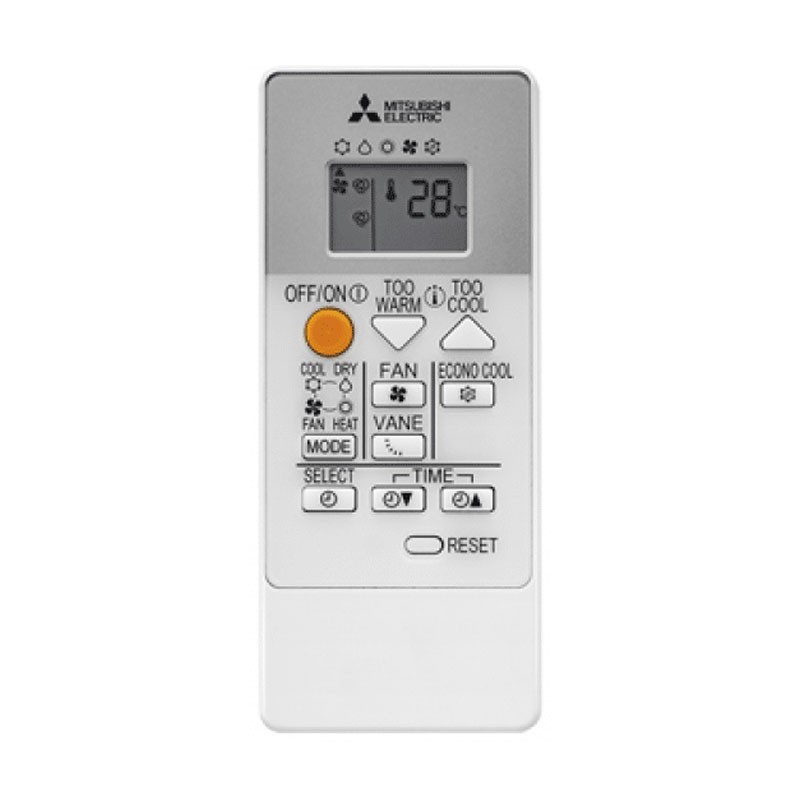

2 Remote controls.
Control with Smartphone via Wi-Fi (optional to add item MAC-587IF-E 601928)
Mitsubishi Smart Dual Split Air Conditioner 12000+12000btu 3.5+3.5KW R32 A++/A+
Mitsubishi Smart Dual Split Air Conditioner 12000+12000btu 3.5+3.5KW R32 A++/A+
Tax included
Mitsubishi Smart Dual Split Air Conditioner 12000+12000btu 3.5+3.5KW R32 A++/A+
Frequently bought together
Dual Split Mitsubishi Smart: DC Inverter for comfort and savings
Using DC Inverter technology, the Mitsubishi Smart air conditioner modulates the compressor speed to match the thermal demand of the room. This allows it to quickly reach the desired temperature and keep it stable, eliminating the surges typical of On/Off systems while reducing energy consumption.
Efficiency beyond class A++/A+
The energy efficiency of Mitsubishi's Smart line exceeds A++/A+ class standards. Thanks to careful component design and advanced technologies, this air conditioner achieves high SEER and SCOP values, providing excellent performance even on a seasonal basis and significant savings in operating costs.
Optional Wi-Fi control with MELCloud
The MELCloud system (optional) offers the ability to control the air conditioner via Wi-Fi connection, allowing temperature, mode and timer adjustments to be made remotely via PC, tablet or smartphone. With a dedicated interface (MAC-567IF-E), MELCloud takes advantage of Cloud technology to monitor and manage the system anytime and from anywhere with an internet connection.
Detailed technical specifications
- Model: Mitsubishi Smart Dual Split
- Capacity: 12000+12000 BTU (3.5+3.5 KW)
- Energy class: A++ (cooling), A+ (heating)
- Refrigerant Gas: R32
- Technology: DC Inverter for power modulation and saving
- Operation modes: Cooling, heating, dehumidification
- Additional options: Silent, timer, night mode
- Wi-Fi control: MELCloud (optional with MAC-567IF-E interface)
- Installation: Dual split for two rooms
Cooling:
- Min/Max Capacity: KW 5.0
- SEER 7.78
- Energy Class: A++
- EER 3.29
- Indicative annual energy consumption kW/a 225
Heating:
- Min/Max Capacity: KW 3.2
- SCOP: 4.3
- Seasonal energy efficiency class A+
- COP 3.9
- Indicative annual energy consumption: kWh/a 1043
Indoor Unit 12000BTU 3.5kW:
- Dimensions: (HxWxD) 280x838x228mm
- Weight 8.5Kg
- Air handled Cooling cubic meters/min 3.6/5.6/7.8/11.7
- Air handled Heating cubic meters/min 3.3/5.4/7.4/10.5
- Dehumidification capacity l/hr N/A
- Sound pressure level (Cooling/Heating) dBa 22-31-38-46 / 21-30-37-44
- Sound Power Level dBA 60

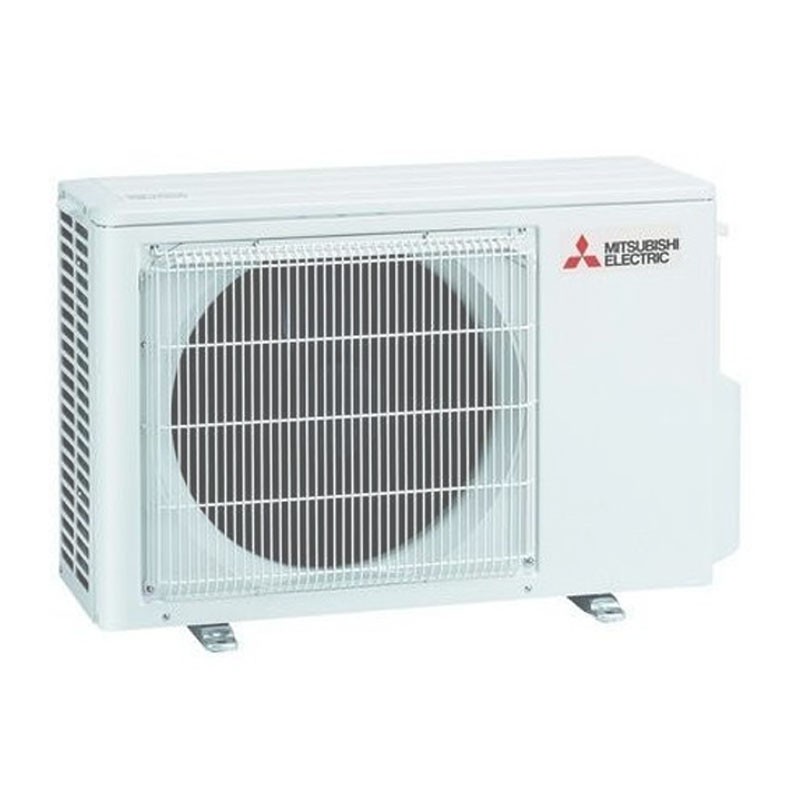

Dual MXZ Outdoor Unit:
- Dimensions: (HxWxD) 550x800x285mm
- Weight 37Kg
- Sound Pressure Level Min/Max dBa 47/51
- Sound Power Level dBA 64
- Power supply Single phase 220-240 / 50Hz
- Maximum current consumption 12.2A
- Liquid/Gas piping 6.35 (1/4") x 2 - 9.52 (3/8") x 2
- Max/min piping length 30/3 meters
- Max height difference between indoor/outdoor unit 15 meters
- Refrigerant Type: R32 Gas
- Guaranteed operating range Cooling °C -10 ~ +46
- Guaranteed operating range Heating °C -15 ~ +24
- Factory Gas Precharge Kg 0.9
- Refrigerant GWP2 / Tons. Co2 Eq 675 / 0.61
Data sheet
- Air conditioners:
- Dualsplit
- Gas:
- R32
- Power:
- 12+12 BTU
- Room Size:
- 35m²+35m²
- Energy class:
- A++
- Series:
- Smart
