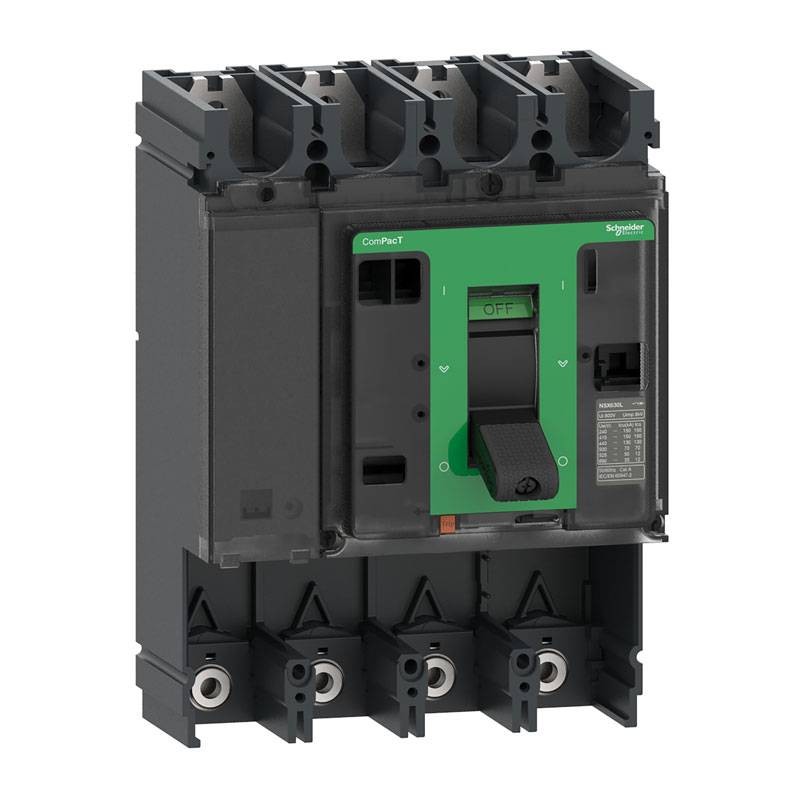

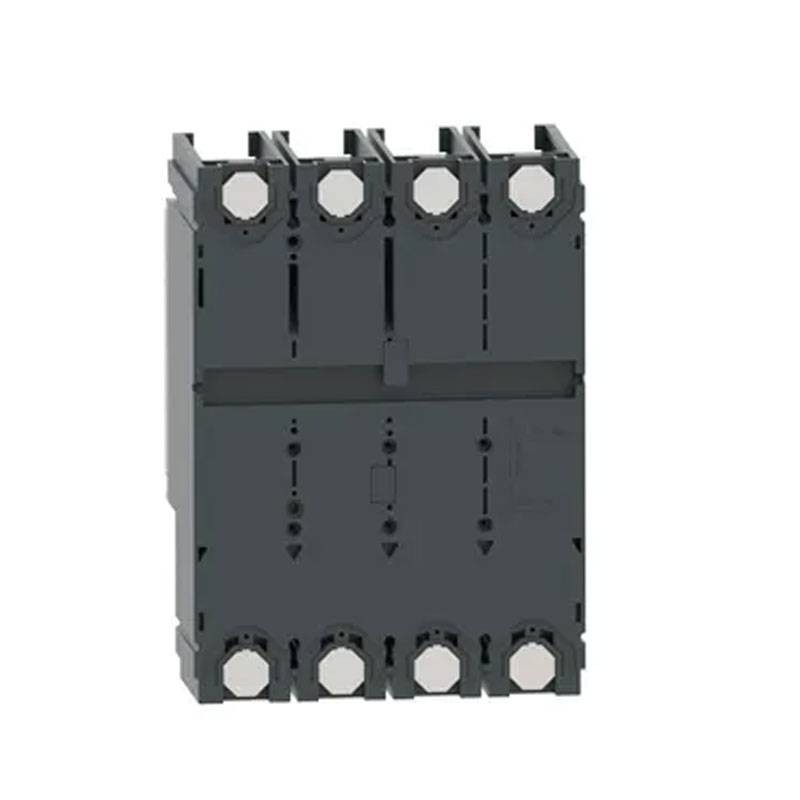

Schneider Circuit Breaker Without Trip ComPacT NSX630F 36kA 630A 4P C63F4
SNR C63F4
3606482003200
Schneider switch without ComPacT release with the following features:
- Type of product or component: Base frame
- Device application: Distribution
- Performance level: F 36 kA 415 V AC
- Number of poles: 4
- Rated current: 630A
- Rated operating voltage: 690V AC 50/60 Hz complying with IEC 60947-2
- Rated insulation voltage: 800V AC 50/60 Hz complying with IEC 60947-2
- Rated impulse withstand voltage: 8 kV complying with IEC 60947-2
- Degree of protection IP40 conforming to IEC 60529
- Degree of protection IK07 in accordance with IEC 62262
€2,009.15
€2,009.15
Tax included
Tax included
Items Available: 12
: 2
Frequently bought together
ComPacT NSX is designed to optimize space and outage capacity for all standard and specific applications
Strengths:
- This base frame is supplied without a breaker, and is compatible with any type of breaker to be ordered separately
- Icu interrupting capacity is 36kA at 415VAC 50/60Hz
- Operating voltage is 690VAC 50/60Hz (limited to 440VAC 50/60Hz if differential protection is present)
- Can be equipped with a variety of optional features and accessories
- Dimensions are 185mm x 255mm x 110mm
- Ensures compliance with international standards (IEC 60947), CCC, EAC and maritime specifications
- ComPacT NSX630F is part of the Schneider Electric EcoStruxure Power architecture
Advantages:
- Schneider Electric unmistakable green style for the entire ComPacT range
- Estimated 40% reduction in wiring time for panel builders. Experience easier installation thanks to new ergonomic front plate design
- Get assurance that all auxiliaries are in the right place and check that you have the right coil rating
- New ergonomic lever for easy manual switch operation
Features:
- Neutral position: They are off
- Mains type: Alternating current
- Insulation suitability: Yes in accordance with EN/IEC 60947-2
- Utilization category: A
- Mounting Mode: Fixed
- Mechanical durability: 15000 cycles complying with IEC 60947-2
- Mounting bracket: Back plate
- Elevation connection: Front
- Negative connection: Front
- Connection pitch: 45mm
- Dimensions: height 255mm - width 185mm - depth 110mm
- Ambient air temperature for operation: -25/+70 degrees
- Ambient air temperature for storage: -50/+85 degrees
Rated maximum short-circuit breaking capacity:
- 85 kA at 240 V AC 50/60 Hz in accordance with UL 508
- 25 kA Icu at 500 V AC 50/60 Hz complying with IEC 60947-2
- 36 kA Icu at 380/415 V AC 50/60 Hz complying with IEC 60947-2
- 10 kA Icu at 660/690 V AC 50/60 Hz complying with IEC 60947-2
- 40 kA Icu at 220/240 V AC 50/60 Hz complying with IEC 60947-2
- 35 kA at 480V AC 50/60 Hz complying with UL 508 - 20 kA at 600V AC 50/60 Hz complying with UL 508
- 20 kA Icu at 525 V AC 50/60 Hz complying with IEC 60947-2
- 30 kA Icu at 440 V AC 50/60 Hz complying with IEC 60947-2Type of control: On/off
Rated short-circuit service breaking capacity:
- 36 kA at 380/415 V AC 50/60 Hz complying with IEC 60947-2
- 10 kA at 660/690 V AC 50/60 Hz complying with IEC 60947-2
- 40 kA at 220/240 V AC 50/60 Hz complying with IEC 60947-2
- 10 kA at 525 V AC 50/60 Hz complying with IEC 60947-2
- 25 kA at 500 V AC 50/60 Hz complying with IEC 60947-2
- 30 kA at 440 V AC 50/60 Hz complying with IEC 60947 -2
Electrical durability:
- 6000 cycles 690V AC 50/60 Hz In/2 complying with IEC 60947-2
- 2000 cycles 690 V AC 50/60 Hz Compliant with IEC 60947-2
- 4000 cycles 440 V AC 50/60 Hz Complies with IEC 60947-2
- 8000 cycles 440 V AC 50/60 Hz In/2 Compliant with IEC 60947-2
There are no reviews
Data sheet
- Type: Switches
- Poles: 4P
- Breaking capacity: 36KA
- Amps: 630A
