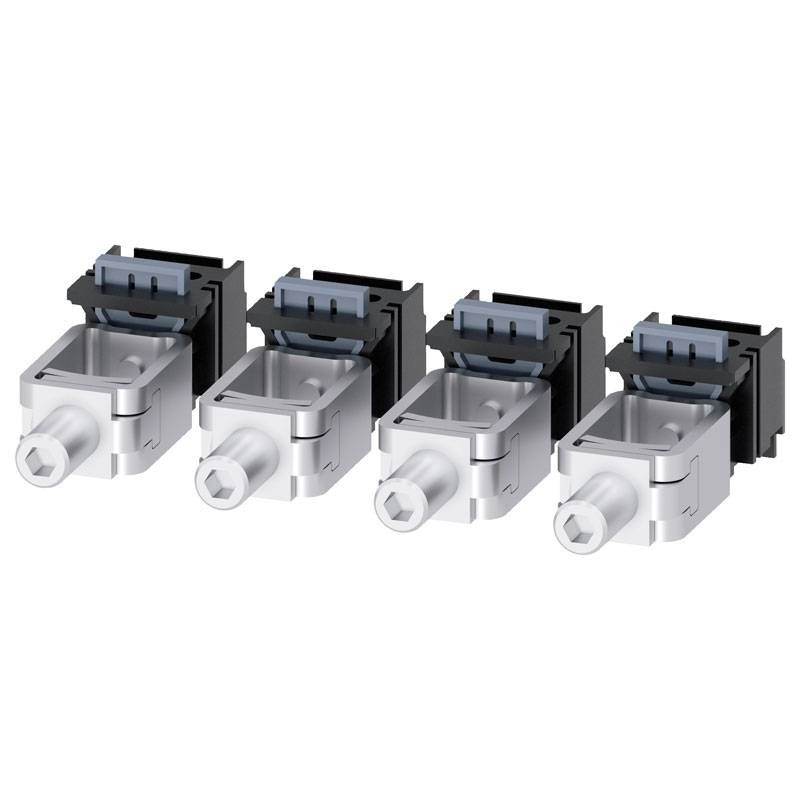

Siemens Sentron cable clamp terminals for 3VA10/11 1.5/70 sq. mm 4 pcs 3VA91540JA11
SIE 3VA91540JA11
4042949008057
Siemens Sentron cable clamp terminals for 3VA10/11 model TS1.1, ideal for ensuring secure and stable connection of multi-strand copper cables, supporting cable cross-sections from 1.5 mm² up to 70 mm², with the following features:
-
Compatible with multi-strand copper cables with cross sections from 1.5 mm² to 70 mm²
-
Connections conform to IEC standards for maximum safety
-
Recommended stripping length: 12 mm
-
Pack of 4 pieces
Siemens Sentron cable clamp terminals for 3VA10/11 1.5/70 sq. mm 4 pcs 3VA91540JA11
€19.46
€19.46
Tax included
Tax included
Items Available: 17
: 2
Frequently bought together
Siemens Sentron cable clamp terminals for 3VA10/11 1.5/70 sq. mm.
These cable clamp terminals are designed to ensure reliable and secure wiring by adapting to multi-strand copper cables of different cross sections. Compatibility with cable sizes ranging from 1.5 mm² to 70 mm² makes them versatile and ideal for many industrial applications.
IEC standards and ease of installation
The cable clamps, which conform to IEC standards, are designed for secure electrical connection. The recommended stripping length of 12 mm facilitates installation and ensures a stable connection, reducing assembly time.
Detailed technical specifications:
-
Connection terminal designation: TS1.1
-
Compatibility: Siemens Sentron 3VA10/11 circuit breakers
-
Connections conforming to: IEC
-
For multiwire copper cable: Min. 1.5 mm², Max. 70 mm²
-
Stripping length: 12 mm
-
Permissible conductor temperature: Up to 75 °C
-
Set contents: 4 pieces
There are no reviews
Data sheet
- Type: Switches
