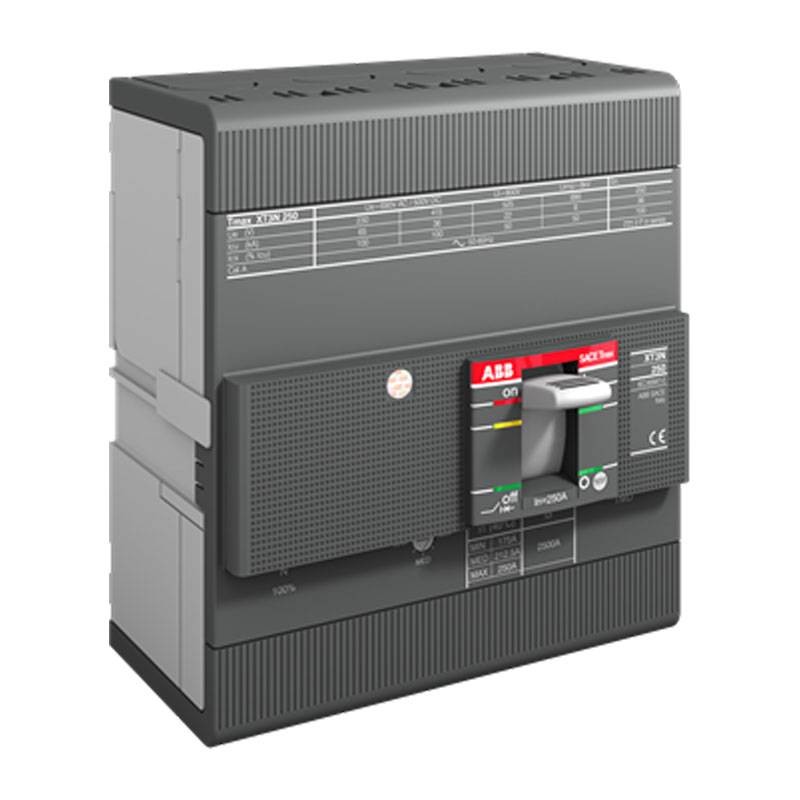

Abb Moulded Case Circuit Breaker XT3N 3X250A+N/2 36KA XT3N250TMD4

Abb
ABB XT3N250TMD4 8015644019679

Abb XT3N 3X250A+N/2 36KA TMAX fixed tetrapolar Moulded case circuit breaker with thermomagnetic TMD R 250-2500A front terminals.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Abb Moulded Case Circuit Breaker XT3N 3X250A+N/2 36KA XT3N250TMD4

€987.35
€987.35

Abb Moulded Case Circuit Breaker XT3N 3X250A+N/2 36KA XT3N250TMD4

€987.35
Tax included
Items Available: 12
Further availability of the manufacturer

Abb Moulded Case Circuit Breaker XT3N 3X250A+N/2 36KA XT3N250TMD4

€987.35

Buy it within and receive it from Wednesday, 18 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Features:

  • Product width: 140 mm
  • Product height: 150 mm
  • Product depth: 70 mm
  • Product net weight: 2.1 kg
  • Type of switch to be associated with: Power Distribution
  • Main product type: SACE Tmax XT
  • Product Name: Molded Case Circuit Breaker
  • Product type: Automatic Circuit Breaker
  • Version: F
  • Cable cross-sections-main circuit: Busbar 85..192 mm²
  • Current Type: AC/DC
  • Electrical life: 120 cycles per hour - 8000 cycle(s)
  • Mechanical life: 240 cycles per hour - 25000 cycle(s)
  • Number of poles: 4
  • Opening time: CB with SOR 15 ms - CB with UVR 15 ms
  • Multiple order: 1 piece(s)
  • Power loss: at Rated Operating Conditions per pole 17.8 W
  • Rated current (In): 250 A
  • Rated frequency (f): 50 / 60 Hz
  • Impulse withstand voltage (Uimp): 8 kV
  • Rated instantaneous short-circuit current setting (Ii): 2500 A
  • Rated insulation voltage (Ui): 800 V
  • Rated operating voltage: 690 V AC 500 V DC
  • Rated service short-circuit rating (Ics): (220 V AC) 50 kA - (230 V AC) 50 kA - (240 V AC) 50 kA - (380 V AC) 27 kA - (415 V AC) 36 kA - (440 V AC) 19 kA - (500 V AC) 15 kA - (525 V AC) 9.75 kA - (690 V AC) 3.75 kA - (250 V DC) 2 Poles in Series 36 kA - (500 V DC) 3 Poles in Series 50 kA
  • Rated extreme short-circuit capacity (Icu): (220 V AC) 50 kA - (230 V AC) 50 kA - (240 V AC) 50 kA - (380 V AC) 36 kA - (415 V AC) 36 kA - (440 V AC) 36 kA - (500 V AC) 20 kA - (525 V AC) 13 kA - (690 V AC) 5 kA - (250 V DC) 2 Poles in Series 36 kA - (500 V DC) 3 Poles in Series 50 kA
  • Rated uninterrupted current (Iu): 250 A
  • Rated voltage (Ur): 690 V
  • Recommended screwdriver: M8 Main Circuit
  • Trip: TMD
  • Trip type: TM
  • Setting range: 175...250 A
  • Short-circuit performance level: N
  • Reference Standards: IEC60947-2
  • Subtype: XT3
  • Terminal connection type: Front
  • Clamp type: Bolt
  • Tightening torque: 8 N-m.

There are no reviews

Data sheet

Type:
Switches
Poles:
4P
Breaking capacity:
36KA
Amps:
250A
