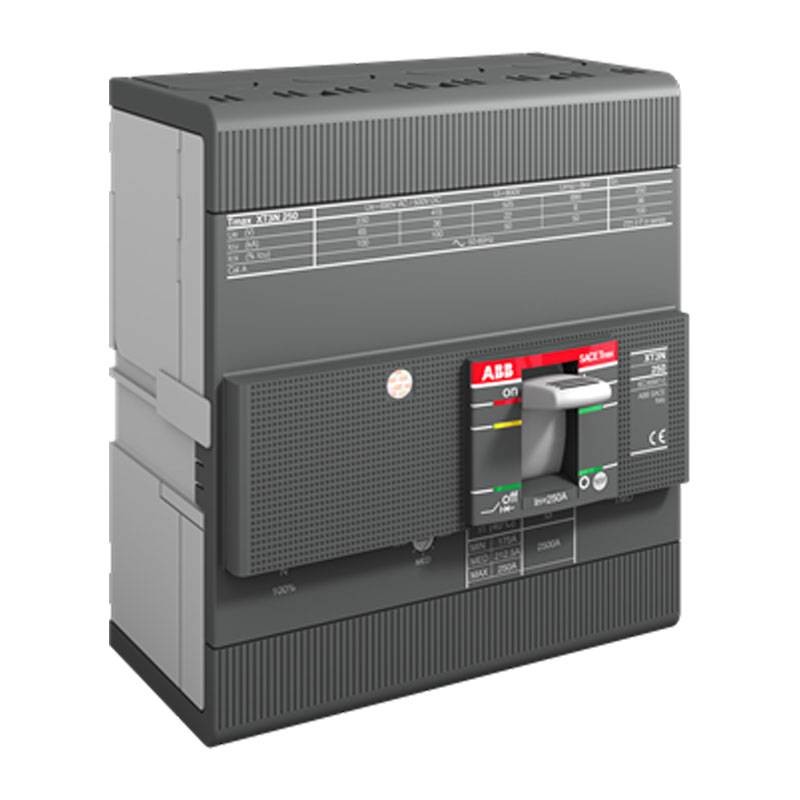

Abb Moulded Case Circuit Breaker XT3N 4x200A 36kA XT3N200TMD4

Abb
ABB XT3N200TMD4 8015644019662

Abb XT3N 4x200A 36kA fixed tetrapolar Moulded case circuit breaker with thermomagnetic TMD R 200-2000A front terminals.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Abb Moulded Case Circuit Breaker XT3N 4x200A 36kA XT3N200TMD4

€981.21
€981.21

Abb Moulded Case Circuit Breaker XT3N 4x200A 36kA XT3N200TMD4

€981.21
Tax included
Items Available: 9
Further availability of the manufacturer

Abb Moulded Case Circuit Breaker XT3N 4x200A 36kA XT3N200TMD4

€981.21

Buy it within and receive it from Friday, 20 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Features:

  • Product width: 140 mm
  • Product height: 150 mm
  • Product depth: 70 mm
  • Product net weight: 2.1 kg
  • Type of switch to be associated with: Power Distribution
  • Main product type: SACE Tmax XT
  • Product Name: Molded Case Circuit Breaker
  • Product type: Automatic Circuit Breaker
  • Version: F
  • Cable cross-sections-main circuit: Busbar 85..192 mm²
  • Current Type: AC/DC
  • Electrical life: 120 cycles per hour 8000 cycle(s)
  • Mechanical life: 240 cycles per hour - 25000 cycle(s)
  • Number of poles: 4
  • Opening time: CB with SOR 15 ms - CB with UVR 15 ms
  • Multiple order: 1 piece(s)
  • Power loss: at Rated Operating Conditions per pole 13.2 W
  • Rated current (In): 200 A
  • Rated frequency (f): 50 / 60 Hz
  • Impulse withstand voltage (Uimp): 8 kV
  • Rated instantaneous short-circuit current setting (Ii): 2000 A
  • Rated insulation voltage (Ui): 800 V
  • Rated operating voltage: 690 V AC - 500 V DC
  • Rated service short-circuit rating (Ics): (220 V AC) 50 kA - (230 V AC) 50 kA - (240 V AC) 50 kA - (380 V AC) 27 kA - (415 V AC) 36 kA - (440 V AC) 19 kA - (500 V AC) 15 kA - (525 V AC) 9.75 kA - (690 V AC) 3.75 kA - (250 V DC) 2 Poles in Series 36 kA - (500 V DC) 3 Poles in Series 50 kA
  • Rated extreme short-circuit capacity (Icu): (220 V AC) 50 kA - (230 V AC) 50 kA - (240 V AC) 50 kA - (380 V AC) 36 kA - (415 V AC) 36 kA - (440 V AC) 36 kA - (500 V AC) 20 kA - (525 V AC) 13 kA - (690 V AC) 5 kA - (250 V DC) 2 Poles in Series 36 kA - (500 V DC) 3 Poles in Series 50 kA
  • Rated uninterrupted current (Iu): 250 A
  • Rated voltage (Ur): 690 V
  • Recommended screwdriver: M8 Main Circuit
  • Trip: TMD
  • Trip type: TM
  • Setting range: 140...200 A
  • Short-circuit performance level: N
  • Reference Standards: IEC60947-2
  • Subtype: XT3
  • Clamp connection type: Front
  • Clamp type: Bolt
  • Tightening torque: 8 N-m.

There are no reviews

Data sheet

Type:
Switches
Poles:
4P
Breaking capacity:
36KA
Amps:
200A
