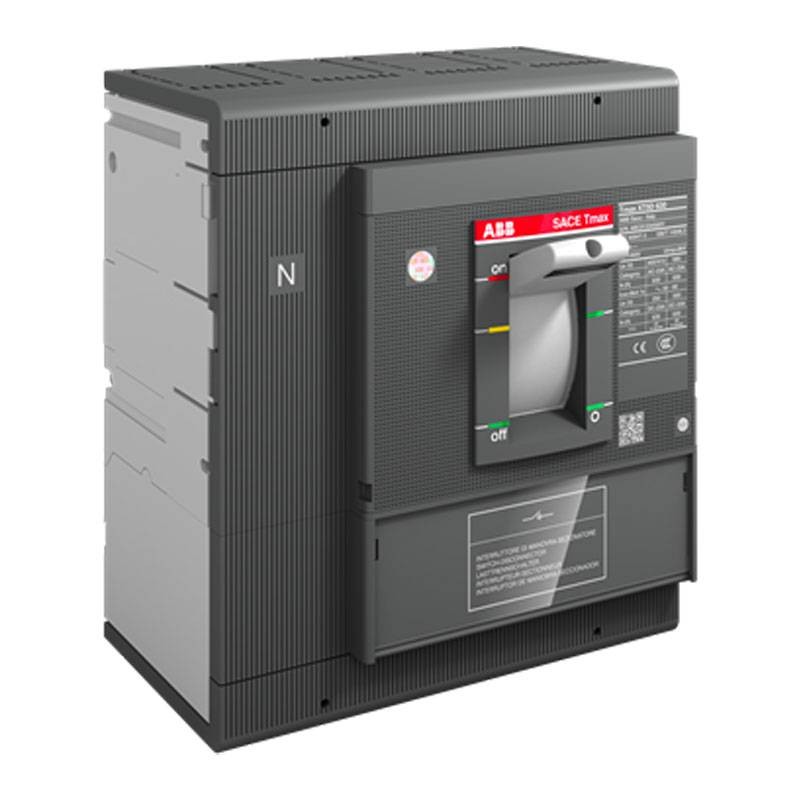

Abb XT5D four-pole switch 630A 4P 690V 1SDA100549R1
ABB 1SDA100549R1
8056221006255
Abb Tmax XT5D disconnect switch is a reliable solution for the management and protection of electrical systems, offers high safety and durability, ideal for industrial and commercial applications, with the following features:
-
Rated current: 630A
-
Configuration: 4-pole (four-pole)
-
Rated operating voltage: 690V AC / 750V DC
-
Rated insulation voltage: 1000V
-
Dimensions: 186x205x103.5 mm (W-H-P)
€2,338.34
€2,338.34
Tax included
Tax included
Items Available: 3
: 2
Frequently bought together
Abb XT5D four-pole circuit breaker 630A 4P 690V
Switch-disconnector designed to ensure reliability and safety in electrical systems. With an uninterrupted current rating of 630A, it can handle high loads without compromising on performance.
With its high insulation voltage rating (1000V) and impulse withstand up to 8kV, it ensures protection and operational stability even in complex industrial environments.
Applications and Uses
LXT5D 630A is ideal for various applications, including:
-
Industrial switchboards and distribution boards
-
Power systems for machinery and manufacturing plants
-
Medium-voltage applications for circuit disconnection
Due to its ability to operate with alternating current (AC) and direct current (DC), it offers high flexibility of use.
Ease of Installation and Connection
Equipped with front terminals, the XT5D 630A switch-disconnector is designed for quick and safe installation. Compact in size, it allows optimal integration into electrical panels.
Technical Specifications.
-
Rated short-time withstand current: 7.6 kA
-
Rated impulse withstand voltage: 8kV
-
Installation with front terminals
-
Type of connection: front terminals
-
Width: 186mm
-
Height: 205 mm
-
Depth: 103.5 mm
There are no reviews
Data sheet
- Type: Switches
- Poles: 4P
- Amps: 630A
