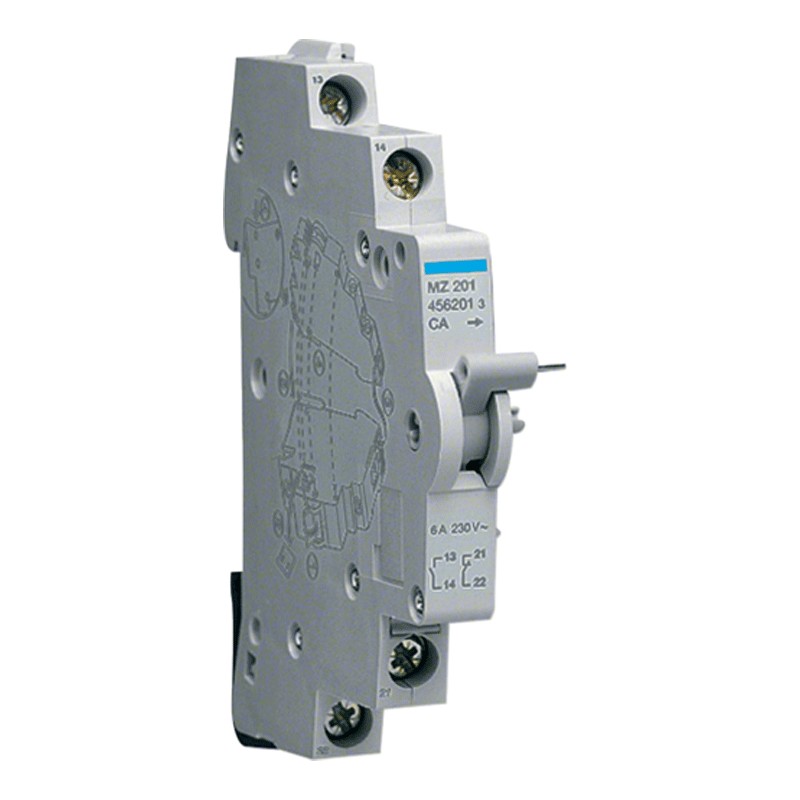

Hager Auxiliary Contact 6A 1NA+1NC 0.5 MZ201 Modules
HAG MZ201
3250614562013
Hager auxiliary contact for circuit breakers:
- Rated operating current in AC1 6A
- Contact type 1NC+1NO
- 0.5 Modules
- Rated operating voltage AC 230 / 415V
Hager Auxiliary Contact 6A 1NA+1NC 0.5 MZ201 Modules
€21.61
€21.61
Tax included
Tax included
Items Available: 39
: 14
Frequently bought together
Features:
- AC power supply voltage type
- Rated insulation voltage 4000 V
- Maximum utilization voltage 240 V
- Rated DC voltage 12 / 250 V
- Rated operating current in AC1 6 A
- Rated current in A 6 A
- Imin=f(U=12V DC) of power circuit 0.3 A
- Imin = f(U = 230V DC) 0.6 A
- Imin = f(U = 400V AC) of the power circuit 3 A
- Total power dissipation 0.1 W
- Electrical life and number of cycles 6000
- Number of maneuvers (mechanical life) 12000
- Depth of the installed product 40 mm
- Height of the installed product 80 mm
- Width of installed product 9.5 m
- Tightening torque 1.2Nm
- Minimum cross-section with flexible cable 6mm²
- Minimum cross-section with rigid cable 10mm²
- Contact type 1NC+1NO
- Type of screw connection
- Quantity of NC contacts 1
- Quantity of NO contacts 1
- Operating temperature -25/+60°C
- Tropicalized execution 95% / 80°C
- Storage/transport temperature -40/+80 °C
There are no reviews
Data sheet
- Type: Auxiliary Contacts
- Modules: 0.5
- Amps: 6A
