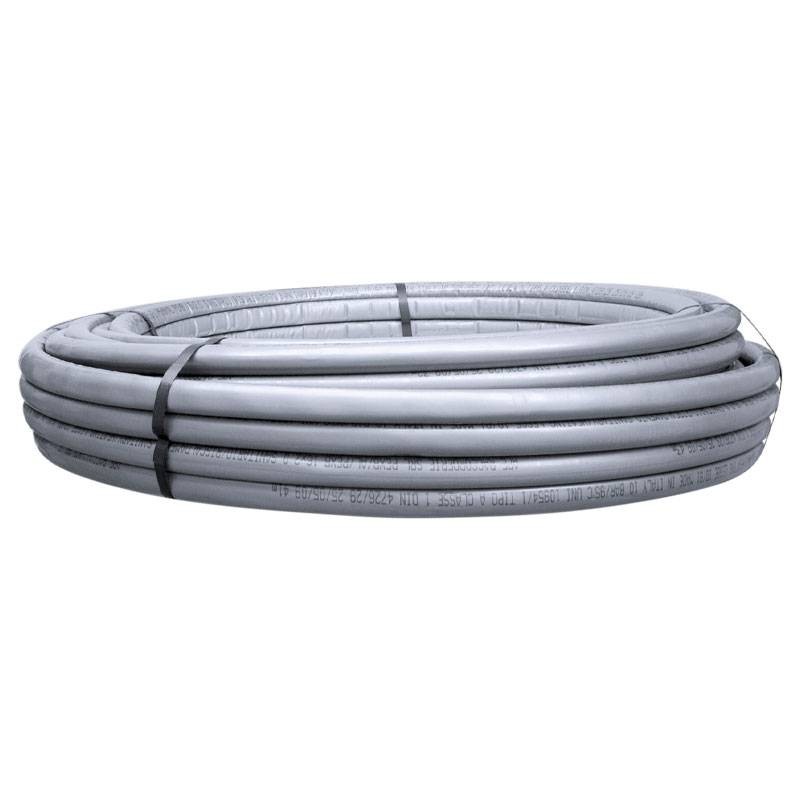

Ape Multilayer pipe for heating 32x3 mm 25m 9MR45323025F
55X 9MR45323025F
8033708089666
Ape PE-xB/Al/PE-xB multilayer pipe for heating systems with the following characteristics:
- Size: 32x3 mm
- Outer diameter: 32 mm
- Sheath thickness: 9 mm
- Pipe + sheath diameter: 58 mm
- Roll length: 25 meters
Sale price is per meter, sellable by 25-meter hank.
Ape Multilayer pipe for heating 32x3 mm 25m 9MR45323025F
€4.16
€4.16
Tax included
Tax included
Items Available: 1650
: 900
Composed of a double inner and outer layer of cross-linked polyethylene, bonded by special adhesive to a longitudinally welded aluminum alloy intermediate layer and a closed-cell polyethylene foam insulation sheath, plus a scratch-resistant finishing film. The pipe provides a high level of structure moldability, complete oxygen barrier total hygiene and high corrosion resistance due to fluid conduction in the inner PE-xB layer.
Features:
- Water volume: 0.531 l/min
- Internal roughness: 7 µm
- Sheath thermal conductivity at 40 °C: 0.0397 W/mK
- Sheath density: 35 ÷45 kg/m3
- Cross-linking degree: > 65%
- Color: Gray
- Pipe material: Multilayer
- Sheath material: PE-LD closed-cell expanded polyethylene
- Scratch-resistant finish film material: PE-LD closed-cell expanded polyethylene
- Continuous use temperature: 95 degrees
- Maximum peak temperature: 110 degrees
- Minimum operating temperature: -30 degrees
- Maximum operating pressure at 95 degrees C: 10 bar
- Maximum working pressure at 20 degrees C: 30 bar
- Avoid prolonged exposure to direct sunlight
- RECOMMENDATIONS: avoid installation outdoors and/or in unheated rooms
There are no reviews
Data sheet
- Diameter:
- 32mm
- Type:
- Multilayer pipes
