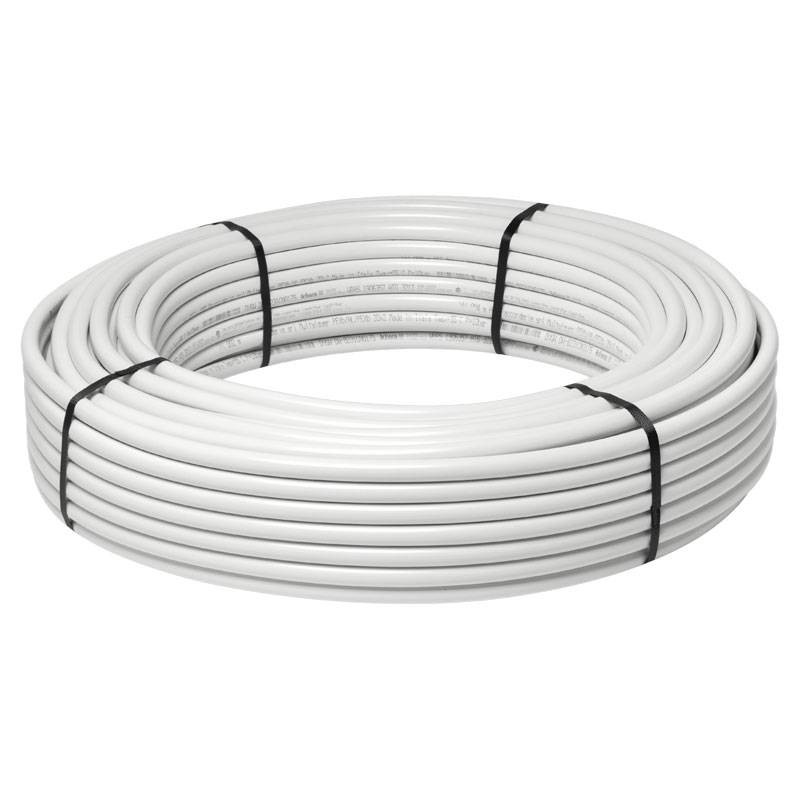

Ape Multilayer pipe for water PVC 26x3 mm 50m 9MN04263050F
55X 9MN04263050F
8033708089451
Ape PEXB/AL/PEXB multilayer pipe for water systems with the following characteristics:
- Size: 26x3 mm
- Outer diameter: 26 mm
- Thickness: 3 mm
- Roll length: 50 meters
The selling price is per meter, sellable by hank of 50 meters.
Ape Multilayer pipe for water PVC 26x3 mm 50m 9MN04263050F
€2.00
€2.00
Tax included
Tax included
Items Available: 1150
: 760
This pipe consists of a double inner and outer layer of cross-linked polyethylene PE-xB (silane method-B) bonded by a special adhesive to a longitudinally welded aluminum alloy intermediate layer (TIG head to head). This structure is highly moldable, provides a complete oxygen barrier, ensures total hygiene and high corrosion resistance as fluids come into contact only with the inner PE-xB layer.
Features:
- Inner roughness: 7 µm
- Sheath thermal conductivity at 40 °C: 0.0397 W/mK
- Sheath density: 35 ÷45 kg/m3
- Degree of cross-linking: >65%
- Color: White
- Pipe material: Multilayer
- Sheath material: PE-LD closed-cell expanded polyethylene
- Scratch-resistant finish film material: PE-LD closed-cell expanded polyethylene
- Continuous use temperature: 95 degrees
- Maximum peak temperature: 110 degrees
- Minimum operating temperature: -30 degrees
- Maximum operating pressure at 95 degrees C: 10 bar
- Maximum operating pressure at 20 degrees C: 30 bar
There are no reviews
Data sheet
- Diameter:
- 26mm
- Type:
- Multilayer pipes
