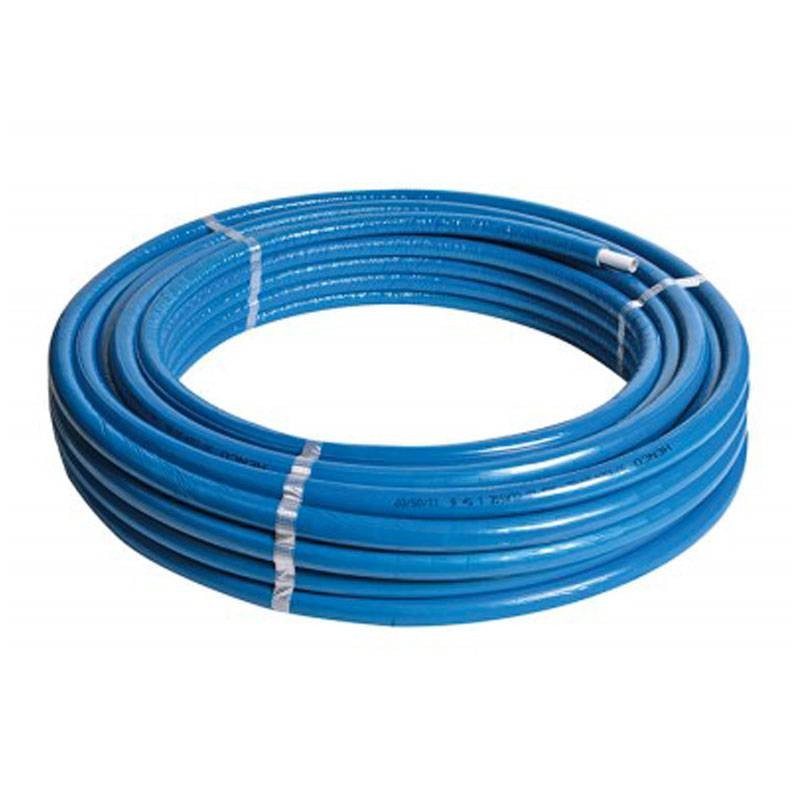

Cappellotto Multilayer pipe RIXc PE-Xc /AL/PE-Xc 26x3 blue 50 meters 50ISO13R26BL
HCO 50ISO13R26BL
5414764056398
Cappellotto RIXc PE-Xc/Al/PE-Xc Multilayer pipe with the following characteristics:
Â
- Outer diameter: 26 mm
- Inner diameter: 20 mm
- Thickness: 3 mm
- Max operating temperature: 95 degrees
- Max operating pressure: 10 bar
- Coefficient of thermal conductivity: 0.43 W/mk
- Coefficient of linear expansion: 0.025 mm/mK
- Minimum adhesive layer traction: 30 N/10mm
- Inner tube surface roughness: 7
- Flow rate: 0.314 l/m
Â
Selling price is per meter, vendible by hank of 50 meters.
Cappellotto Multilayer pipe RIXc PE-Xc /AL/PE-Xc 26x3 blue 50 meters 50ISO13R26BL
€6.89
€6.89
Tax included
Tax included
Items Available: 300
: 240
Due to the presence of the aluminum layer, the coefficient of expansion of the HENCO pipe is comparable to that of a copper pipe and 8 times lower than the coefficient of expansion of a common plastic pipe. The coefficient of expansion is 0.025 mm/mK.
Â
The smooth surface of the inner and outer pipe does not allow dirt to accumulate, preventing sedimentation and corrosion. The reduced roughness of the inner tube also ensures minimal pressure loss.
Â
After being bent, the tube maintains the desired shape because it has no thermal memory like other plastic tubes. This feature simplifies and speeds up pipe laying and fitting.
Â
The outer and inner pipe are made of polyethylene cross-linked by electron beams. Therefore, the pipe is not subject to wear, even at high temperatures and flow rates.
Â
The integrated aluminum layer prevents oxygen from penetrating the pipe, preventing corrosion problems to any metal components in the system.
Â
In contrast to metal pipes, by choosing the right pipe diameter, there is no noise pollution due to the passage of water. Contact noises can be avoided by properly fitting the pipe.
Â
The hose meets the most stringent toxicological and hygienic requirements. It is 100% suitable for the transport of potable water. It is also resistant to various chemical liquids.
Â
HENCO's STANDARD multilayer pipe is suitable for every application:
- Drinking water: As pipes for hot/cold domestic water and for all possible qualities of drinking water (according to European standard 98/83/EC)
- Heating: As a radiant pipe within the loads stipulated by the KOMO quality mark
- Floor heating: For heating and cooling of floors, walls and ceilings
- Rainwater: As rainwater pipe for reuse within buildings within prescribed loads
- Gas: As gas pipeline in countries where the system has been approved and relevant certification is available
- Compressed air: As compressed air pipeline for oil-free systems (with oil filter preinstalled)
- Heating oil: As pipeline for heating oil within prescribed loads
Â
Characteristics:
- Declared coefficient of thermal conductivity 0.43 W/mK
- Coefficient of linear expansion 0.025 mm/mK
- Surface roughness of inner pipe 0.007 mm
- Oxygen diffusion 0 mg/l
- Minimum tensile strength adhesive layer 30 N/10 mm
- Minimum degree of cross-linking 60 %
- Maximum operating temperature 95 °C
- Minimum aluminum thickness 0.40 mm
- Maximum pressure 10 bar
- Temperature resistance from -40°C to +100°C
- Operating temperature from +5°C to +100°C
- Soundproofing up to 23 dB(A)
- Water vapor diffusion resistance factor 6415
There are no reviews
Data sheet
- Diameter:
- 26mm
- Type:
- Multilayer pipes
