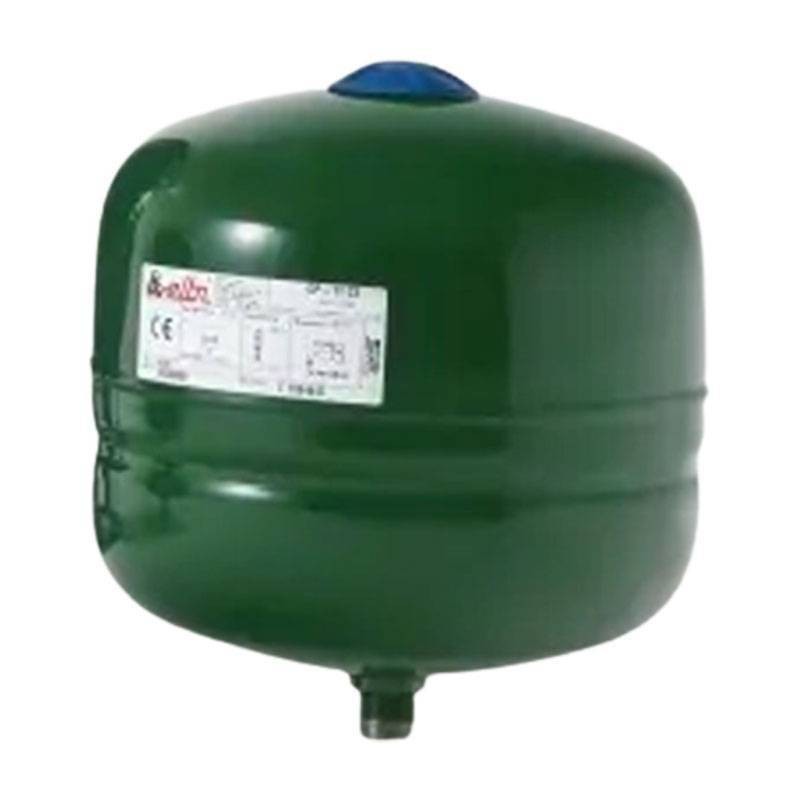

Elbi DP-18 CE multifunctional tank for heating/water 18 liters A2C2L24
ELB A2C2L24
8019742105234
Elbi DP-18 CE multifunctional membrane tank for heating/sanitary water with the following characteristics:
- Capacity: 18 liters
- Precharge pressure: 2.5 bar
- Max pressure: 10 bar
- Food-grade fixed butyl rubber diaphragm
- Food grade butyl rubber protective sheath
- Long-lasting epoxy powder coating, green color
- Height: 400 mm
- Diameter: 270 mm
- DN1: 3/4 inch
The multifunctional sanitary tank has the advantage that it can be installed both as an expansion vessel in heating systems, thus suitable for absorbing volume changes caused by temperature rise, and as an autoclave in sanitary systems.
Elbi DP-18 CE multifunctional tank for heating/water 18 liters A2C2L24
€40.97
€40.97
Tax included
Tax included
Items Available: 43
: 12
The multifunctional sanitary tank has the advantage of being able to be installed both as an expansion vessel in heating systems, thus suitable for absorbing volume changes caused by temperature rise, and as an autoclave in sanitary hot water systems.
Multifunctional sanitary tanks with fixed membranes have the advantage of being able to be used both as expansion vessels in domestic hot water systems or heating systems, thus suitable for absorbing volume changes caused by temperature rise, and as autoclaves in cold water sanitary systems.
This dual use is made possible by the protective liner with patented fastening system that ensures protection against corrosion of the inner tank wall and suitability for contact with sanitary water.
In installations in sanitary systems, the vessel should be connected to the cold water inlet (not the hot water outlet).
Characteristics:
- Min./max. operating temperature: -10° / +99°C
- Hydrostatic test pressure: 14.3 bar
- Food-grade fixed butyl rubber diaphragm
- Protective sheath made of food-grade butyl rubber
- Hexagon nut with galvanized steel ring nut
- Carbon steel seaming ring
- Long-lasting epoxy powder coating, green color
- Double protection (Membrane + Protective sheath)
- INOX fitting for maximum water healthiness
- Zero maintenance
There are no reviews
Data sheet
- Type:
- Multifunctional tanks
- Capacity:
- 18 Liters
