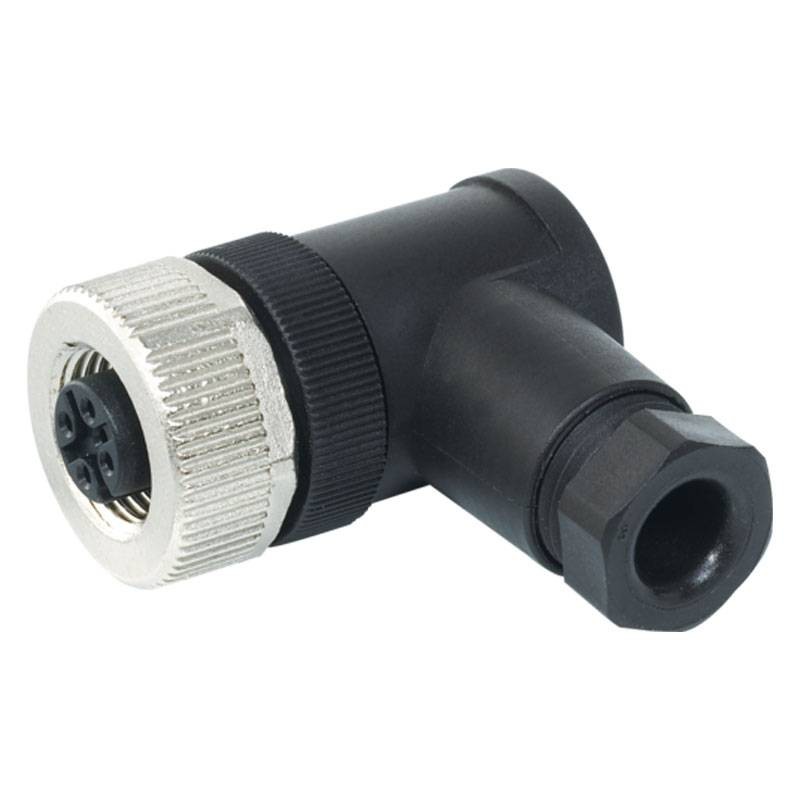

Murr connector M12 female 90° wire 4P 4A 7000129810000000

Murr Elektronik
MUE 7000129810000000 4048879201520

Murr M12 female 90° connector wire screw terminals with the following characteristics:

  • Maximum operating voltage: 250V AC/DC
  • 4 poles
  • Operating current per contact: max 4A
  • Connector locking: Thread (M12×1 mm) tightening torque 0.6 Nm self-locking
  • Cable gland: M12
  • Degree of protection: IP67 with connector inserted and locked (EN 60529)
  • Temperature range: -40/+85 degrees

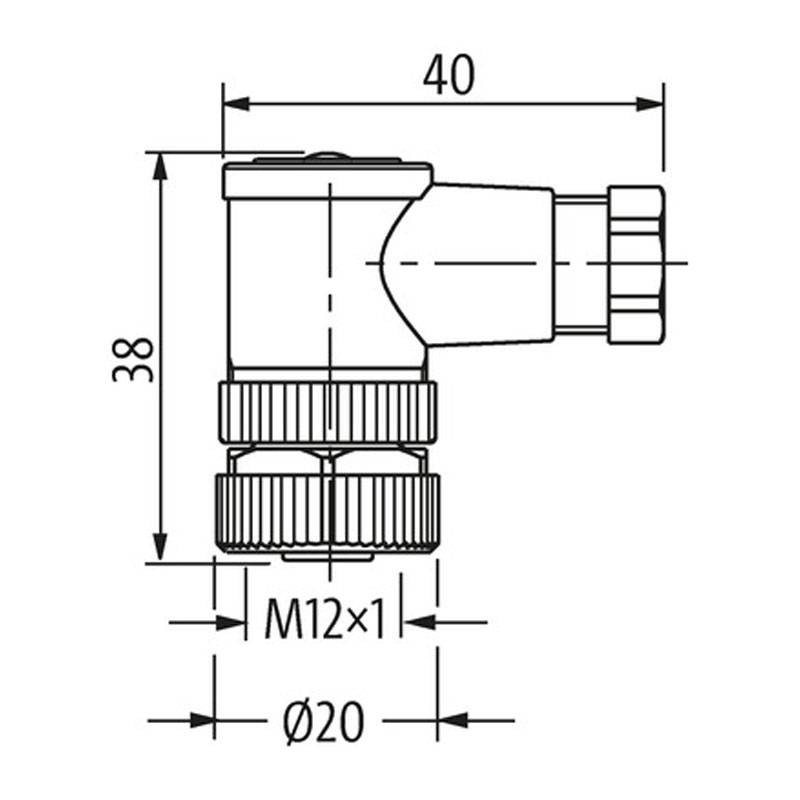

  • Dimensions:35×35×20 mm (H×W×D)
Do you have questions about this product or did you not find what you were looking for? Ask us!

Murr connector M12 female 90° wire 4P 4A 7000129810000000

€8.21
€8.21

Murr connector M12 female 90° wire 4P 4A 7000129810000000

€8.21
Tax included
Items Available: 91
Further availability of the manufacturer

Murr connector M12 female 90° wire 4P 4A 7000129810000000

€8.21

Buy it within and receive it from Wednesday, 13 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • 90° female
  • M12
  • 4 poles
  • Screw terminals
  • Clamping range (cable Ø): 4 ... 6 mm
  • Resistance to aggressive agents must be tested for the individual application
  • Plastic housings with good resistance against chemicals and oils

There are no reviews

Data sheet

Type:
Connectors
Poles:
4P
Degree of protection:
IP67
Amps:
4A
