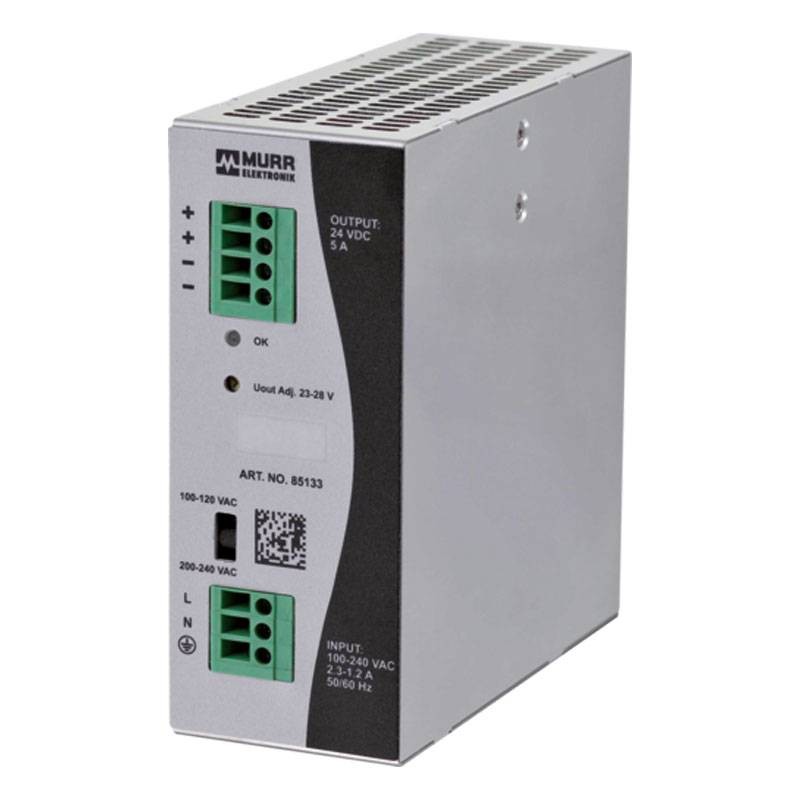

Murr ECO-RAIL-2 single-phase power supply unit 5A 24 V DC 85133
MUE 85133
Murr ECO-RAIL-2 single-phase power supply with the following characteristics:
- Input voltage: 100 240 V AC
- Input current: 2.4 A (100 V AC) - 1.2 A (240 V AC)
- Output voltage: 24 V DC ±1%; 23 ... 28 V adjustable
- Output current: 5 A (+40 °C); 4 A (+55 °C)
- Frequency: 50 to 60 Hz
- Input fuse (internal): 5 A (T)
Murr ECO-RAIL-2 single-phase power supply unit 5A 24 V DC 85133
€78.24
€78.24
Tax included
Tax included
Items Available: 3
Features:
- Mounting type: pluggable onto DIN rail TH35 (EN 60715).
- Temperature range: 0 - +40 °C, +55 °C derating (storage temp -20 - +85 °C)
- Relative humidity: 20 - 90%, non-condensing
- Degree of protection: IP20
- Efficiency: 87% (115 V AC) - 88% (230 V AC
- Connection: Screw terminals

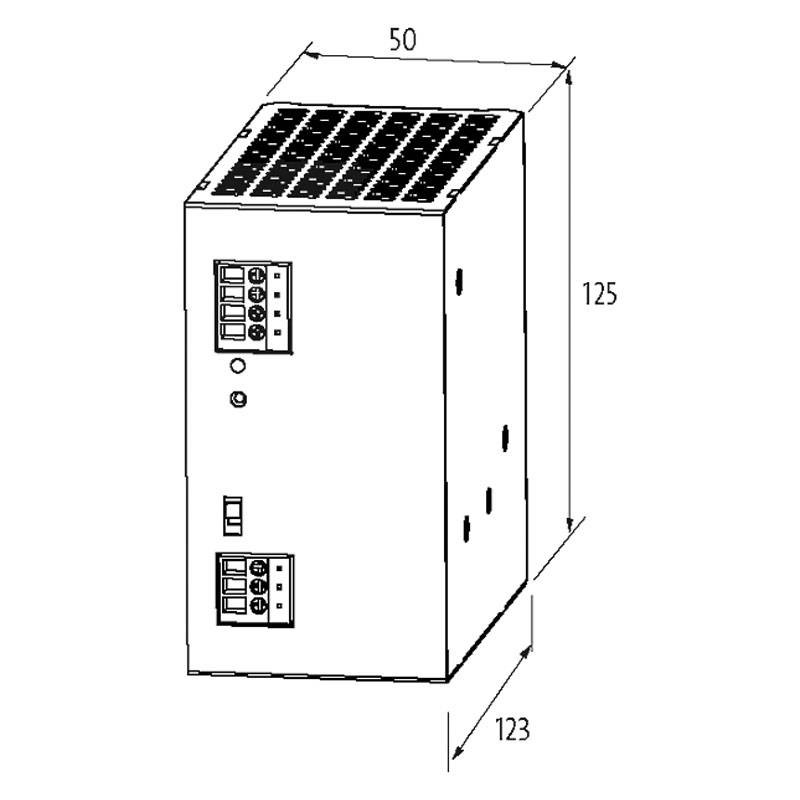

- Dimensions: 125×50×123 mm (H×W×D)
Output:
- Output voltage: 24 V DC ±1%; 23 ... 28 V adjustable
- LED indicator (green) for output voltage
- Output current: 5 A (+40 °C); 4 A (+55 °C)
- Min. hold time: 45 ms (115 V AC) - min. 45 ms (230 V AC)
- Residual ripple max: 10 mV eff/rms
- Peak max: 50 mV ss/pp
- Protective device protected against short circuit and overload
- Parallel/series use no/yes (max. 2 units)
Input:
- Input voltage: 100 ... 240 V AC
- Input current: 2.4 A (100 V AC); 1.2 A (240 V AC)
- Peak current at power-on after 1 ms max. 20 A (230 V AC)
- Frequency: 50 to 60 Hz
- Input fuse (internal) 5 A (T)
There are no reviews
Data sheet
- Type:
- Power supplies
- Voltage:
- 24V
- Degree of protection:
- IP20
- Amps:
- 5A
