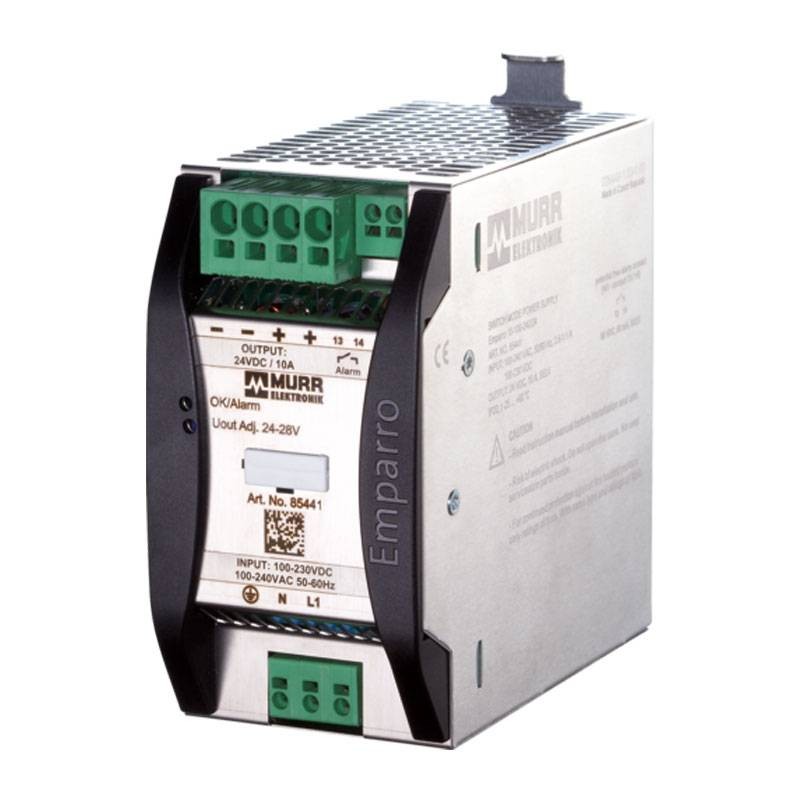

Murr Emparro 10A 24VDC single-phase switching power supply 85441
MUE 85441
4048879381499
Murr Emparro single-phase switching power supply with the following characteristics:
- Output voltage: 24 V DC (SELV), ±1%; 24...28 V adjustable
- Output current: 10A
- Input voltage: 85...265 V AC/90...250 V DC
- Input current: 2.6 A (100 V AC); 1.1 A (240 V AC)
- Peak current at turn-on after 1 ms: max. 13A
- Frequency 50 - 60 Hz
- Input fuse (internal) 6.3 A (T)
Murr Emparro 10A 24VDC single-phase switching power supply 85441
€244.95
€244.95
Tax included
Tax included
Items Available: 9
: 2
Features:
- Mounting type: pluggable onto DIN rail TH35 (EN 60715).
- Temperature range: -40 - +60 °C, +70 °C derating (storage temp -40 - +80 °C)
- Relative humidity: 5 - 95%, non-condensing
- Degree of protection: IP20
- Efficiency: 92.8% (110 V AC); 94.3% (230 V AC
- Connection Plug-in spring terminals

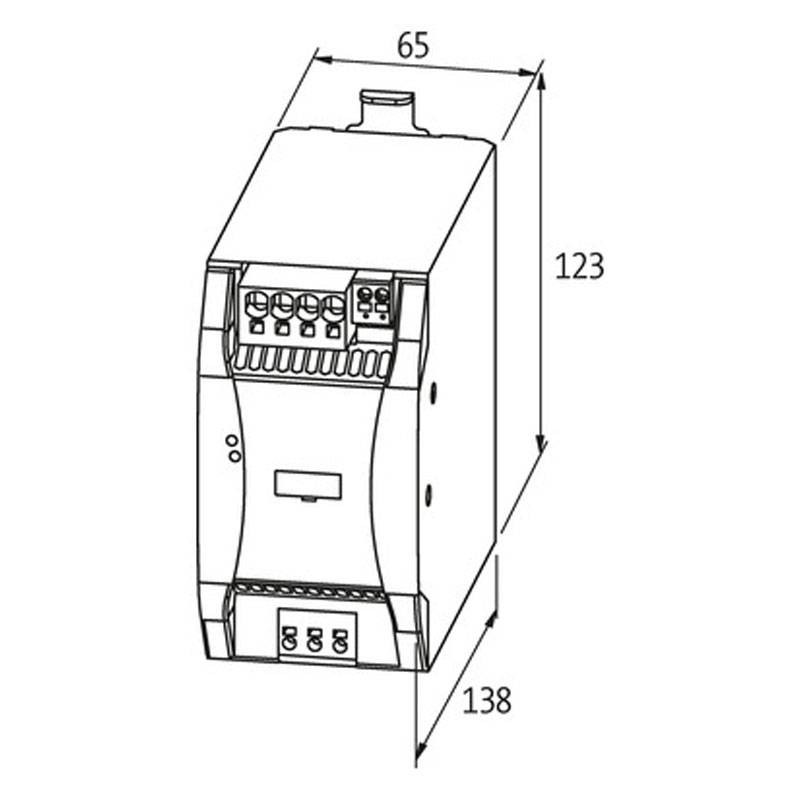

- Dimensions: 123×65×138 mm (H×W×D)
Output:
- Output voltage: 24 V DC (SELV), ±1%; 24...28 V adjustable
- Power Boost: Iout N × 150% (min. 4 s)
- LED indicator (green): OK - LED (red): overload, overheating or short circuit
- Output current: 10 A
- Hold time min: 30 ms (100 V AC) - 5 A (24 V DC)
- Max residual ripple: 50 mV eff/rms
- Peak max: 200 mV ss/pp
- Protective device protected against short circuit and overload
- Parallel/serial use max. 5 units/max. 2 units
Input:
- Input voltage: 85...265 V AC/90...250 V DC
- Input current: 2.6 A (100 V AC) - 1.1 A (240 V AC)
- Peak turn-on current after 1 ms: max. 13 A (230 V AC)
- Power factor 0.95 (230 V AC)
- Frequency: 50 - 60 Hz
- Input fuse (internal) 6.3 A (T)
There are no reviews
Data sheet
- Type:
- Power supplies
- Voltage:
- 24V
- Degree of protection:
- IP20
- Amps:
- 10A
- Connection:
- Single-phase
