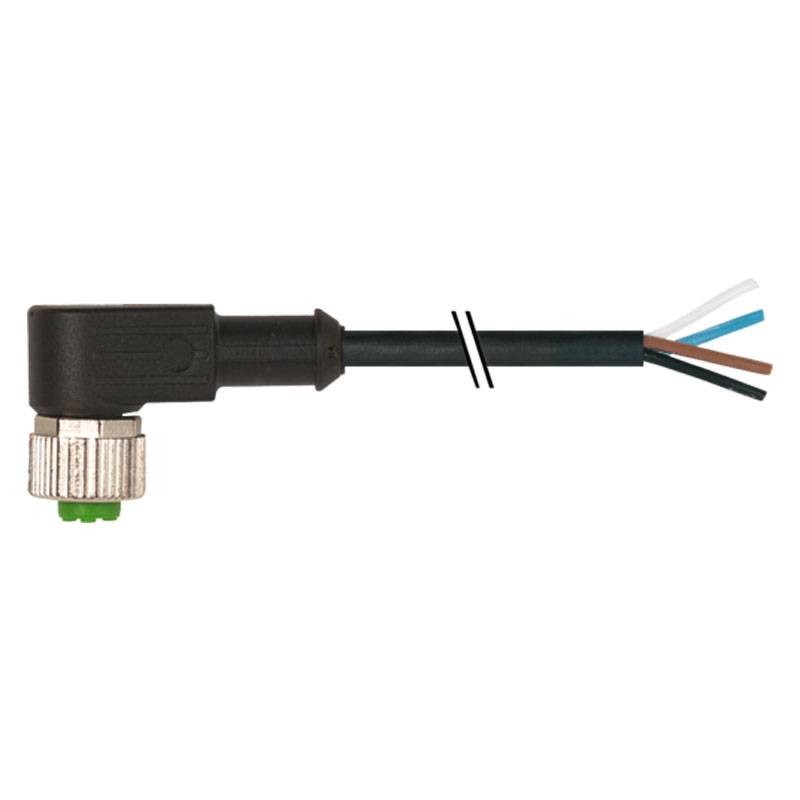

Murr M12 female 90° connector with cable 4P 4A 2.5 kV 5m 7000123416140500

Murr Elektronik
MUE 7000123416140500 4048879206716

Murr M12 female 90° connector with PVC-OB cable with the following characteristics:

  • Operating voltage max: 250V AC/DC
  • Operating voltage (UL listed only) max: 30V AC/DC
  • Peak voltage rating: 2.5 kV
  • Operating current per contact max: 4A
  • 4 poles
  • Connector locking: Thread (M12×1 mm) tightening torque 0.6 Nm, self-locking
  • Cable gland: M12
  • Degree of protection: IP65, IP66K, IP67 with connector inserted and locked (EN 60529)

Cable length: 5 meters.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Murr M12 female 90° connector with cable 4P 4A 2.5 kV 5m 7000123416140500
€7.71
€7.71

€7.71
Tax included
Items Available: 63
Further availability of the manufacturer
€7.71

Buy it within and receive it from Monday, 24 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Clamping device material: Die-cast zinc, matte nickel plated
  • Clamp material: Copper alloy
  • Contact surface material: Au
  • Clamping type: inserted, locked
  • Pollution degree: 3
  • Stripping length (jacket): 20 mm
  • Temperature range: -25 to +85 degrees, depending on the quality of the cable

Cables:

  • Certifications (cable): UL (AWM-Style 2464/1731), CSA
  • Cable weight
  • G/m: 40.7 g
  • Material (cable): Copper wire, uncovered
  • Resistance (conductor) max: max. 60 ?/km (20 °C)
  • Structure (conductor): 19× 0.15 mm (multi-strand class 5 cable)
  • Diameter (conductor): 4× 0.34 mm²
  • Material properties (wire insulation): Free of CFCs, cadmium, silicone and lead
  • Wire combination: 4 stranded wires
  • UL rated voltage: 300 V AC
  • Test voltage: 2000 V AC
  • Temperature range (fixed): -30/+80 °C
  • Temperature range (mobile): -5/+80 °C


Resistance to aggressive agents must be tested for the individual application.

Plastic housings with good resistance against chemicals and oils.

There are no reviews

Data sheet

Type:
Connectors
Poles:
4P
Degree of protection:
IP67
Amps:
4A
Cable Length:
5 meters
