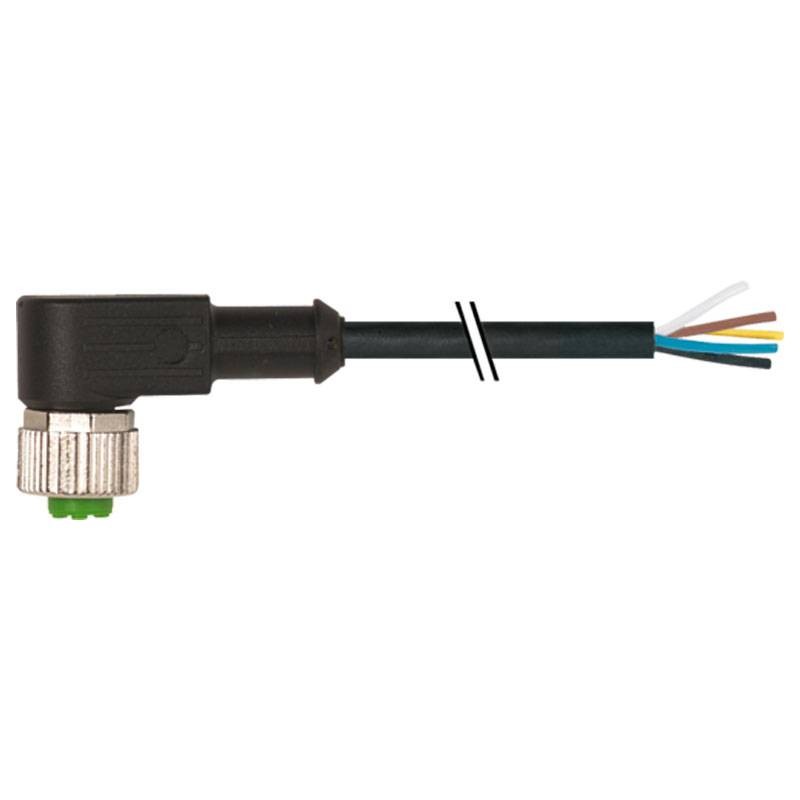

Murr M12 female 90° connector with cable 5P 4A 1.5 kV 10m 7000123616151000
MUE 7000123616151000
Murr M12 female 90° connector with PVC-JB cable with the following characteristics:
- Operating voltage max: 125V AC/DC
- Operating voltage (UL listed only) max: 30V AC/DC
- Peak voltage rating: 1.5 kV
- Operating current per contact max: 4A
- 5 poles
- Connector locking: Thread (M12×1 mm) tightening torque 0.6 Nm, self-locking
- Cable gland: M12
- Degree of protection: IP65, IP66K, IP67 with connector inserted and locked (EN 60529)
Cable length: 10 meters.
Murr M12 female 90° connector with cable 5P 4A 1.5 kV 10m 7000123616151000
€13.38
€13.38
Tax included
Tax included
Items Available: 20
: 5
Features:
- Locking device material: Die-cast zinc, matte nickel plated
- Pollution degree: 3
- Temperature range: -25 to +85 degrees, depending on cable quality
Cables:
- Certifications (cable): UL (AWM-Style 2464/1731), CSA
- Cable weight
- G/m: 48.4 g
- Material (cable): Copper wire, uncovered
- Resistance (conductor) max: max. 60 ?/km (20 °C)
- Structure (conductor): 19× 0.15 mm (multi-strand class 5 cable)
- Diameter (conductor): 5× 0.34 mm²
- Material properties (wire insulation): Free of CFCs, cadmium, silicone and lead
- Wire combination: 5 strands twisted around a central core
- UL rated voltage: 300 V AC
- Test voltage: 2000 V AC
- Temperature range (fixed): -30/+80 °C
- Temperature range (mobile): -5/+80 °C
Resistance to aggressive agents must be tested for the individual application.
Plastic housings with good resistance against chemicals and oils.
There are no reviews
Data sheet
- Type:
- Connectors
- Poles:
- 5P
- Degree of protection:
- IP67
- Amps:
- 4A
- Cable Length:
- 10 meters
