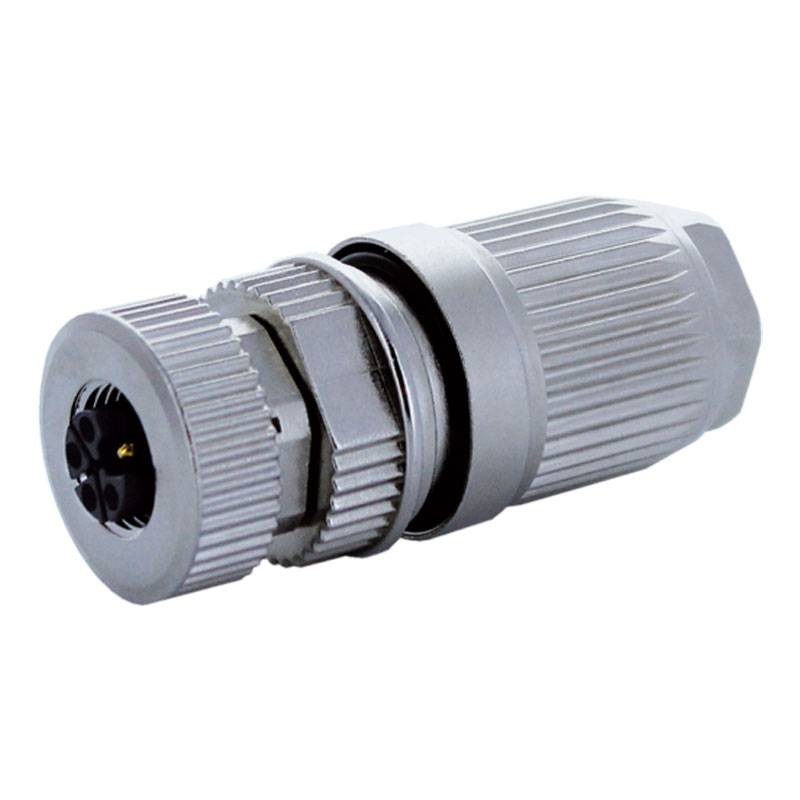

Murr M12 female L-code sensor connector to wire IDC 5P 12A 7000P44210000000

Murr Elektronik
MUE 7000P44210000000 4048879682558

Wired Murr L-code sensor connector with the following features:

  • Operating voltage max: 63V DC
  • Operating current per contact max: 12A
  • 5 poles
  • Connector locking: Thread (M12×1 mm) tightening torque 0.6 Nm) self-locking
  • Cable gland: M12 (SW17)
  • Max. cable cross-section: 1.5 mm²
  • Clamping range (cable Ø): 5.8 ... 13.5 mm
  • Degree of protection IP65 and IP67 with connector inserted and locked
Do you have questions about this product or did you not find what you were looking for? Ask us!

Murr M12 female L-code sensor connector to wire IDC 5P 12A 7000P44210000000

€37.39
€37.39

Murr M12 female L-code sensor connector to wire IDC 5P 12A 7000P44210000000

€37.39
Tax included
Items Available: 2
Further availability of the manufacturer

Murr M12 female L-code sensor connector to wire IDC 5P 12A 7000P44210000000

€37.39

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Material: Die-cast zinc
  • Terminal material: Copper
  • Contact surface material: Au
  • Contact holder material: PA
  • Temperature range: -40/+85 degrees

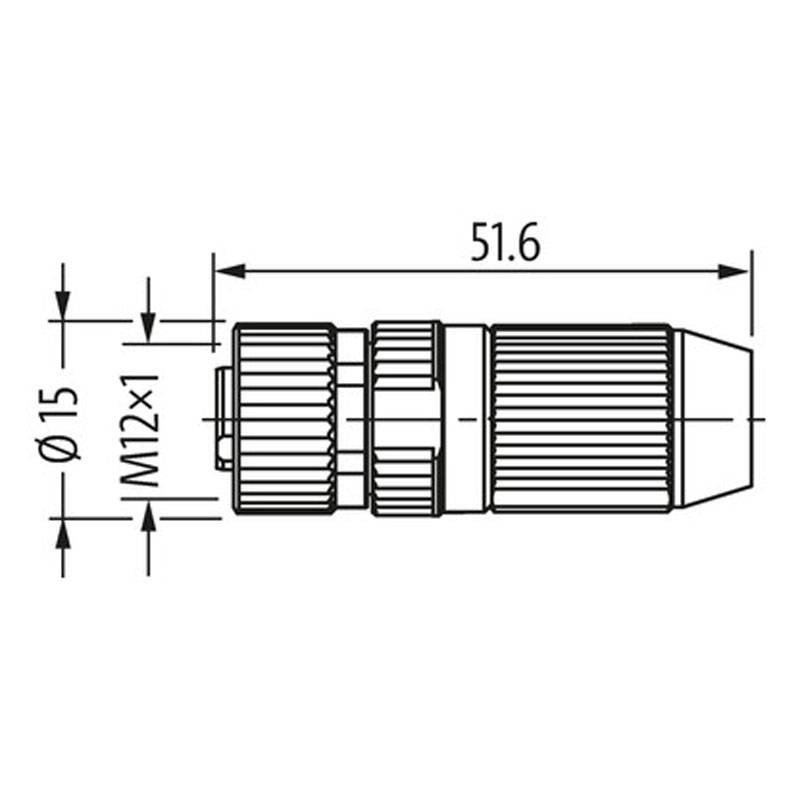

  • Dimensions: 53×25×25 mm (H×W×D)

Resistance to aggressive agents must be tested for the individual application.

Plastic housings with good resistance against chemicals and oils.

There are no reviews

Data sheet

Type:
Connectors
Poles:
5P
Degree of protection:
IP67
Amps:
12A
