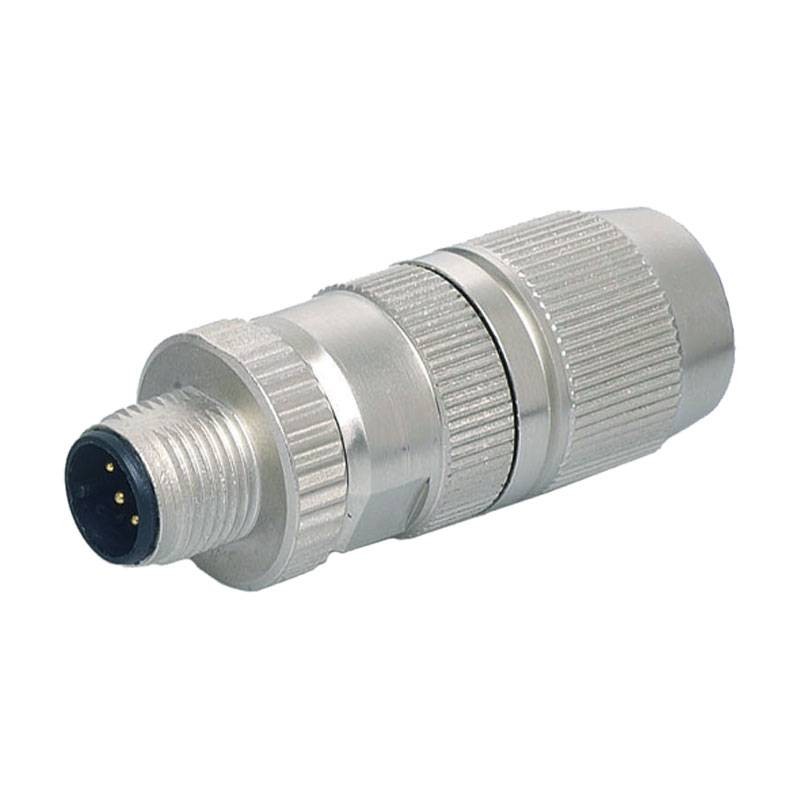

Murr M12 Male 4-pin connector 50 V AC/DC 7000145210000000
MUE 7000145210000000
Murr M12 Male connector with the following characteristics:
- Operating voltage: 50V AC/DC
- Operating current per contact: 4 amps
- Transmission parameters: CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)
- Transmission speed up to 100 Mbit/s full duplex
- Encoding: M12, D-code
- 4-pin
- Connector locking: Thread (M12×1 mm) tightening torque 0.6 Nm) self-locking
- Cable cross section: 0.14 to 0.34 mm²
- Clamping range (cable Ø): 4.5...8.8 mm
- Degree of protection: IP65 and IP67 with connector inserted and locked (EN 60529)
- Clamping device material: die-cast zinc, matte nickel-plated
Murr M12 Male 4-pin connector 50 V AC/DC 7000145210000000
€25.89
€25.89
Tax included
Tax included
Items Available: 18
: 3
There are no reviews
Data sheet
- Type:
- Connectors
- Poles:
- 4P
- Degree of protection:
-
IP65
IP67 - Amps:
- 4A
