Murr M12 male and female connector 5P 4A 1.5 kV 7356411210000000

Murr Elektronik
MUE 7356411210000000 4048879838122

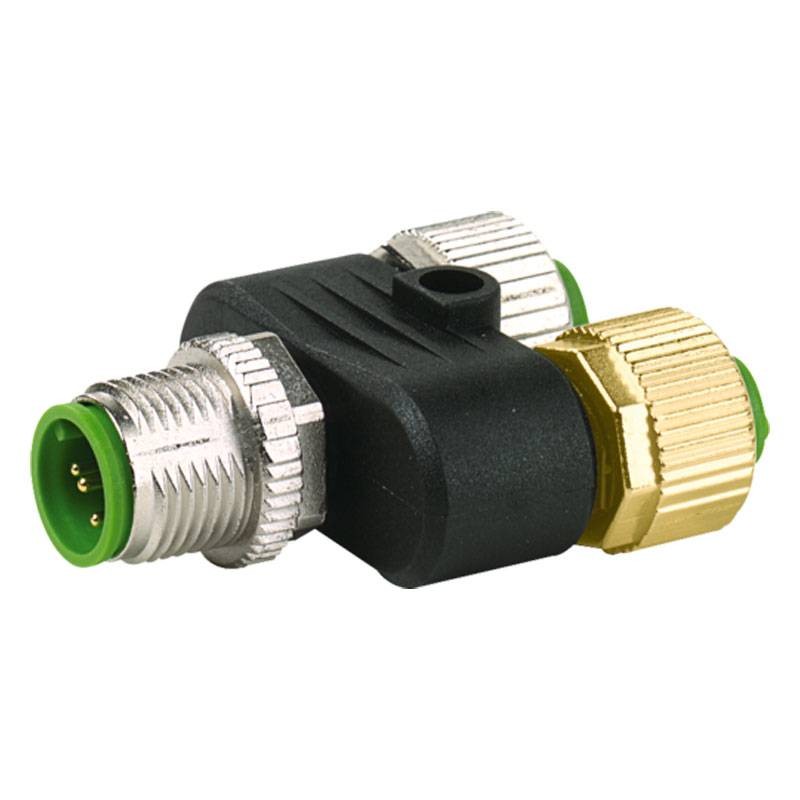

Murr M12 male and female connector T-coupler with the following features:

  • Maximum operating voltage: 60V AC/DC
  • Operating voltage (UL listed only): 30V AC/DC
  • Peak voltage rating: 1.5 kV
  • 5 poles
  • Operating current per contact: max 4A
  • Connector locking: Thread (M12×1 mm) tightening torque 0.6 Nm self-locking
  • Cable gland: M12
  • Degree of protection: IP67 with connector inserted and locked (EN 60529)
  • Temperature range: -40 /+85 degrees
  • Locking device material: zinc die-cast, matte nickel plated
Do you have questions about this product or did you not find what you were looking for? Ask us!

Murr M12 male and female connector 5P 4A 1.5 kV 7356411210000000

€10.93
€10.93

Murr M12 male and female connector 5P 4A 1.5 kV 7356411210000000

€10.93
Tax included
Out of stock
Further availability of the manufacturer
Incoming

Murr M12 male and female connector 5P 4A 1.5 kV 7356411210000000

€10.93

Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • T-coupler - Straight male - straight female
  • M12
  • 5 poles
  • Distribution function (NO)
  • Resistance to aggressive agents must be tested for the individual application
  • Plastic housings with good resistance against chemicals and oils

There are no reviews

Data sheet

Type:
Connectors
Poles:
5P
Degree of protection:
IP67
Amps:
4A
