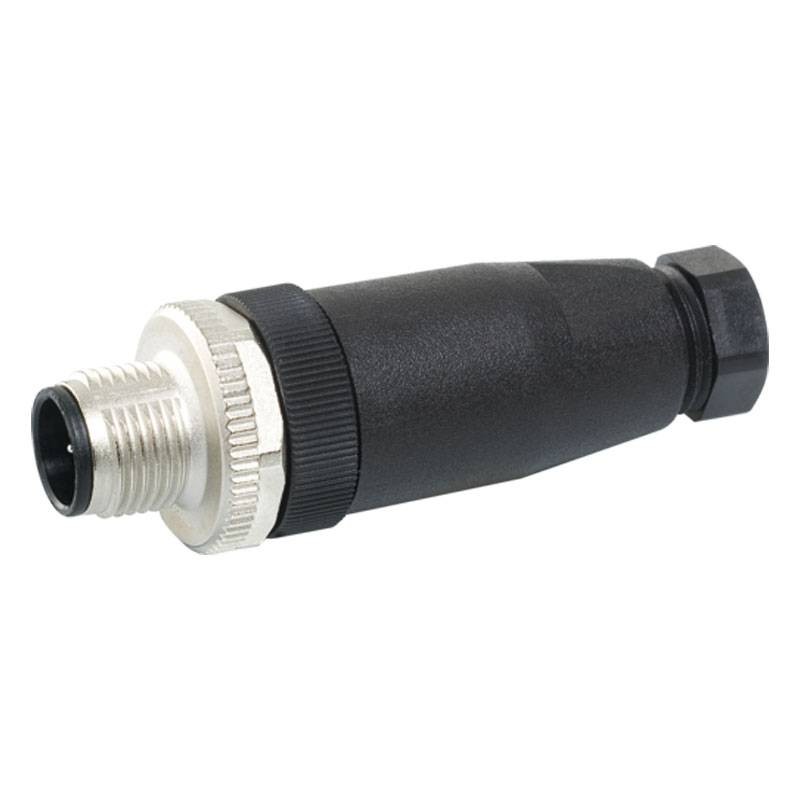

Murr M12 male connector 0° wire 5P 4A 1.5 kV 7000127210000000

Murr Elektronik
MUE 7000127210000000 4048879201650

Murr M12 male connector 0° wire screw terminals with the following characteristics:

  • Operating voltage max: 60V AC/DC
  • Operating voltage (UL listed only) max: 125V AC/DC
  • Peak voltage rating: 1.5 kV
  • 5 poles
  • Operating current per contact: max 4A - max 3A (UL-Recognized)
  • Material group: III
  • Connector locking: Thread (M12×1 mm) tightening torque 0.6 Nm) self-locking
  • Cable Gland: M12 (SW18)
  • Degree of protection: IP67 when connector inserted and locked (EN 60529)
  • Pollution degree: 3
  • Temperature range: -40/+85 degrees

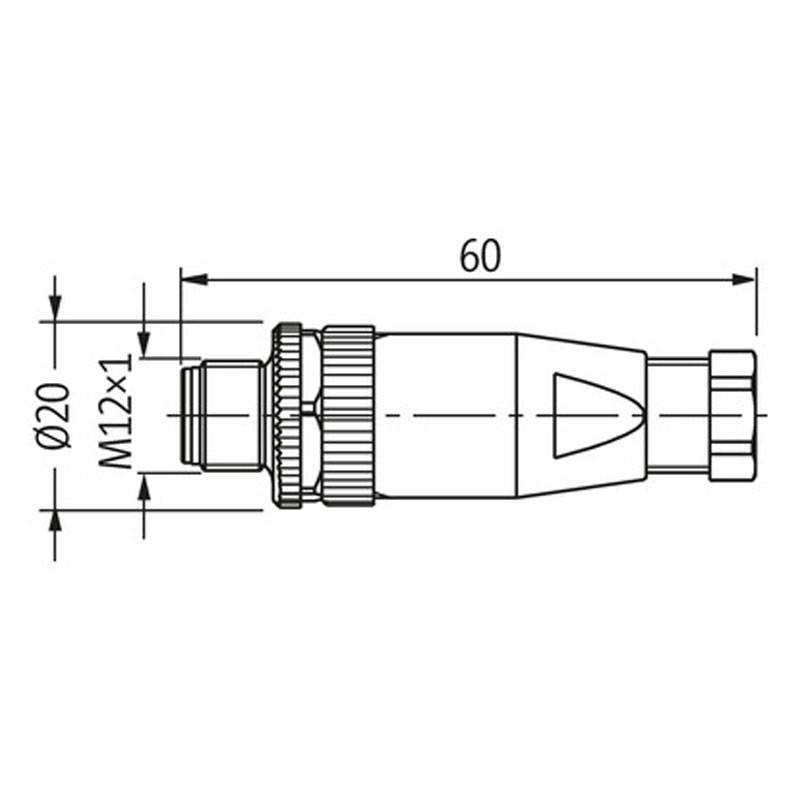

  • Dimensions: 60×20×20 mm (H×W×D)
Do you have questions about this product or did you not find what you were looking for? Ask us!
Murr M12 male connector 0° wire 5P 4A 1.5 kV 7000127210000000
€9.80
€9.80

€9.80
Tax included
Items Available: 56
Further availability of the manufacturer
€9.80

Buy it within and receive it from Monday, 24 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Characteristics:

  • Straight male
  • M12
  • 5-pole
  • Screw terminals
  • Clamping range (cable Ø): 4 ... 6 mm
  • Resistance to aggressive agents must be tested for the individual application
  • Plastic housings with good resistance against chemicals and oils

There are no reviews

Data sheet

Type:
Connectors
Poles:
5P
Degree of protection:
IP67
Amps:
4A
