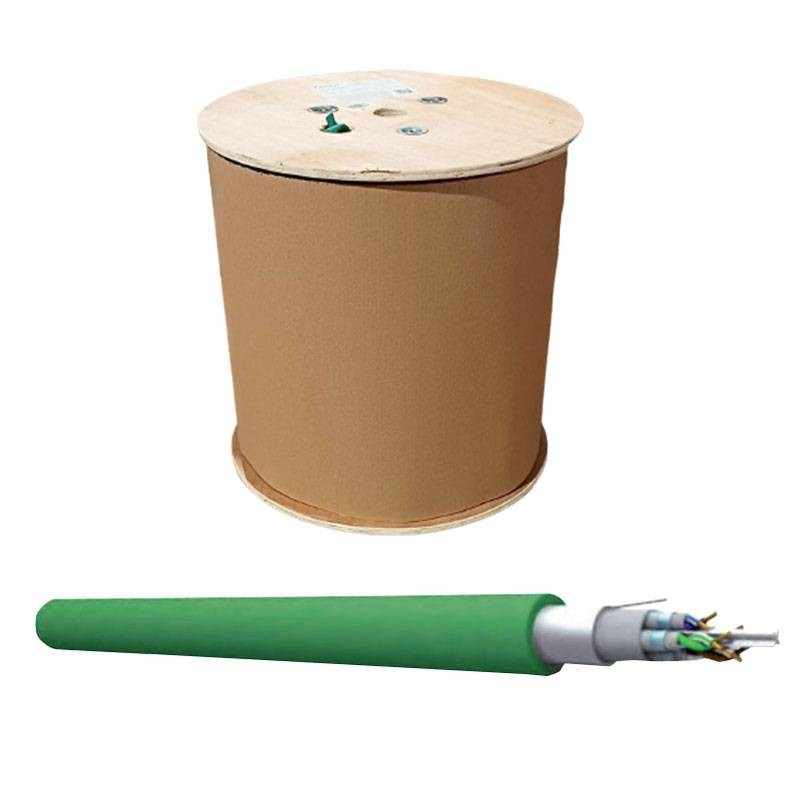

Item CAT7A S/FTP LSZH CPR B2CA Data Cable 500 meters coil RSL7A0500B2CA

Item
IT2 RSL7A0500B2CA

Item CAT7A S/FTP LSZH CPR B2CA Data Cable:

  • 4x2x0.56 AWG 23/1 formation
  • S/FTP Version
  • Shielding AL/PES single pair tape + copper braid
  • LSZH Sheath
  • Sheath Diameter 7.8mm
  • Packaging by reel 500 meters
  • Euroclass B2ca

Suitable for making structured cabling for analog and digital transmission of class F voice and data signals.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Item CAT7A S/FTP LSZH CPR B2CA Data Cable 500 meters coil RSL7A0500B2CA

€1.35
€1.35

Item CAT7A S/FTP LSZH CPR B2CA Data Cable 500 meters coil RSL7A0500B2CA

The minimum purchase order quantity for the product is 500.

€1.35
Tax included
Items Available: 3000
Further availability of the manufacturer

Item CAT7A S/FTP LSZH CPR B2CA Data Cable 500 meters coil RSL7A0500B2CA

€1.35

The minimum purchase order quantity for the product is 500.

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

S/FTP cat.7A 4-pair twisted 100 Ohm shielded telecommunication data cables with red copper conductors section 23 AWG complete with polyolefin insulation suitable for the implementation of structured cabling for analog and digital transmission of class F voice and data signals. Proposed with LSZH (low smoke emission halogen-free) sheathing. CPR certification European regulation (EU/305/2011) Class B2ca, s1a, d1, a1.

Applications: ETHERNET, TP-DDI, 1000BASE TX, 1000BASET, 10GBASET, ATM(TP):

Reference Specifications:

  • CEI 20-37-4-5, CEI 20-52, CEI 20-35 (IEC 60322-1), CEIEN 50267-2-1, CEIEN 50267-2-2, EN 50173, EN 50288-6/1, EN 55022, EN 50081, EN 50082, IEC61034/2, IEC 60754-1-1, IEC60754-2, IEC61156, TIA/EIA-568-A5/B2,ISO/IEC-11801, ISO/IEC TR24750, ANSI/TIA/EIA TSB 155.

Directives: RoHS 2002/95/EC:

Construction characteristics:

  • Inner conductor: Solid red copper-rated cross section AWG 23/1 or 0.56 mm²
  • Individual conductor insulation: Polyolefin dia. 1.03 mm
  • Outer Sheath Low Smoke Zero Alogen (LSZH)

Electrical characteristics:

  • Characteristic impedance: 100 ± 15
  • Nominal mute capacitance: 48 pF/m at 1kHz
  • Max. loop resistance: 16.4 ?/100 m at 20 °C
  • Nominal propagation rate: 74%
  • Operating voltage: 80 V max.
  • Insulation resistance: 5 G? x km

Mechanical characteristics:

  • Operating temperature: -20/+75 °C
  • Installation temperature: -10/+50 °C
  • Minimum bending radius: 42 mm
  • Maximum tensile load: 70 N/mm²
  • Cable weight (PVC-LSØH): 68 Kg./Km
