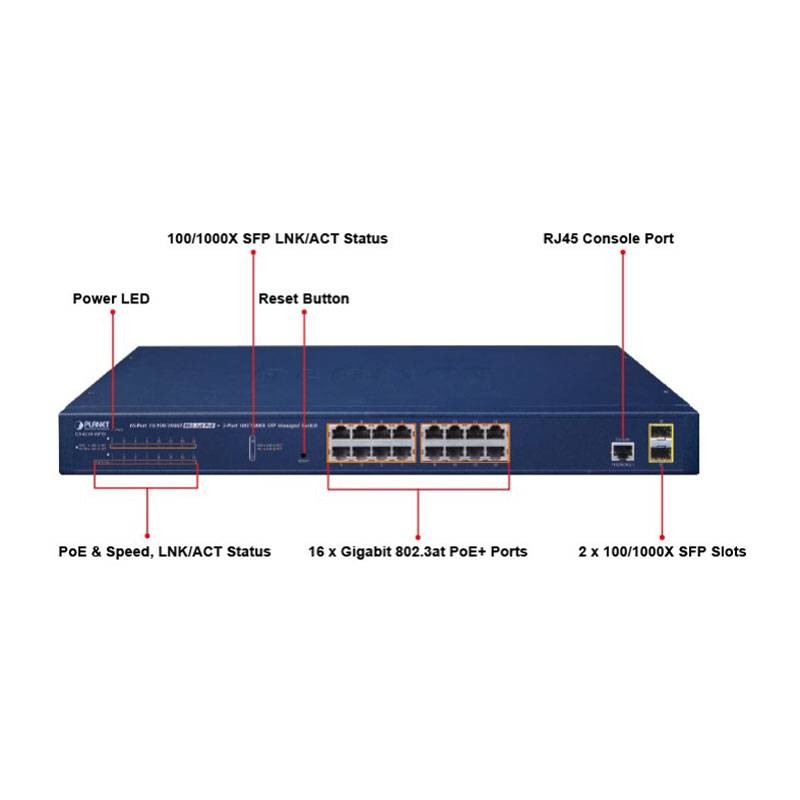

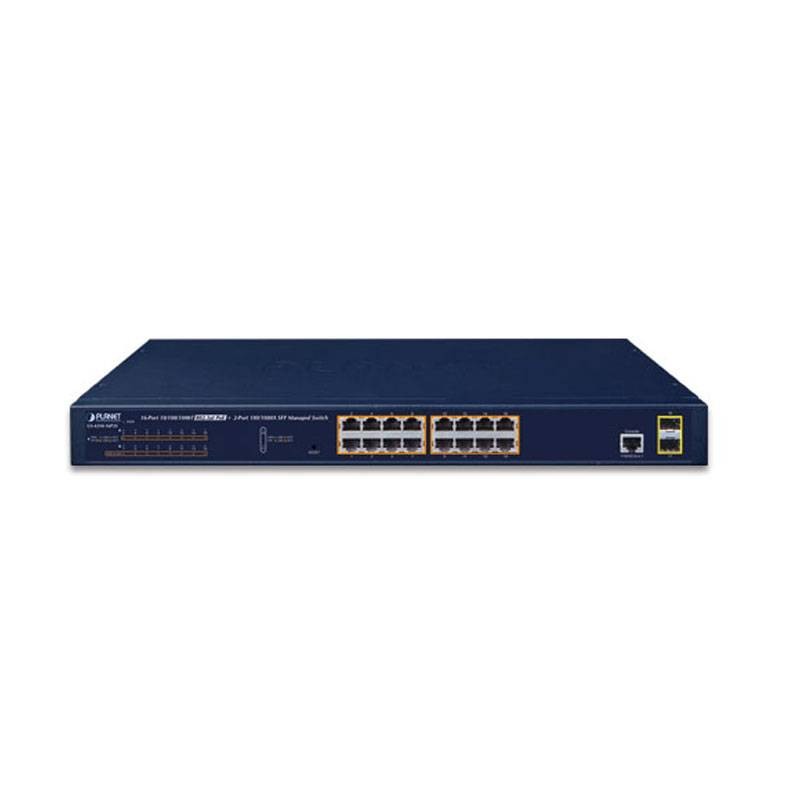

PLANET GS-4210-16P2S is an ideal Gigabit PoE switch that offers a cost-effective advantage to the local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet management and switching functions , an intuitive Web user interface and stable operation. The model is IEEE 802.3at Power over Ethernet Plus (PoE+) compliant at an affordable price. The GS-4210-16P2S features 16 10/100/1000BASE-T Gigabit Ethernet ports and 2 100/1000BASE-X SFP interfaces with internal power supply system. It is the built-in 16Ports Gigabit Ethernet with 802.3at PoE+ injector function on all ports. It offers an affordable, secure and reliable rack-mountable power solution for SMBs deploying Power over Ethernet networks or requiring enhanced data security and network traffic management.

The GS-4210-16P2S supports SSHv2 and TLS protocols to provide effective protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, Dynamic ARP Inspection Protection, 802.1x port-based network access control , RADIUS and TACACS+ user account management, SNMPv3 authentication and so on to complete it as a security solution.

The GS-4210-16P2S supports redundant ring technology and features powerful and fast auto-recovery capability to prevent disruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology , Spanning Tree protocol (802.1s MSTP) in the customer's network to improve system reliability and uptime in various environments.

As a PoE managed switch for surveillance, wireless and VoIP networks, the GS-4210-16P2S has special PoE management features:

• Live PD control
• Scheduled power recycling
• PoE schedule
• PoE utilization monitoring
• PoE Extension




The GS-4210-16P2S can be configured to monitor the status of the connected PD (powered device) in real time via a ping action. Once the PD stops working and responding, the GS-4210-16P2S will resume power to the PoE port and bring the PD back to operation. It will greatly improve network reliability through the PoE port by restoring the PD's power source and reducing the administrator's management burden.

The GS-4210-16P2S allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the possibility of IP camera or AP crashing due to buffer overflow.

Under the worldwide trend of saving energy and contributing to environmental protection, the GS-4210-16P2S can effectively control power in addition to its ability to provide high power. The "PoE Scheduling" function enables or disables PoE power for each PoE port during specified time intervals and is a powerful function to help SMEs or enterprises save energy and money. It also increases security by turning off PDs that should not be in use during non-business hours.

Through the power consumption graph in the web management interface, the GS-4210-16P2S allows the administrator to monitor the power consumption status of connected PDs in real time. Therefore, it greatly improves facility management efficiency.

In the "Extend" mode of operation. , the GS-4210-16P2S operates on a per-port basis with 10 Mbps duplex operation but can support a 20-watt PoE power output over a distance of up to 250 meters by exceeding the 100 m limit on the UTP Ethernet cable . With this brand new feature, the GS-4210-16P2S provides an additional solution for 802.3at/af PoE distance extension, saving the cost of Ethernet cable installation.

Supporting both IPv6 and IPv4 protocols, the GS-4210-16P2S helps SMBs enter the IPv6 era with the lowest investment as its network facilities do not have to be replaced or overhauled if the FTTx IPv6 edge network is configured.

The GS-4210-16P2S can be programmed for advanced switch management features such as dynamic link aggregation to ports, 802.1Q VLANs and Q-in-Q VLANs , Multiple Spanning Tree (MSTP) protocol , loop protection and BPDU, IGMP snooping and MLD snooping . Through link aggregation, the GS-4210-16P2S enables high-speed trunk operation to be combined with multiple ports as a 4 Gbps fat pipe and also supports failover. In addition, Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices in the local transmission domain.

The GS-4210-16P2S features robust QoS capabilities and powerful traffic management to enhance services to business-class data, voice and video solutions. Features include broadcast/multicast/unicast storm control , per-port bandwidth control , 802.1p/CoS/IP DSCP QoS prioritization and commenting. It provides the best VoIP broadcast and video stream performance and enables enterprises to take full advantage of limited network resources.

PLANET GS-4210-16P2S offers full IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) to strengthen security all the way to the periphery. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports, or typical network applications defined. Its protection mechanism also includes 802.1X port-based device and user authentication , which can be implemented with RADIUS to provide port-level security and block illegal users. With the secure port function , communication between edge ports can be prevented to ensure user privacy. In addition, the secure port function allows you to limit the number of network devices on a given port. Network administrators can now build highly secure enterprise networks with much less time and effort than before.

The GS-4210-16P2S offers an ideal and secure surveillance system at a lower total cost. The GS-4210-16P2S provides 16 10/100/1000Mbps 802.3at PoE+ ports capable of supplying enough PoE power for 16 IEEE 802.3at/af PoE IP cameras simultaneously. It is also capable of connecting with a 16-channel NVR or two 8-channel NVR systems uplinked to the main switch and control center. With such a high-performance switch architecture, video files recorded by PoE IP cameras can be saved in the NVR system to enable administrators to control and monitor surveillance images both in the local LAN and at remote sites.

Features:

• Compliant with IEEE 802.3at Power over Ethernet Plus, PSE end-span
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 16 ports of IEEE 802.3af/802.3at powered devices
• Supports PoE Power up to 30.8 watts per PoE port
• 220-watt PoE budget
• Automatically detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power up to 100 meters in standard mode and 250 m in extended mode
• Total control of PoE power budget
• Enabling/disabling of PoE function per port
• PoE port Power priority
• PoE port power limitation
• PD classification detection
• Intelligent PoE features
• PoE usage threshold control
• Prevents packet loss with backpressure (half-duplex) and IEEE 802.3x (full-duplex) pause frame flow control
• High-performance Store and Forward architecture, runt/CRC filtering eliminates errant packets to optimize network bandwidth
• Provides port mirrors (many to 1)
• Loop protection to avoid transmission loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Input/output rate limit to control port bandwidth
• Supports storm control
• Supports IGMP IPv4 v2 and v3 snooping
• Supports MLD IPv6 v1, v2 snooping
• Support for IGMP snooping mode
• IGMP snooping port filtering
• MLD snooping port filtering
• Port security for filtering of source MAC address entries
• DHCP snooping to filter out untrusted DHCP messages
• Dynamic ARP inspection removes ARP packets with an invalid MAC address for IP address association
• IP source protection prevents IP spoofing attacks
• DoS attack prevention
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Logging of event messages on the remote Syslog server
• PLANET Smart Discovery Utility for distribution management
• PLANET NMS system and CloudViewer for distribution management
