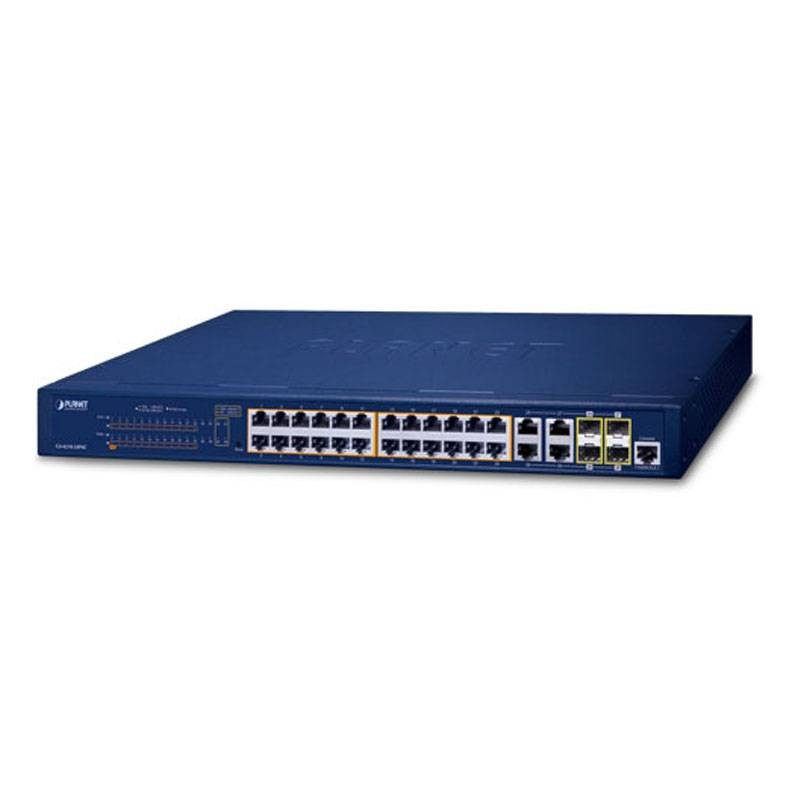

PLANETGS-4210-24P4C is a cost-optimized PoE+ Gigabit managed switch with PLANET intelligent PoE features to improve the availability of critical business applications. It provides dual-stack IPv6/IPv4 management and integrated Gigabit L2/L4 switching engine along with 24 10/100/1000BASE-T ports with 30-watt PoE+ 802.3at and 4 additional Gigabit TP/SFP combo ports. With a total power budget of up to 280 watts for various types of PoE applications. The GS-4210-24P4C offers a fast, secure and cost-effective Power over Ethernet networking solution for small businesses and enterprises.

The GS-4210-24P4C supports SSHv2 and TLS protocols to provide robust protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, Dynamic ARP Inspection Protection, 802.1x port-based network access control , RADIUS and TACACS+ user account management , SNMPv3 authentication and so on to complete it as an all-security solution.

Since it is the managed PoE switch for surveillance, wireless and VoIP networks, the GS-4210-24P4C has the following special PoE management features:

• PD live control
• Scheduled power recycling
• PoE schedule
• PoE utilization monitoring
• PoE Extension



The GS-4210-24P4C can be configured to monitor the status of the connected PD (powered device) in real time via ping action. Once the PD stops working and responding, the GS-4210-24P4C will resume PoE port power and bring the PD back to work. It will greatly improve the reliability of the network through the PoE port by resetting the power source of the PD, thus reducing the administrator's management burden.

Under the worldwide trend of energy saving and contributing to environmental protection, the GS-4210-24P4C can effectively control the power supply in addition to its ability to provide high watt power. The "PoE Scheduling" feature enables or disables PoE power for each PoE port during specified time intervals and is a powerful function to help SMEs or businesses save energy and money. It also increases security by turning off PDs that should not be used during non-business hours.

In the "Extension" operating mode. , the GS-4210-24P4C operates on a per-port basis at 10 Mbps duplex, but can support a 30-watt PoE power output over a distance of up to 250 meters by exceeding the 100 m limit on the UTP Ethernet cable . With this brand new feature, the GS-4210-24P4C provides an additional solution for 802.3at/af PoE distance extension, saving the cost of Ethernet cable installation.

The GS-4210-24P4C can be programmed for advanced switch management features such as dynamic port link aggregation, 802.1Q VLAN and VLAN Q-in-Q, MSTP (Multiple Spanning Tree Protocol) , loop and BPDU guard, IGMP snooping and MLD snooping . Through link aggregation, the GS-4210-24P4C enables the combination of high-speed trunk operation with multiple ports and also supports failover. In addition, Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices in the local transmission domain.

PLANET GS-4210-24P4C offers a comprehensive access control list (ACL) from IPv4/IPv6 Layer 2 to Layer 4 to strengthen security all the way to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports, or typical network applications defined. Its protection mechanism also includes 802.1X port-based user and device authentication , which can be implemented with RADIUS and TACACS+ to provide port-level security and block illegal users. With the secure port function , communication between edge ports can be prevented to ensure user privacy. In addition, the port security function allows you to limit the number of network devices on a given port.

The GS-4210-24P4C provides 4 additional Gigabit TP interfaces supporting 10/100/1000BASE-T RJ45 copper for connection with surveillance network devices such as NVRs, Video Streaming Servers or NAS to facilitate surveillance management. Or through these dual-speed fiber SFP slots, it can also connect with 100BASE-FX/1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver for uplink to the backbone switch and long distance monitoring center. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and up to over 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are suitable for applications within data centers and enterprise deployments.

Features:

• Compliant with IEEE 802.3at Power over Ethernet Plus, PSE end-span
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 24 ports of IEEE 802.3af/802.3at powered devices
• Supports PoE power up to 30 watts per PoE port
• 280-watt PoE budget
• Automatically detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power up to 100 meters in standard mode and 250 meters in extended mode
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x (full-duplex) pause frame flow control
• High-performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates errant packets to optimize network bandwidth
• Provides port mirroring (many to 1)
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Input/output speed limit to control port bandwidth
• Support for storm control
• Port security for filtering of source MAC address entries
• DHCP snooping to filter out untrusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address link to IP address
• IP Source Guard prevents IP spoofing attacks
• DoS attack prevention
• Link Layer Discovery Protocol (LLDP) and LLDP-MED
• Event message logging on remote Syslog server
• PLANET Smart Discovery Utility for deployment management
• PLANET NMS system and CloudViewer for deployment management
