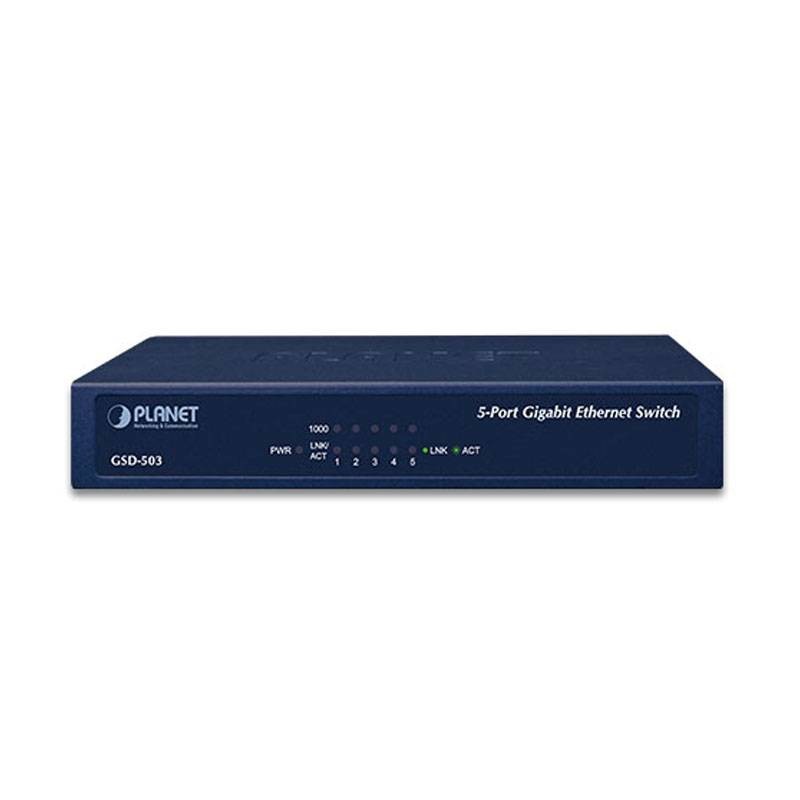

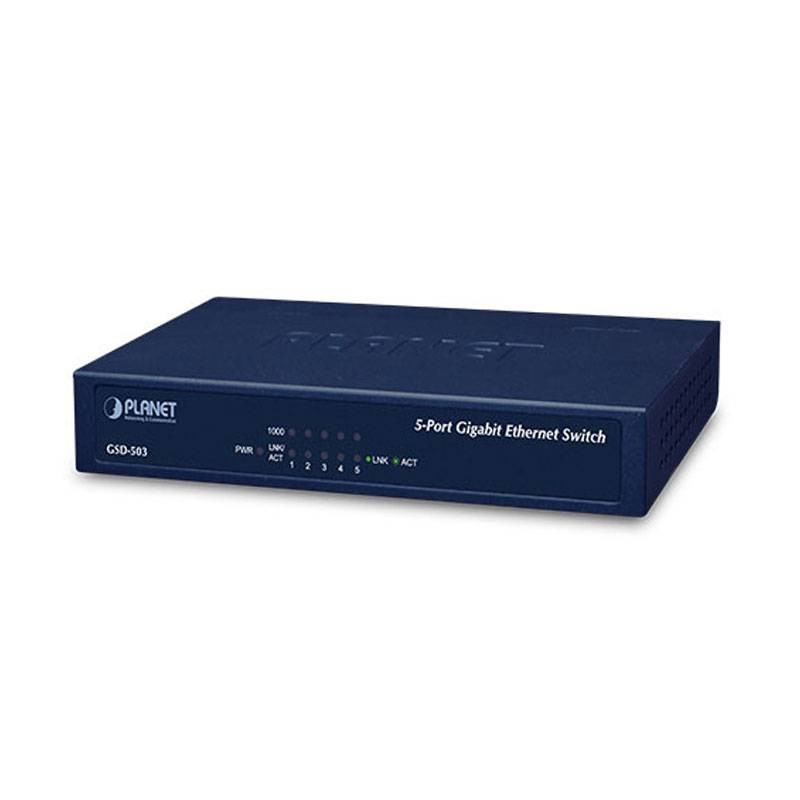

PLANET GSD-503 Green Networking Switch is specially designed to meet the current energy-saving trend worldwide. The GSD-503, a 5-port Gigabit Ethernet switch, offers energy-saving benefits and Gigabit cable speed performance to home, SOHO and enterprise networks.

The GSD-503 incorporates two advanced Green Networking technologies and is able to provide energy savings of up to 40 percent while efficiently maintaining high performance.

Hibernation Link Down power saving goes beyond IEEE specifications to automatically reduce power for a given port when it is not connected. With Hibernation Link Down power-saving technology, the GSD-503 will automatically adjust the power consumption of ports that are off or not connected to the network device.

Intelligent Power Usage uses an intelligent algorithm that actively determines the appropriate power level based on the length of the cable. When the GSD-503 is connected with an Ethernet cable shorter than 20 m, a device can achieve maximum power savings because the GSD-503 will automatically detect the length of the Ethernet cable and reduce power consumption. The connected device can substantially reduce the overall power consumption, which contributes significantly to energy saving.

The GSD-503 is designed with a modern compact metal housing and is easy for deploying high-speed Gigabit networks in home or SOHO applications. Providing a 10 Gbps internal switching structure, the GSD-503 can handle an extremely large amount of data in a secure topology by connecting to a high-capacity backbone or server. The GSD-503 provides a 2K MAC address table and offers wire-speed packet transfer performance without the risk of packet loss. The device's high data rate makes it ideal for most Gigabit environments, especially for upgrading the network to a Gigabit environment.

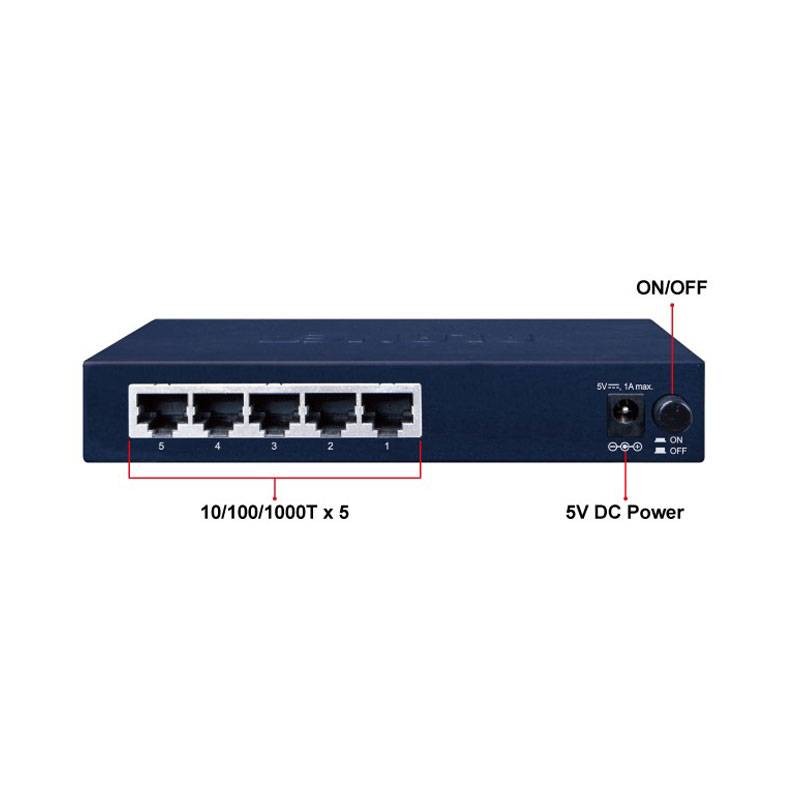

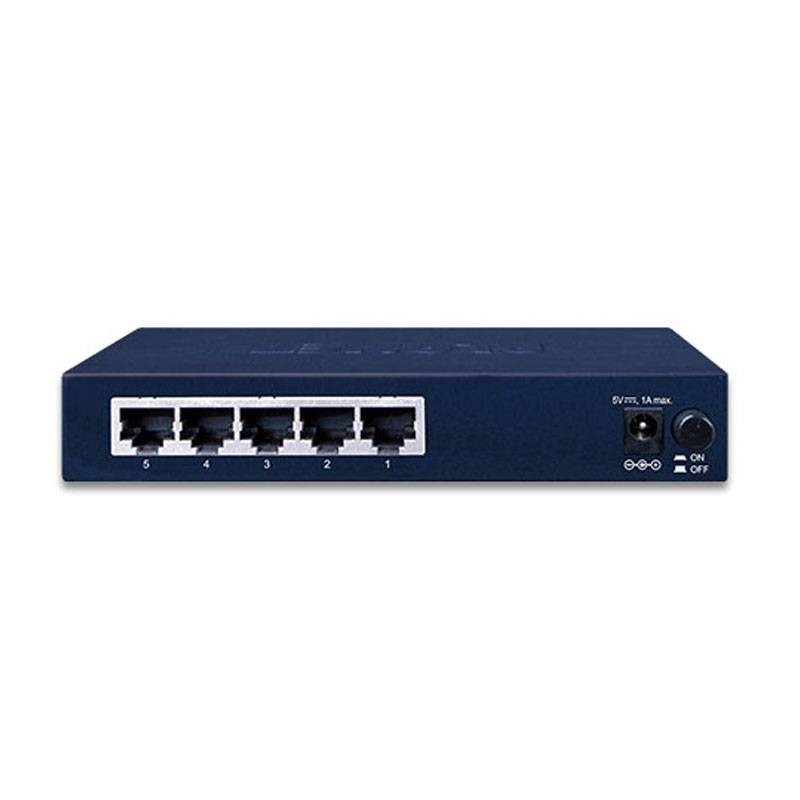

All RJ45 copper interfaces of the GSD-503 support 10/100/1000Mbps auto-negotiation for optimal speed detection via RJ45 Category 5, 5e or 6 cables. They support the standard auto-MDI/MDI-X function that can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

The GSD-503 can connect directly to department switches or backbone servers. With up to 10 Gbps of non-blocking switch fabric, the GSD-503 can be used to create a high-bandwidth Gigabit switched network quickly and easily.

The GSD-503 Gigabit Ethernet switch offers the best solution for the high-speed Internet environment required by SOHO / Home and Power users. The GSD-503 accelerates the speed of data transmission between devices without worrying about the delay of high-quality multimedia display. As for home use, the GSD-503 integrates the speeds of 10, 100 and 1000 Mbps that can meet your needs of transmitting multimedia content, games and other high-quality high-speed Internet applications.

Features:

• 10/100 Mbps, half/full duplex and full duplex 1000 Mbps hardware-based modes, flow control and automatic negotiation
• Features store-and-forward mode with wire-speed filtering and forwarding speed
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• Built-in address lookup engine, supporting 2K absolute MAC addresses
• 9K jumbo packet size
• Power-saving capability for green networks
• Automatic address learning and address aging
• Supports CSMA/CD protocol
• Dimensions: 155 x 86 x 26 mm (W x D x H)
• Weight: 317 grams
