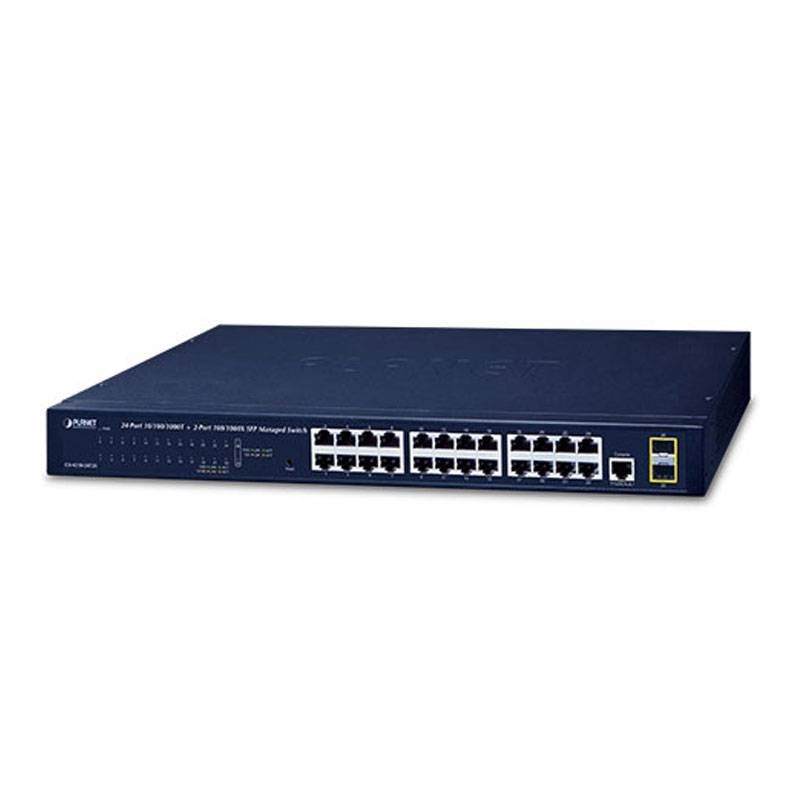

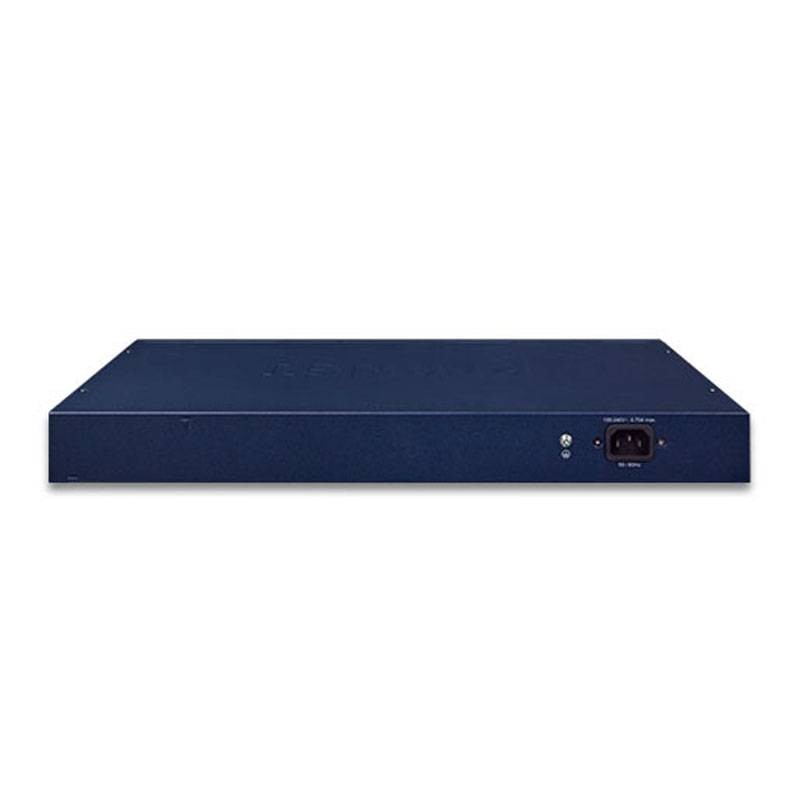

Switch 4 Power 24 ports 10/100/1000T and 2 ports 100/1000X SFP GS421024T2S
4 Power managed 10/100/1000T 24-port switch + 2 100/1000X SFP ports with the following features:
- 24 copper 10/100/1000BASE-T Gigabit RJ45 ports
- 2 mini-GBIC/SFP 100/1000BASE-X slots
- RJ45 console interface for basic switch management and configuration
- Reset button for system factory settings
- Hardware-based 10/100 Mbps, half/full duplex and 1000 Mbps full duplex modes, automatic flow control and negotiation, and automatic MDI/MDI-X
- Features store-and-forward mode with wire-speed filtering and forwarding speed
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 9K giant frame
- Automatic address learning and address aging
- Supports CSMA/CD protocol
- Supports IGMP IPv4 v2 and v3 snooping
- Supports IPv6 MLD snooping v1, v2
- Supports IGMP snooping mode
- IGMP snooping port filtering
- MLD snooping port filtering
Switch 4 Power 24 ports 10/100/1000T and 2 ports 100/1000X SFP GS421024T2S
Tax included
PLANET GS-4210-24T2S is an ideal Gigabit switch that offers a cost-effective advantage to the local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions, an intuitive Web user interface, and stable operation . In addition to popular IPv6/IPv4 management and abundant L2/L4 switching functions. The GS-4210-24T2S features fanless functionality and green technology to provide a quiet, energy-saving, high-speed and reliable office network environment.
The GS-4210-24T2S features 24 10/100/1000BASE-T Gigabit Ethernet ports and 2 additional 100/1000BASE-X SFP interfaces with internal power system. It offers an affordable, secure and reliable rack-mountable Gigabit network switch solution for SMBs deploying networks or requiring enhanced data security and network traffic management.
The GS-4210-24T2S supports SSHv2 and TLS protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, Dynamic ARP Inspection Protection, 802.1x port-based network access control , RADIUS and TACACS+ user account management , SNMPv3 authentication and so on to complete it as an all-security solution.
The GS-4210-24T2S supports redundant ring technology and has a powerful and fast automatic recovery capability to prevent outages and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) , Spanning Tree Protocol (802.1s MSTP) technology into the customer's network to improve system reliability and uptime in various environments.
The GS-4210-24T2S can be programmed for advanced switch management features such as dynamic port link aggregation, 802.1Q VLAN and VLAN Q-in-Q, MSTP (Multiple Spanning Tree Protocol) , loop and BPDU guard , IGMP snooping and MLD snooping . Through link aggregation, the GS-4210-24T2S allows combining high-speed trunk operation with multiple ports as a 16 Gbps fat pipe and also supports failover. In addition, Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices in the local transmission domain.
The GS-4210-24T2S features robust QoS capabilities and powerful traffic management to enhance the services of enterprise-grade data, voice and video solutions. Functionality includes broadcast/multicast/unicast storm control , per-port bandwidth control , 802.1p/CoS/IP DSCP QoS prioritization and remarking. It provides the best performance in VoIP transmission and video streaming and enables enterprises to take full advantage of limited network resources.
PLANET GS-4210-24T2S offers a comprehensive access control list (ACL) from IPv4/IPv6 Layer 2 to Layer 4 to strengthen security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports, or typical network applications defined. Its protection mechanism also includes 802.1X port-based authentication , which can be implemented with RADIUS to provide port-level security and block illegal users. With the protected port function , communication between edge ports can be prevented to ensure user privacy. In addition, port security. The feature allows you to limit the number of network devices on a given port. Network administrators can now build highly secure enterprise networks with much less time and effort than before.
The two mini-GBIC slots built into the GS-4210-24T2S are compatible with the 100BASE-FX/1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver for uplink to the backbone switch and long distance monitoring center. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are suitable for applications within data centers and enterprise deployments.
Adopting the latest chip process and green technology, the GS-4210-24T2S successfully reduces substantial power consumption with the fanless and quiet design that is collocated with the effective cooling device. Therefore, the GS-4210-24T2S can operate stably and quietly in any environment without compromising performance.
For efficient management, the GS-4210-24T2S is equipped with command-line, Web and SNMP management interfaces:
- With the integrated Web-based management interface , the GS-4210-24T2S offers an easy-to-use and platform-independent management and configuration function
- For text-based management , it can be accessed via Telnet and console port
- Supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software
- In addition, the GS-4210-24T2S offers secure remote management by supporting SSHv2 , TLSv1.2 and SNMPv3 connections that encrypt packet contents with each session
Supports VLANs:
- VLANs with IEEE 802.1Q tags
- Support Provider Bridging (VLAN Q-in-Q) (IEEE 802.1ad)
- VLAN protocol
- Voice VLAN
- Private VLAN (protected port)
- VLAN Management
- GVRP
Supports Spanning Tree protocol:
- STP (Spanning Tree protocol)
- RSTP (Rapid Spanning Tree protocol)
- MSTP (Multiple Spanning Tree protocol)
- STP BPDU Guard, BPDU Filtering and BPDU Forwarding
Supports link aggregation:
- IEEE 802.3ad link aggregation control protocol (LACP)
- Cisco ether-channel (static trunk)
- Maximum 8 line bundles, up to 8 ports per line bundle
- Provides port mirroring (many to 1)
- Loop protection to prevent transmission loops
- Supports ERPS (Ethernet Ring Protection Switching)
Features:
- Input/output speed limit to control port bandwidth
- Support for storm control
- Broadcast/unicast unknown/multicast unknown
- Traffic classification
- Strict priority and CoS Weighted Round Robin (WRR) policy.
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to cooperate with RADIUS servers
- DHCP Option 82
- RADIUS/TACS+ User Access Authentication
- Port security for filtering of source MAC address entries
- DHCP snooping to filter out untrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC address link to IP address
- IP source guard prevents IP spoofing attacks
- DoS attack prevention
- Cable Diagnostics
- Link Layer Discovery Protocol (LLDP) and LLDP-MED
- SNMP trap for interface link and idle link notification
- Event message logging on the remote Syslog server
- Four RMON groups (history, statistics, alarms and events)
- PLANET Smart Discovery Utility for deployment management
- PLANET NMS system and CloudViewer for deployment management
Data sheet
- Type:
- Network Switch
- Doors:
- 24
