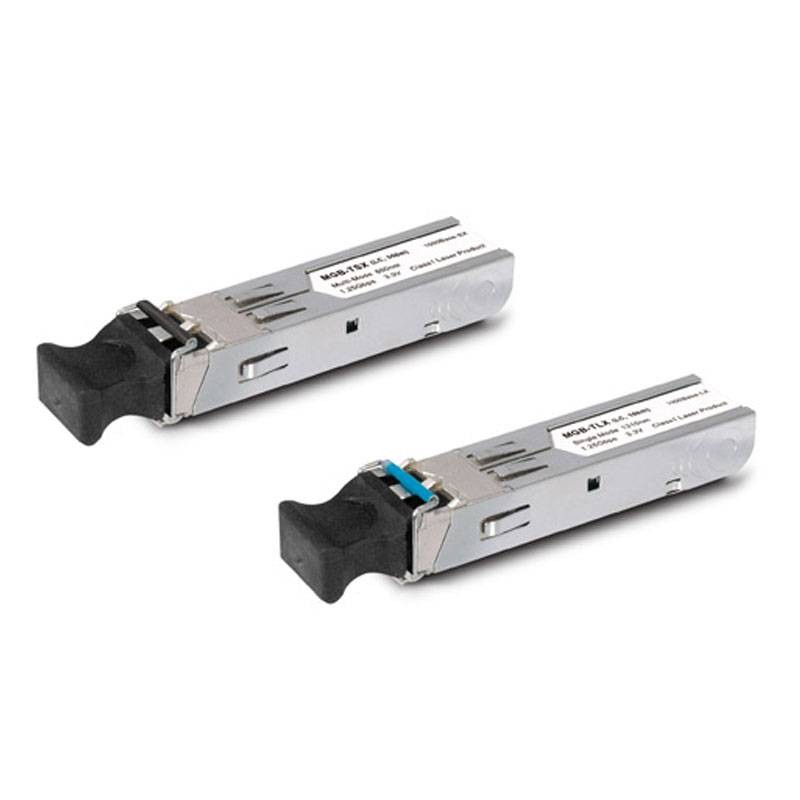

Transceiver Module Mini 4 Power GBIC 1000BASE-SX SFP Port 550 m MGB-SX
4PW MGB-SX
4711213686252
Transceiver Module mini 4 Power GBIC 1000BASE-SX port SFP 550 m with the following features:
- Compliant with the IEEE 802.3ab/802.3z Gigabit Ethernet standard.
- One 1000 Mbps TP/LC fiber port
- Duplex/single LC connector
- Differential PECL inputs and outputs
- Single 3.3V power supply
- TTL signal detection indicator
- Hot pluggable
- Class 1 laser product complies with EN 60825-1 standard
- Plug-and-play installation
- Fiber type: Multimode
- Connector: Dual LC/UPC
- Wavelength: 850 nm
- Maximum distance: 550 m
- Operating temperature: 0/+60 degrees
€28.33
€28.33
Tax included
Tax included
Items Available: 56
: 10
The MGB family consists of Small Form Factor Pluggable (SFP) transceiver modules specifically designed for high-performance integrated duplex data link over single-mode optical fiber. These transceiver modules comply with the SFP Multisource Agreement (MSA) and are hot-pluggable. These modules offer an easy way to be installed into MSA-compliant SFP ports at any time without interrupting host equipment operation.
The MGB family of SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with a mini-GBIC SFP interface. The deployment distance can be extended from 100 meters (TP) to 550 meters (Multi-mode, LC) and up to 120 kilometers (Single-mode, LC).
To meet the growing demand for the Industrial Ethernet fiber solution, Planet releases the MGB-T series 1000BASE-SX/LX/BX transceivers that can operate reliably in an electrically difficult, climatically demanding and wide (-40 ? to 75 ?) temperature range environment. The MGB-T series 1000BASE-SX/LX/BX transceivers provide quick and easy 1000BASE-SX/LX/BX connection for planetary temperature industrial equipment.
The MGB family of SFP Gigabit Ethernet module can be installed in PLANET Switch and Media Converter products with 1000BASE-SX/LX/BX SFP interface. The distribution distance can be extended from 550 m (multi-mode, LC) up to 120 kilometers (single-mode, LC). SFP transceivers are hot-pluggable and hot-swappable. Transceivers can be connected and removed to/from any SFP port without having to turn off the Switch/Media Converter.
The MGB-T series 1000BASE-SX/LX/BX transceiver is an ideal solution for wide temperature industrial equipment from -40 to 75 with 1000BASE-SX/LX/BX SFP interfaces. The deployment distance can be extended from 550 m (multi-mode, LC) to 10/20/40/80 kilometers (single-mode, LC).
There are no reviews
Data sheet
- Type: Transceivers
