1-PORT D-Link MGBIC 1000BASELX MM/SM DEM-310GT
870 DEM-310GT
0790069248146

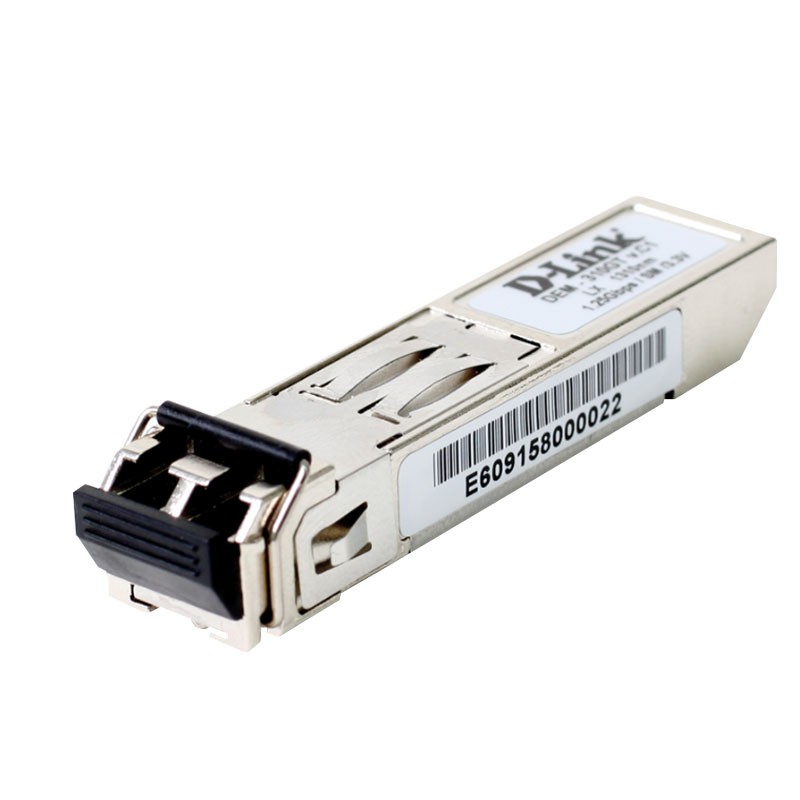

D-Link mini-GBIC SFP transceiver 1 port 1000BASE-LX, with the following features:
- Voltage Support : 3.1-3.5V
- Power Supply : 3.3V
- Max Voltage: 6.0V
- Max Current: 300mA
- Dimensions: 3 x 1.20 x 5.6cm
- Speed: 1,250Gbps (Bi-Directional)
- Fiber channel data transfer: 1.062Gbps (Bi-Directional)
- Optical receptor sensitivity: -20dBm (Max)
- Fiber media support: single mode
- Distance: 10km
- Connectors: Duplex LC
- Wavelength: 1310nm
- Cabling type: single-mode 9 um fiber
1-PORT D-Link MGBIC 1000BASELX MM/SM DEM-310GT
€46.14
€46.14
Tax included
Tax included
Items Available: 15
Other technical features:
- Operating temperature: 0°/+70°C
- Operating temperature: -40°/+85°C
- Operating Humidity: 10% ~ 85%
- Laser Class 1 : EN 60825-1
- FDA 21 : 1040.10 & 1040.11
- Standard: IEEE 802.3z
- Transmission distances: Fiber optic 9/125µm : up to 10km
- Interface: LC connector type
- Hot pluggable: YES
- MSA Compliant: YES
- RoHS compliant: YES
D-Link Gigabit SFP transceivers connect to Gigabit and Fast Ethernet switches via their GBIC slots. They enable the expansion of Gigabit Ethernet networks by providing high-speed connections over fiber optics. The fiber optic transceivers feature standard duplex LC connectors to ensure maximum compatibility. They are hot plug and Small Form Factor Pluggable (SFP) compliant with the Multi-Source Agreement (MSA) specification.
Gigabit SFP transceivers use the Small Form-factor Pluggable (SFP) design. They provide the signal amplification needed to transmit data to the network cable from the port and vice versa. The SFP form-factor is advantageous because it is smaller than other form-factors such as Xenpak, X2, and 10G XFP, providing lower costs, fewer power interruptions, and higher port density.
Multiple applications: Applications of DEM-300 series fiber transceivers include distributed multiprocessing, Gigabit cascade switching, high-speed file I/O transfer, bus extension application, and channel extension/data storage. This versatility is invaluable for an expanding network and helps the infrastructure grow along with the business.
Hot-pluggable: All D-Link transceivers are hot-pluggable. You can connect a transceiver while the system is powered on without causing problems and easily exchange one for another without having to reboot the switch each time. This allows modules to be added or removed without interrupting the network, facilitating maintenance and greatly reducing downtime.
There are no reviews
Data sheet
- Type:
- Transceivers
