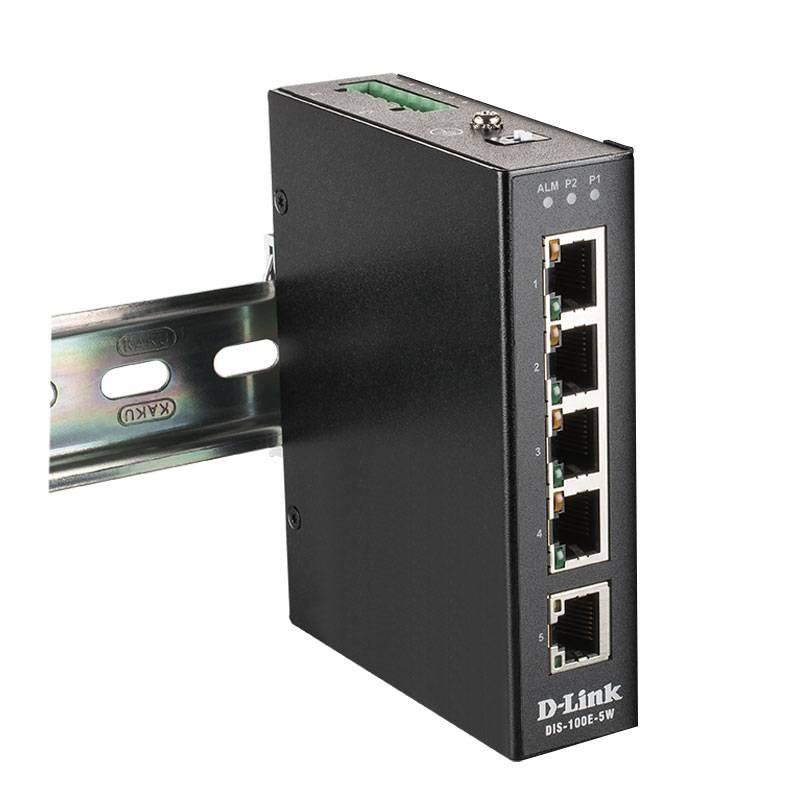

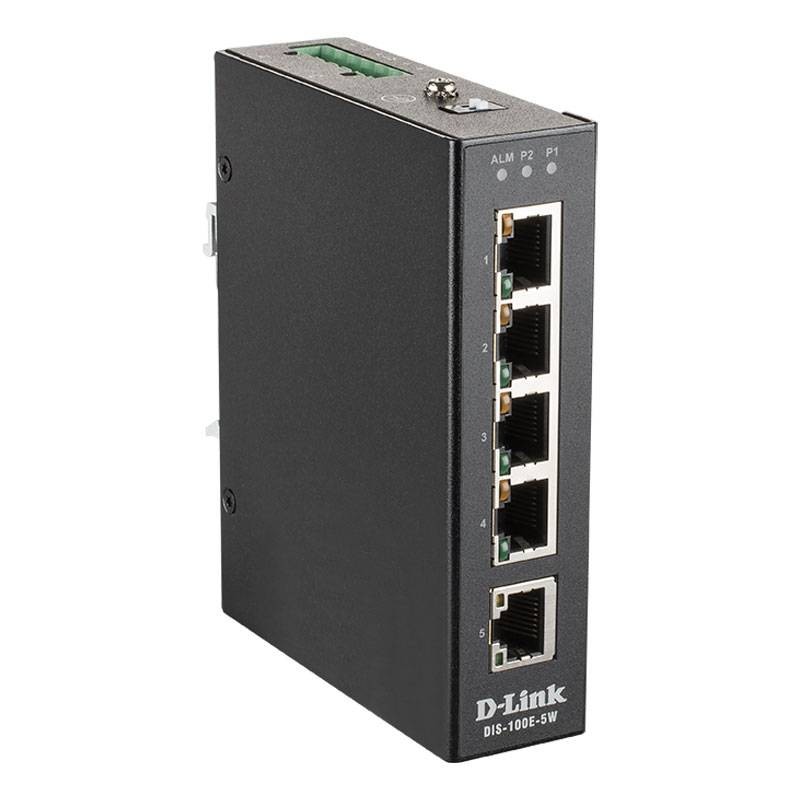

D-Link 5-Port 10/100 Mbps Unmanaged Industrial Switch DIS-100E-5W
870 DIS-100E-5W
D-Link unmanaged industrial switch with the following features:
- Interfaces: Ethernet 5 ports 10/100BaseT(X)
- RJ45 copper ports
- 10/100 Mbps speed
- Input voltage range: 12-58 VDC
- Degree of protection: IP30
- Dimensions 109.2x29.1x89.4 mm
- Installation options: DIN rail mounting, wall mounting
Designed to operate over a wide temperature range, as well as under vibration or shock conditions, allows the switches to be used inside cabinets or in housings set up outdoors.
D-Link 5-Port 10/100 Mbps Unmanaged Industrial Switch DIS-100E-5W
€189.04
€189.04
Tax included
Tax included
Items Available: 2
: 1
DIS-100E Unmanaged Fast Ethernet Industrial Switches are specifically designed to withstand a wide range of temperatures, vibrations and shocks. These rugged yet easy to deploy switches have superior environmental specifications compared to commercial network switches.
With their ruggedized design coupled with high-availability networking capabilities, these switches are vital parts of any network infrastructure facilitating the growing demand for smart cities, citywide surveillance, and wireless connectivity.
DIS-100E Series Unmanaged Switches feature 5 Fast Ethernet ports and are specifically designed to withstand standard industrial applications without complex setup in order to make networking truly plug-and-play.
The DIS-100E family of switches is ideal for customers looking for a basic Ethernet switch for industrial environments. These unmanaged switches offer plug-and-play installation, and are ideal for cost-effective network deployment.
Application:
- Harsh environmental conditions
- High ambient temperatures
- Strong industrial/ factory automation
- Applications in intelligent transportation systems (ITS)/railway systems
- Urban surveillance/smart cities
Features:
- Interfaces: Ethernet 5 ports 10/100BaseT(X)
- RJ45 copper ports
- 10/100 Mbps speed
- Input voltage range: 12-58V DC
- Degree of protection: IP30
- Dimensions 109.2x29.1x89.4 mm
- Installation options: DIN rail mounting, wall mounting
- MAC addresses: 1,000
- IEEE 802.3x (Full Duplex) and Back-Pressure (Half Duplex) flow control
- Fault contact Power alarm relay output
- DIP switches Enable/Disable thunderstorm protection for transmission
- Enable/Disable power supply alarm
- Automatic MDI/MDIX cross cable: Supports straight or crossed cables
- Power consumption Standby power supply: 0.95 W
- Max. power supply: 1.56 W
- Power status Power input status indication
- Ethernet port Connection and speed
- Operating temperature range: -40/+75 degrees
- Storage temperature range: -40/+85 degrees
- Humidity (non-condensing) 5 to 95% relative humidity
There are no reviews
Data sheet
- Type:
- Network Switch
- Doors:
- Five
