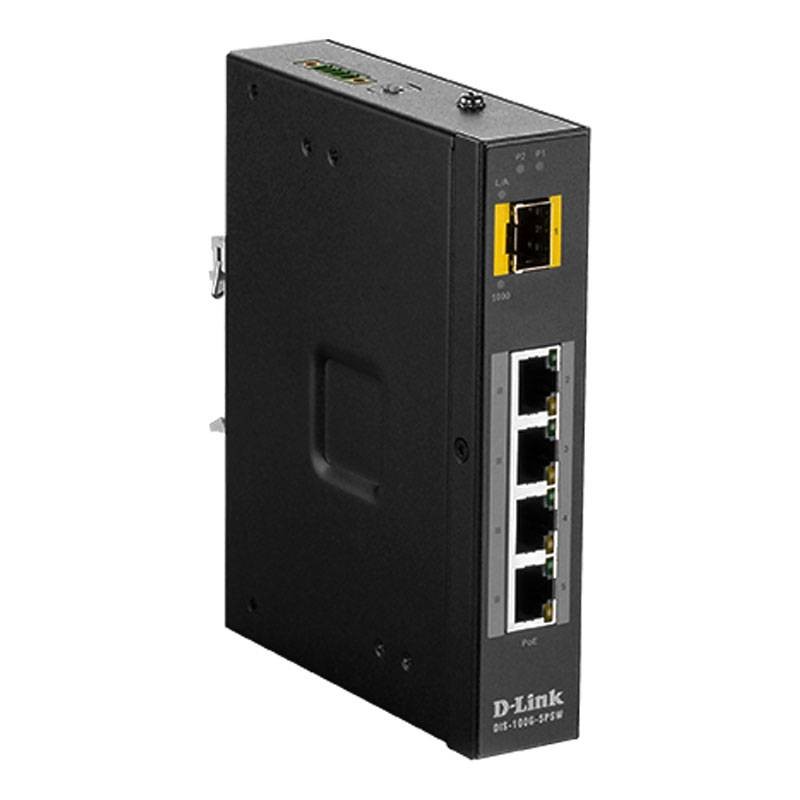

D-Link Industrial Switch 4 Ports 10/100 + 1 SFP DIS-100G-5PSW
870 DIS-100G-5PSW
7900694378856
D-Link unmanaged industrial switch with the following features:
- 4 ports 100/1000BaseT PoE 1 SFP slot
- Switching capacity: 10 Gbps
- Maximum forwarding speed: 7.44 Mpps
- 48 to 58 VDC dual-input terminal block
- Dimensions: 139x29x107 mm
- Material: Metal housing with IP30 protection rating
- Installation: DIN rail/wall-mountable
DIS-100G Unmanaged Industrial Gigabit Switches are specifically designed to withstand a wide range of temperatures, vibrations and shocks. These rugged yet easy-to-use switches have superior environmental specifications compared to commercial network switches.
D-Link Industrial Switch 4 Ports 10/100 + 1 SFP DIS-100G-5PSW
€519.69
€519.69
Tax included
Tax included
Items Available: 7
DIS-100G Unmanaged Industrial Gigabit Switches are specifically designed to withstand a wide range of temperatures, vibrations and shocks. These rugged yet easy to deploy switches have higher environmental specifications than commercial network switches.
With their ruggedized design coupled with high-availability networking capabilities, these switches are vital parts of any network infrastructure facilitating the growing demand for smart cities, citywide surveillance, and wireless connectivity. The DIS-100G series switches are designed to support standard industrial applications without complex settings, so the network can be truly plug-and-play.
The DIS-100G-5PSW complies with IEEE 802.3af and IEEE 802.3at PoE standards and delivers a current of up to 30 watts per port along with data over standard Ethernet cable. The switches can be used to power any IEEE 802.3af/at PoE PD-ready device, eliminating the need for additional wiring.
The DIS-100G switch family is ideal for customers seeking a basic Ethernet switch for industrial environments. These unmanaged switches offer plug-and-play installation, and are ideal for cost-effective network deployment.
Application:
- Harsh environmental conditions
- High ambient temperatures
- Strong industrial/ factory automation
- Applications in intelligent transportation systems (ITS)/railway systems
- Urban surveillance/smart cities
Advantages:
- Passive fanless cooling design
- Industrial-grade operating temperature
- High EMS resistance
- Input protection
- Dual power inputs for redundant power supplies
- Built-in 6 kV overload protection on copper ports
- 9 KB Jumbo Frame
- IEEE 802.3x flow control
- Quality of Service (QoS) IEEE 201.1q
- IEEE802.3az energy-efficient Ethernet
Features:
- 4 100/1000BaseT PoE ports 1 SFP slot
- Switching capacity: 10 Gbps
- Maximum forwarding speed: 7.44 Mpps
- 48 to 58 VDC dual-input terminal block
- Dimensions: 139x29x107 mm
- Material: IP30-rated metal housing
- Installation: DIN rail/wall mountable
- MAC address table size: Up to 2,000 entries
- Transmission Method: Store-and-forward
- Jumbo Frame: 9 KB
- Total PoE power available: 120 W
- Power consumption: Maximum: 4.46 W (PoE off) - Maximum: 131.57 W (PoE on)
- Alarm relay: 1 A to 24 V
- Heat dissipation: 15.22 BTU/h (PoE off) - 448.94 BTU/h (PoE on)
- Passive cooling, no fan
- Operating temperature: -40/+75 degrees
- Storage temperature: -40/+85 degrees
- Operating humidity: 5% to 95% ambient temperature without condensation
- Storage humidity: 5% to 95% ambient temperature without condensation
