Edimax Industrial Gigabit PoE+ 10 Port 2 Port SFP Switch IGS-1210P
22O IGS-1210P
4717964704696
Edimax Din-Rail 10-port Gigabit PoE+ industrial switch with 2 SFP ports with the following features:
- 8 Gigabit Ethernet PoE+ ports and 2 SFP uplink ports
- Long-range PoE guaranteed up to 200 meters
- 6KV overload protection to prevent damage to the switch and connected devices
- P-fail relay with alarm and notifications in case of power loss
- "Backfeed" protection to prevent damage to PoE ports
- Flexible implementation with DIN-Rail mounting kit or wall mounting options
- Dimensions: 180x32x130 mm (H-P-L)
The ideal solution for industrial networks such as those in automotive, industrial automation, oil and gas, mining, transportation, branch offices, energy as well as outdoor applications in rail, road, tunnel, smart city, surveillance and traffic monitoring.
Edimax Industrial Gigabit PoE+ 10 Port 2 Port SFP Switch IGS-1210P
€302.05
€302.05
Tax included
Tax included
Items Available: 2
: 1
The industrial-use switch operates over a wide temperature range of -20°C to 70°C (-4°F to 158°F) for deploying industrial networks in environments with extreme weather conditions. Supports 6KV overload and backfeed protection for devices connected by a non-standard power source. Allows avoidance of damage to swtich and connected devices.
Provides a long-range PoE solution, up to 200 meters guaranteed, ideal for applications in surveillance services and parking lots. Supports power redundancy for three power inputs to reduce unexpected risks and ensures stable and reliable network quality of service.
Supports 802.1p QoS to ensure priority for video and voice traffic allowing reduced packet loss as well as lower latency and jitter on the network. The switch is designed to allow flexible installation for DIN-rail or wall mounting.
Hardware:

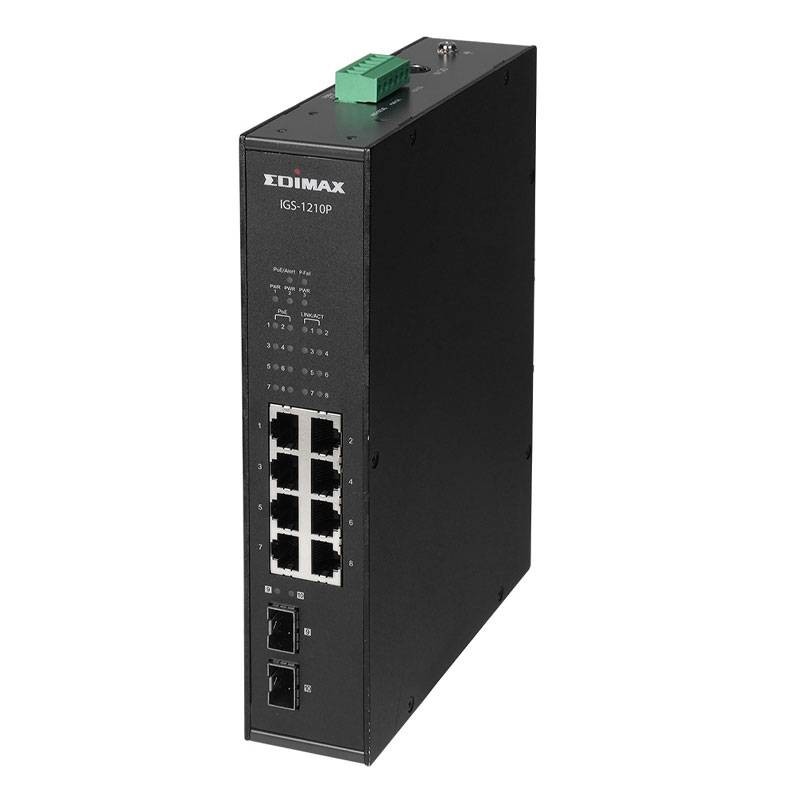

- Port: 8 Gigabit RJ-45 10/100/1000Base-T ports - 2 SFP ports

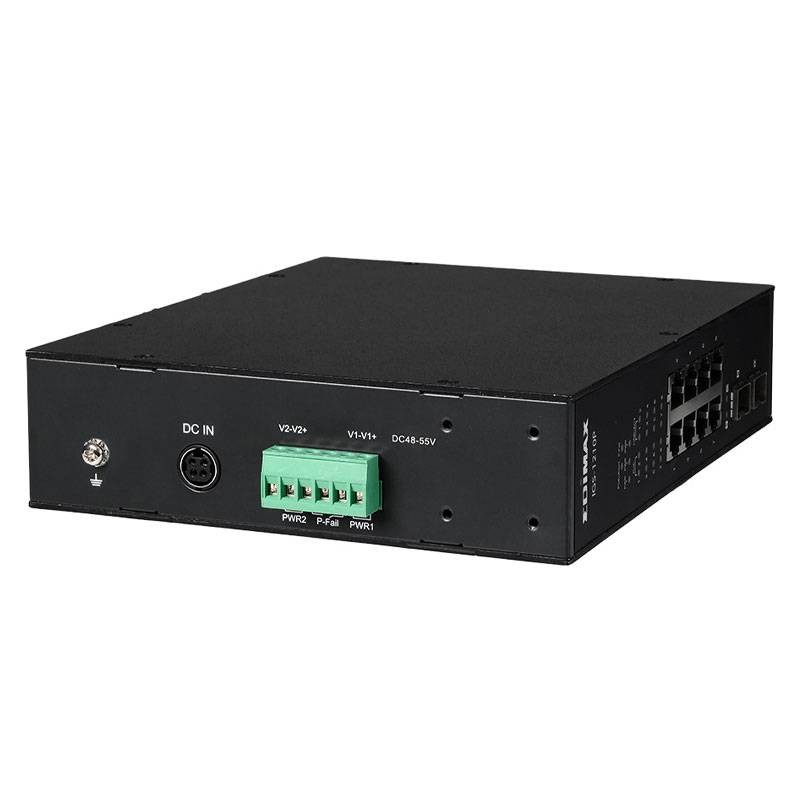

- Connector: 6-pin removable terminal block (Pin1/2 for power supply 1, Pin 3/4 for P-Fail (Power failure Alarm Relay), Pin 5/6 for power supply 2)
- LED indicators: Per port: Link/Activity - Per unit: PWR1, PWR2, PWR3 P-Fail
- Power input: External power source
- Power input: 48V/55VDC (terminal block)
- Redundant power input: 48V/55VDC (terminal block)

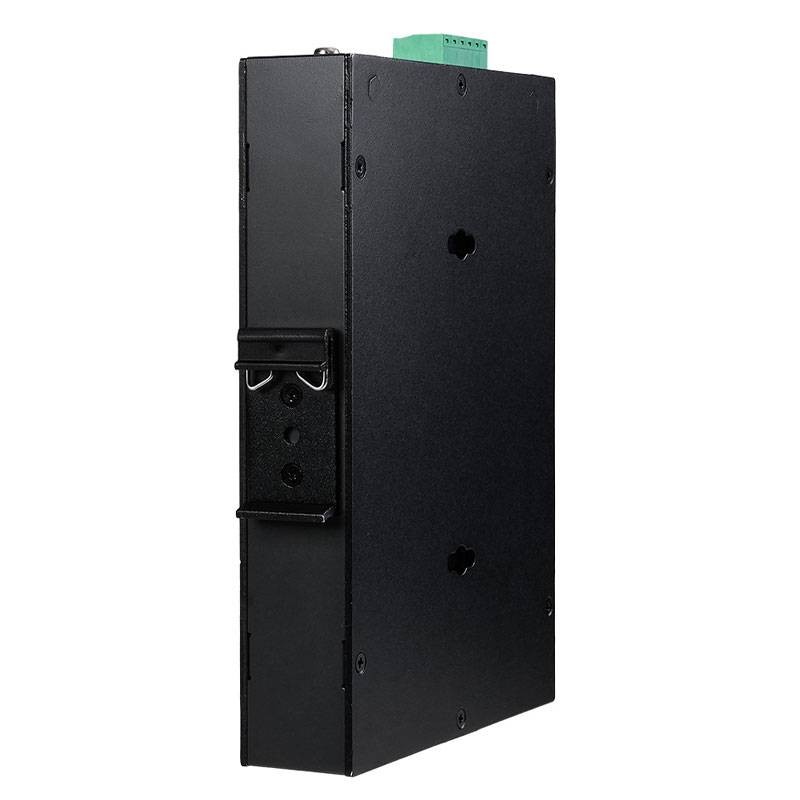

- DIN-rail mounting (DIN-rail mounting kit included)/Wall mounting
- Housing: Metal, IP30 certified
Performance:
- Switching capacity: 20 Gbps
- MAC address: 4K
- Buffer memory: 1.5 Mb
- Jumbo frame: 9KB
- Output power: Up to 30W per port
- Total PoE Power Budget: Maximum 240W
- Guaranteed long-range PoE up to 200 meters at 10 Mbps
- Power backflow protection
Features:
- 4 Gigabit Ethernet PoE+ ports and 1 SFP uplink port
- Long-range PoE guaranteed up to 200 meters
- 6KV overload protection to prevent damage to the switch and connected devices
- P-fail relay with alarm and notifications in case of power loss
- "Backfeed" protection to prevent damage to PoE ports
- Flexible implementation with DIN-Rail mounting kit or wall mounting options
- Dimensions: 180x32x130 mm (H-P-L)
- Power redundancy through offering Dual-DC power inputs to ensure stable and reliable network service
- Supports 802.1p QoS for prioritization of video and voice traffic
- Operating temperature range -20° ~+70° C (-4° ~+158° F)
- Compliant with IEEE 802.3af/at PoE, supports up to 30W per port (in power-saving mode: up to 240Watts)
- IP30 rated, solid design, for industrial use, fanless, for harsh environments
There are no reviews
Data sheet
- Type:
- PoE Network Switches
- Doors:
- 10
