PoE Access Point Edimax AX1800 Wi-Fi 6 High Speed Ceiling Access Point PRIMEAX1-2-3
22O PRIMEAX1-2-3
PoE Access Point Edimax AX1800 Wi-Fi 6 high-speed ceiling-mounted access point with the following features:
- Plug-and-play, self-managed, pre-configured Wi-Fi system: pre-configured AP with self-managed features for easy play and play
- Smart wizard, easy to set up: follow the smart wizard that provides step-by-step guidance, configuring your new network in just 5 steps
- AX Technology : BSS coloration, DL/UL OFDMA, DL/UL MU-MIMO, TWT
- AX1800 high-speed Wi-Fi 6 : maximum Wi-Fi speed up to 1800 Mbps (2.4 GHz at 574 Mbps and 5 GHz at 1201 Mbps)
- High-performance Wi-Fi : Beamforming, AirTime Fairness, Band Steering and Fast Roaming 802.11r/k for the best Wi-Fi performance
- Expandable Wi-Fi system : expandable with PrimeAX 1-2-3 +1 additional AP, up to a total of 16 APs
- Business environments : suitable for a wide range of business applications such as offices, hotels, meeting rooms, schools, campuses, resorts, stores and more
PoE Access Point Edimax AX1800 Wi-Fi 6 High Speed Ceiling Access Point PRIMEAX1-2-3
€510.10
€510.10
Tax included
Tax included
Items Available: 2
: 1
PrimeAX 1-2-3, a simple, secure, comprehensive and expandable Wi-Fi system with IEEE 802.11ax Wi-Fi 6 technology for wireless speeds up to 1800 Mbps (574 Mbps at 2.4 GHz and 1201 Mbps at 5 GHz). Enterprise-grade performance and build quality combined with intuitive operation, easy deployment, superfast wireless speeds, a broad feature set, and a practical ceiling-mount design make the dual-band solution ideal for enterprise environments that require security, reliability, expandability, high-density, high-speed wireless connectivity of mobile and IoT environments such as offices, schools, hotels, hospitals, retail stores, or shopping malls.
PrimeAX 1-2-3, 2-packkit comes with pre-configured AX1800 Slave AP, achieves seamless Wi-Fi coverage and eliminates Wi Fi dead zones. The built-in smart wizard makes network configuration and management efficient and intuitive, you can easily configure administrator username/password, choose time zone, find associated devices via Device Discovery Tool and configure 2.4G/5G Wi-Fi SSID name/password , including security (WPA/WPA2/WPA3 etc.).
In addition, PrimeAX 1-2-3 features AX technology such as BSS coloring, DL/UL OFDMA, DL/UL MU-MIMO, TWT provides improvements in throughput, multi-device support and Wi-Fi spectrum efficiency for streaming, gaming, media sharing, increases battery life efficiency for devices and reduces power consumption.
Hardware:

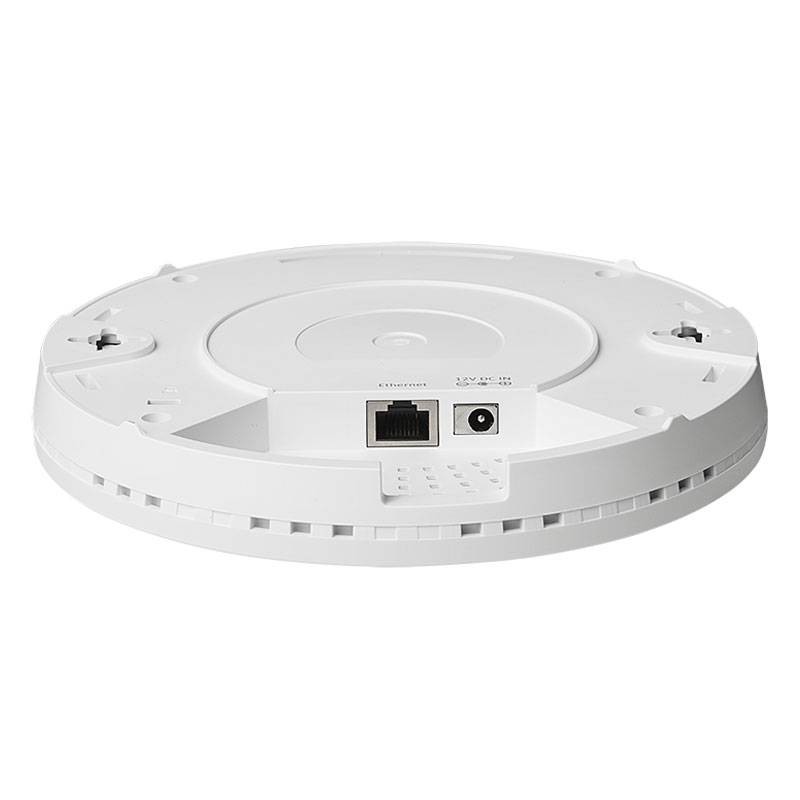

- Interface: 1 RJ45 10/100/1000 Mbps Ethernet port (PoE input)
- Button: Reset button
- LED Indicator: Power LED diag
- Antenna: Type: 2 built-in PIFA (2 dual-band antennas) - Gain: 2.2 dBi (2.4 GHz), 2.9 dBi (5 GHz) max
- Power: DC: 12 V / 1 - A 802.3at (optional PoE injector)
- Power consumption: 12 W (at full load)
- Power saving: 802.3az
- Mounting: Ceiling
- Housing: UL94-5VB flammability rating
- Dimensions: 176.29x32.75 mm (WxH)
- Weight: 372 grams
Software:
- Wireless mode: AP / WDS Bridge AP / WDS
- 802.1q VLAN: VID = 1-4095
- Coverage tree: RSTP
- Pass-through: IPv6 and VPN (PPTP, L2TP/IPsec)
- Multicast speeds up to 54 Mbps
Security:
- L2 wireless isolation
- Station isolation
- IEEE 802.1x authenticator
- EAP authentication: PEAP
- Hidden SSID
- MAC address filtering
- Wireless STA
- Unauthorized AP detection (with NMS)
Management:
- Distribution: Master (Controller mode): can manage 16 EDIMAX PrimeAX +1 AP - Slave (Managed AP mode): managed by EDIMAX PrimeAX 1-2-3 Master AP and APC500
- HTTP / HTTPS configuration - SNMP v1, v2c, v3 - CLI (Telnet, SSH)
- Integrated RADIUS Server
- Automatic channel
- Private MIB
Package Contents:

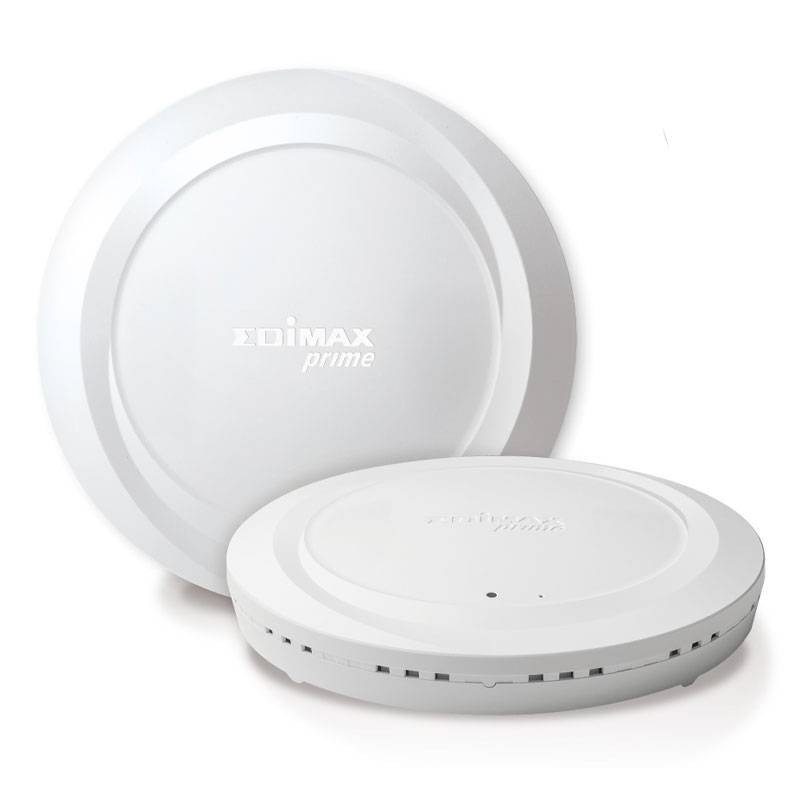

- 2 PrimeAX 1-2-3 AX1800 ceiling mount PoE access points (master and slave)
- 2 ceiling and T-rail mounting bracket kits
- 2 Ethernet cables
- Quick installation guide
There are no reviews
Data sheet
- Type:
- PoE Access Point
