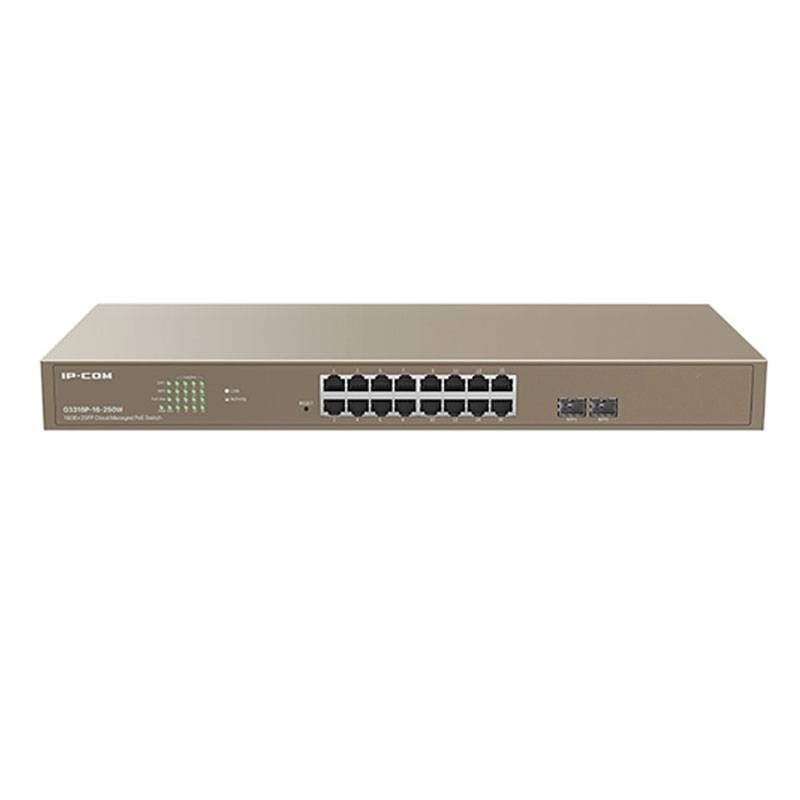

16GE+2SFP IP-Com PoE 16 Port 10/100/1000 Mbps Cloud Switch G3318P-16-250W
67V G3318P-16-250W
6932392835158
Tenda 16-Port Gigabit PoE Cloud Switch + 2 SFP with cloud management designed for advanced enterprise networks, offers connectivity, power and remote management ideal for applications such as video surveillance and wireless networks in SMEs, schools, hotels and parks, with the following features:
-
16 Gigabit PoE ports: Power and data over a single cable, up to 30 W per port
-
Total PoE power: 230 W to support PoE devices such as IP cameras and access points
-
2 SFP uplink ports: Perfect for long-distance connections and cascading links
-
MAC address table: 8K with automatic learning
-
Power capacity: Up to 250 meters for remote devices
-
Advanced features: VLAN, QoS, link aggregation, DHCP Snooping, MAC address association
€193.60
€193.60
Tax included
Tax included
Items Available: 7
: 4
16GE+2SFP IP-Com PoE cloud switch 16 ports 10/100/1000 Mbps
G3318P-16-250W is an intelligent PoE switch for cloud management designed by IP-COM. It provides 16 gigabit PoE ports and 2 SFP ports, can intelligently identify powered devices. The maximum output power of a single port is 30 W and the power of the whole switch is 250 W. It supports IMS Cloud, Web UI and IP-COM IMS app management, making network maintenance more efficient, after-sales costs lower and management and configuration easier. It is an ideal choice for video surveillance and wireless networking in scenarios such as small and medium-sized businesses, hotels, schools and parks.
Advanced cloud management
The switch is manageable via ProFi Cloud and ProFi app, enabling remote configurations, monitoring and maintenance. With batch management via QR codes, deploying multiple devices is quick and easy, reducing operational and maintenance costs.
Advanced networking features:
-
QVLAN: Allows isolation of networks for enhanced security
-
Link aggregation: Increases bandwidth for crucial connections
-
QoS: Ensures traffic prioritization for sensitive applications such as VoIP or video
-
MAC association: Improves network access control
-
Extended distance: Stable connections up to 250 meters
Hardware Specifications
| Feature | Detail |
|---|---|
| LED Indicators | 1 Link/Ack LED indicator for each port 1 PoE Max LED indicator for each device 1 Power LED indicator for each device 1 SYS LED indicator for each device |
| Ports | 16 Ethernet 10/100/1000 Base-T (data/power) ports 2 SFP 100/1000 Base-X ports |
| Port lightning protection | 6KV |
| Switching capacity | 36 Gbps |
| Packet forwarding rate | 26.8 Mpps |
| MAC address table | 8K |
| Input voltage | 100-240 V - 50/60 Hz |
| Dimensions | 440x178.8x44 mm (W-D-A) |
| Power consumption of the entire switch | < 250 W |
| Maximum PoE output power | 230 W |
| Operating temperature | 0°C - 45? |
| Storage temperature | -40°C - 70°C |
| Operating humidity | (10% - 90%) RH, non-condensing |
| Storage humidity | (5% - 90%) RH, non-condensing |
Software specifications
| Feature | Detail |
|---|---|
| PoE power management | Port PoE configuration and supported power priority configuration Supported PoE over-temperature protection Intelligent graphical management and detection of supported PoE powered devices |
| Security features | MAC address association supported |
| Uploading and updating | HTTP update supported Configuration import and export supported |
| Cloud management | Supports configuration distribution from IMS cloud platform Supports log reporting and error detection Supports remote maintenance: reboot, backup, update |
| Local display management | Supports router, switch, AP, IP camera detection Supports automatic topology generation Supports online/offline status detection for devices Supports remote IP camera reboot |
There are no reviews
Data sheet
- Type: Network Switch
- System: IP
- Doors: 16+2
