6GE IP-Com PoE 4-Port 10/100/1000 Mbps Cloud Switch 58W G2206P-4-63W


67V G2206P-4-63W 6932392835318

Tenda PoE Cloud Switch, a versatile and intelligent network management solution designed to simplify administration with cloud management via ProFi Cloud and ProFi app. Ideal for applications in security, video surveillance and enterprise networks, with the following features:

  • 4 Gigabit PoE ports power up to 30 W per port

  • Total PoE power: 58 watts

  • 2 Gigabit uplink ports

  • Network extension up to 250 meters

  • Switching fabric: 12 Gbps for non-blocking line-speed forwarding

  • MAC address table: 2K with automatic learning

Do you have questions about this product or did you not find what you were looking for? Ask us!
6GE IP-Com PoE 4-Port 10/100/1000 Mbps Cloud Switch 58W G2206P-4-63W
€61.14
€61.14

€61.14
Tax included

€61.14

Buy it within and receive it from Wednesday, 19 March
Two-year warranty
Easy return within 14 days

6GE IP-Com PoE cloud switch 4 ports 10/100/1000 Mbps 58W

G2206P-4-63W is an intelligent cloud-managed PoE switch designed independently by IP-COM. The switch provides 4 standard gigabit PoE ports with a maximum PoE output power of 58 W.

Cloud management

The switch can be managed either through the IP-COM ProFi Cloud web user interface or through the ProFi app. QR codes can be scanned on the switches to batch add them for cloud management. The cloud platform will automatically generate a visible network topology to allow you to view the operational status of each device in a project anytime, anywhere.

PoE power supply and remote reboot

Compliant with IEEE 802.3af/at standards, the 4 PoE ports provide power up to 30 W per port, with a total power of 58 W. The remote reboot function via app solves any problems of camera crashes in security scenarios.

Reliable performance and versatility

The Tenda G2206P-4-63W supports a wide range of advanced features, including:

  • Network extension: Stable connection up to 250 meters

  • QVLAN and transparent VLAN transmission: For simplified network management

  • Loop guard and MAC association: For enhanced security and control

  • Traffic statistics: For real-time monitoring of network performance


Hardware specifications

FeatureDetail
LED Indicators

One Link/Act LED indicator for each port
One PWR LED indicator for each device
One SYS LED indicator for each device

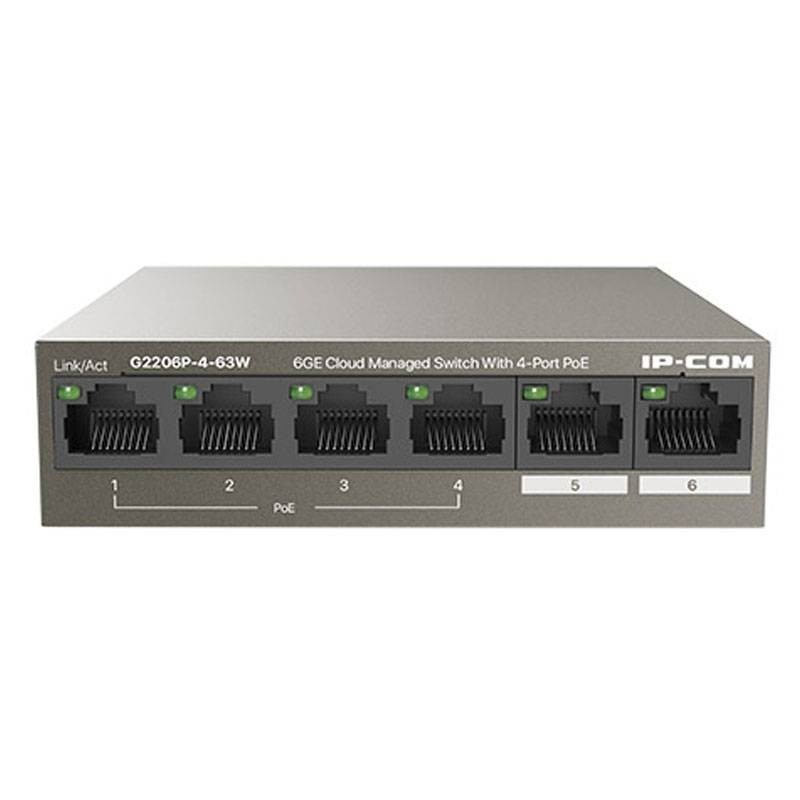

Fixed ports 4 Ethernet 10/100/1000 Base-T ports (PoE and data)
2 Ethernet 100/1000 Base-T ports (data)
Lightning protection 6 kV
Switching capacity 12 Gbps
Packet forwarding rate 8.9 Mpps
Input voltage 100 - 240 V AC 50/60 Hz
Dimensions 100x100x26 mm (W-D-A)
Total power consumption < 63 W
Maximum PoE output 58 W
Operating temperature 0/+45 degrees
Storage temperature -40/+70 degrees
Operating humidity 10/90% RH, non-condensing
Storage humidity 5/90% RH, non-condensing


Software Features

FeatureDetail
PoE Management Supports dynamic display of PoE power consumption and remaining PoE power
Supports PoE ports on and off
Security Features Supports whitelist binding of MAC addresses, ports and VLANs
Supports port isolation
Port properties Supports port flow control
Supports port isolation
Supports N:1 port mirroring
Supports port statistics of received and transmitted packets, conflicting packets, and CRC error packets
Rate Limiting Supports inbound and outbound speed limits on ports
Loop Guard Supports loop detection and guarding on each port
Storm control Supports storm control on ports
Management and Maintenance Supports ProFi app management
Supports ProFi Cloud web user interface management
Supports local web user interface management, Supports ping testing

Data sheet

Type:
Network Switch
System:
IP
Doors:
4+2
