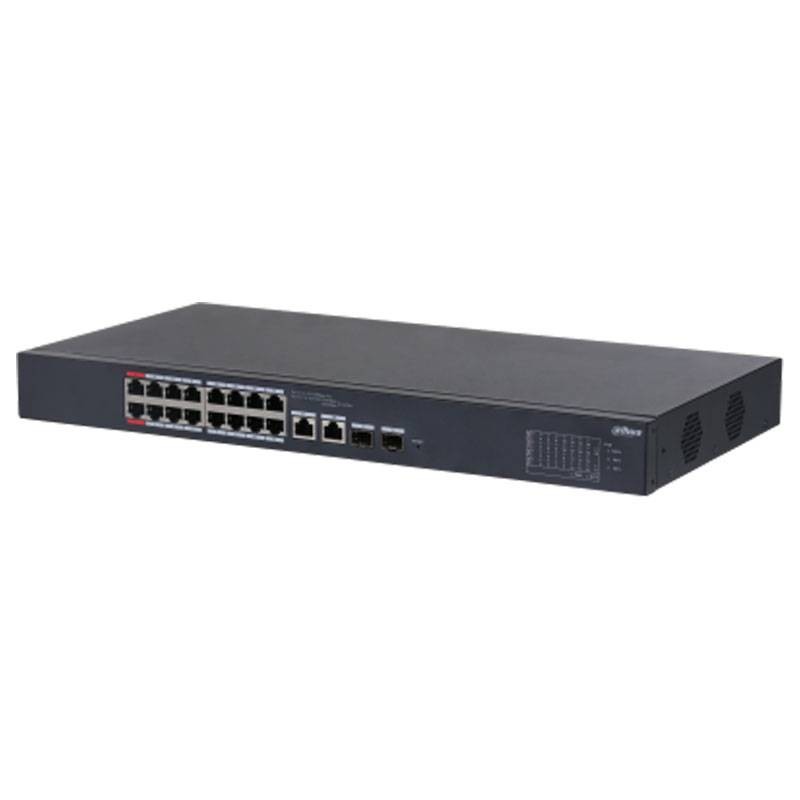

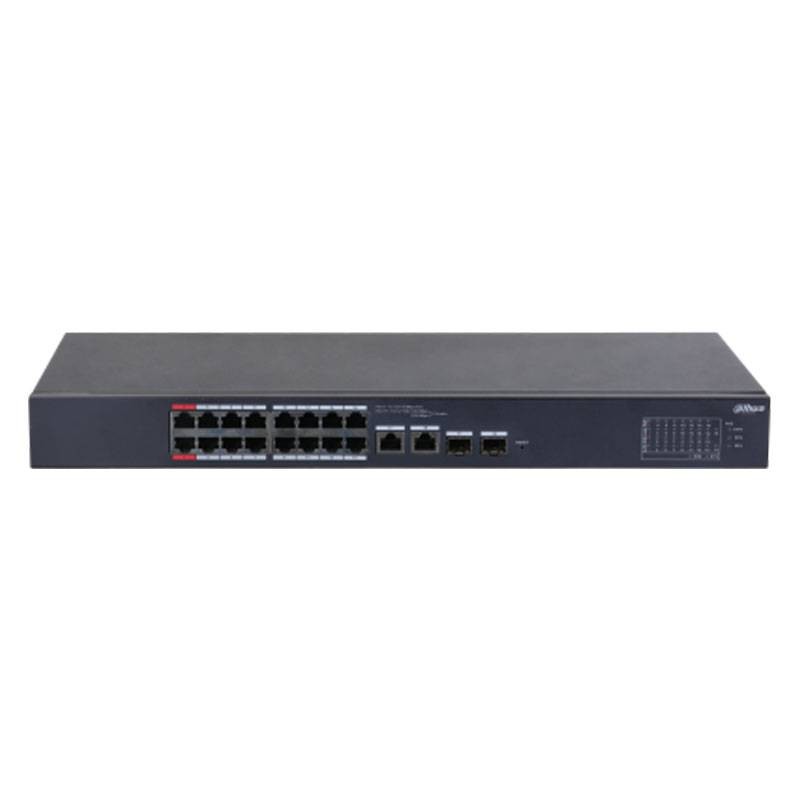

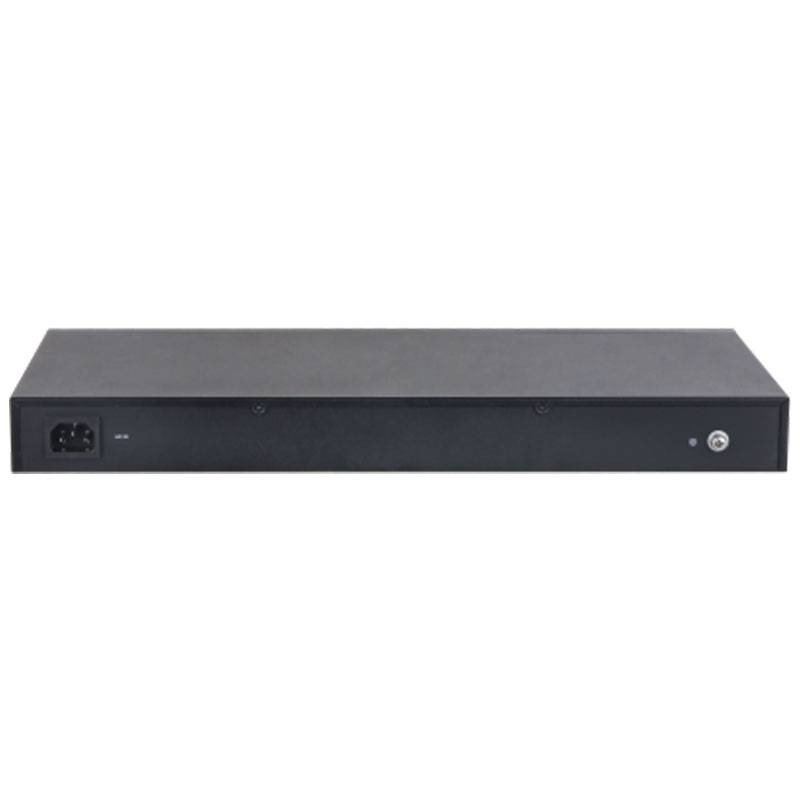

Dahua 16-port Poe 154W 10/100/1000Mbps Switch M-0032449

Dahua
DAH M-0032449 6923172571236

Dahua CS4218-16ET-135 16 Port Poe 154W 10/100/1000Mbps Switch:



  • Meets the requirements of IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z standards
  • Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE and IEEE802.3bt power standards
  • Manages PoE power consumption and PoE on/off. Supports intelligent PoE
  • A wide operating temperature range and an all-metal, fully enclosed, dust-resistant enclosure.
Do you have questions about this product or did you not find what you were looking for? Ask us!

Dahua 16-port Poe 154W 10/100/1000Mbps Switch M-0032449

€205.81
€205.81

Dahua 16-port Poe 154W 10/100/1000Mbps Switch M-0032449

€205.81
Tax included
Items Available: 4
Further availability of the manufacturer

Dahua 16-port Poe 154W 10/100/1000Mbps Switch M-0032449

€205.81

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Hardware:

  • Power adapter included YES
  • PoE YES
  • Ethernet port 16
  • Ethernet port speed 10/100Mbps
  • Optical port speed 1000Mbps
  • Ethernet port uplink speed 10/100/1000Mbps
  • Optical port uplink speed 1 Gbps
  • Description of function slots Port 1-16: 16 × RJ-45 10/100 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (combo); Port 17-18: 2 × SFP 1000 Mbps (combo)
  • Reset button 1
  • Power supply Integrated power supply: 100-240 VDC, 47-63 Hz, max 3 A
  • Operating temperature 10 °C to +55 °C (+14 °F to +131 °F)
  • Operating humidity 5%95% (RH), non-condensing
  • Storage temperature 40 °C to +70 °C (40 °F to +158 °F)
  • Storage humidity 5%95% (RH), non-condensing
  • Power consumption Idle: ?6 W; Full load: 154 W



Performance:

  • Layer Layer 2
  • Management type YES
  • Intelligently managed switch YES
  • MTBF 87.10 years
  • Switching capacity 7.2 Gbps
  • Packet forwarding speed 5.36 Mpps
  • Packet buffer size 4 Mbit
  • Huge frame 15K bytes
  • MAC table size 8 MILA
  • VLAN number 32
  • Communication standard IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z



Feature:

  • IEEE802.3af PoE protocol; IEEE802.3at; Hi-PoE; IEEE802.3bt
  • PoE power supply Port 1-2 90 W, Port 3-16 30 W, total ? 135 W
  • PoE power consumption management YES
  • PoE pin assignment 1,2,4,5?V+?,3,6,7,8?V-)
  • Long-distance PoE transmission YES
  • Port-based VLAN VLAN function
  • IEEE 802.3x flow control YES
  • DHCP function DHCP client
  • Equipment management Web management; App management



General:

  • Static protection Air discharge: 8 kV; Contact discharge: 6 kV
  • Lighting protection Common mode: 4 kV; Differential mode: 2 kV
  • Net weight 2.23 kg (4.91 pounds)
  • Gross weight 2.88 kg (6.34 lb)
  • Product dimensions 440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73") (L × W × H)
  • Packaging dimensions 540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L × W × H)
  • Enclosure Material Sheet metal
  • Installation Desktop mounting; rack mounting
