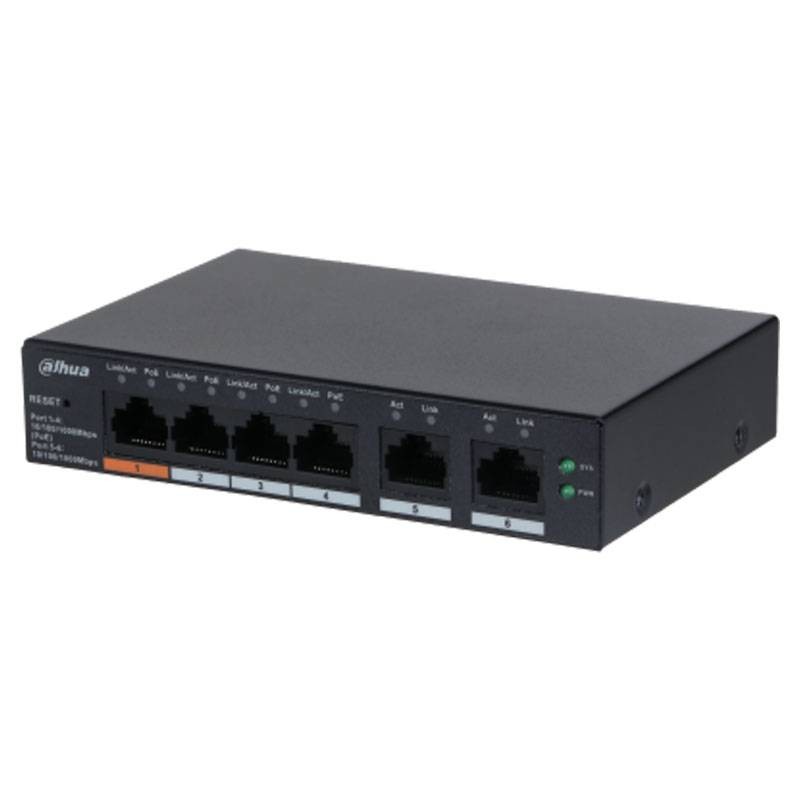

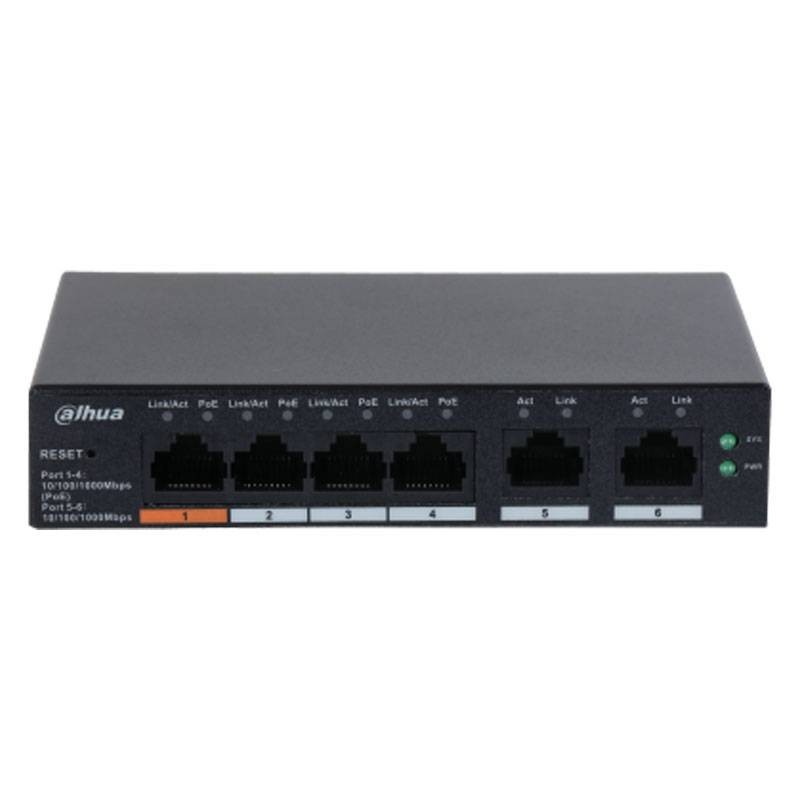

Dahua 4 Port Poe 60W 10/100/1000Mbps Gigabit Switch M-0032445

Dahua
DAH M-0032445 6923172571144

Dahua CS4006-4GT-60 4-port Poe 60W 10/100/1000Mbps Gigabit Switch:



  • Meets the requirements of IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab standards
  • Meets the requirements of IEEE802.3af, IEEE802.3at and Hi-PoE power standards
  • Manages PoE power consumption and PoE on/off. Supports intelligent PoE
  • A wide operating temperature range and an all-metal, fully enclosed, dust-resistant enclosure.
Do you have questions about this product or did you not find what you were looking for? Ask us!

Dahua 4 Port Poe 60W 10/100/1000Mbps Gigabit Switch M-0032445

€70.01
€70.01

Dahua 4 Port Poe 60W 10/100/1000Mbps Gigabit Switch M-0032445

€70.01
Tax included
Items Available: 4
Further availability of the manufacturer

Dahua 4 Port Poe 60W 10/100/1000Mbps Gigabit Switch M-0032445

€70.01

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Hardware:

  • Power adapter included YES
  • PoE YES
  • Ethernet port 4
  • Ethernet port speed 10/100/1000Mbps
  • Ethernet port uplink speed 10/100/1000Mbps
  • Description of function slots Ports 1-4: 4 × RJ-45 10/100/1000 Mbit/s (PoE); Port 5-6: 2 × RJ-45 10/100/1000 Mbit/s (uplink)
  • Reset button 1
  • Power supply External power supply: 53 VDC, 1.226 A
  • Operating temperature 10 °C to +55 °C (+14 °F to +131 °F)
  • Operating humidity 5%95% (RH), non-condensing
  • Storage temperature 40 °C to +70 °C (40 °F to +158 °F)
  • Storage humidity 5%95% (RH), non-condensing
  • Power consumption Idle: ?2.5 W; Full load: 65 W



Performance:

  • Layer Layer 2
  • Management type YES
  • Intelligently managed switch YES
  • MTBF 222.36 years
  • Switching capacity 12 Gbps
  • Packet forwarding speed 8.93 Mpps
  • Packet buffer size 4 Mbit
  • Huge frame 15K bytes
  • MAC table size 8 MILA
  • VLAN number 32
  • Communication standard IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab



Feature:

  • IEEE802.3af PoE protocol; IEEE802.3at; Hi-PoE
  • PoE power supply Port 1 ? 60 W, Port 2-4 ? 30 W, total ? 60 W
  • PoE power consumption management YES
  • PoE pin assignment ,2,4,5?V+?,3,6,7,8?V-)
  • Long-distance PoE transmission YES
  • Spanning Tree STP/RSTP Protocol
  • Port-based VLAN VLAN function
  • IEEE 802.3x Flow Control YES
  • DHCP Function DHCP client
  • Equipment management Web management; App management



General:

  • Static protection Air discharge: 8 kV; Contact discharge: 6 kV
  • Lighting protection Common mode: 4 kV; Differential mode: 2 kV
  • Net weight 0.29 kg (0.64 lb.)
  • Gross weight 0.94 kg (2.07 lb)
  • Product dimensions 130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × W × H)
  • Packaging dimensions 265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") (L × W × H)
  • Enclosure Material Sheet metal
  • Installation Desktop Mount; Wall Mount

There are no reviews

Data sheet

Type:
PoE Network Switches
System:
IP
Doors:
4
